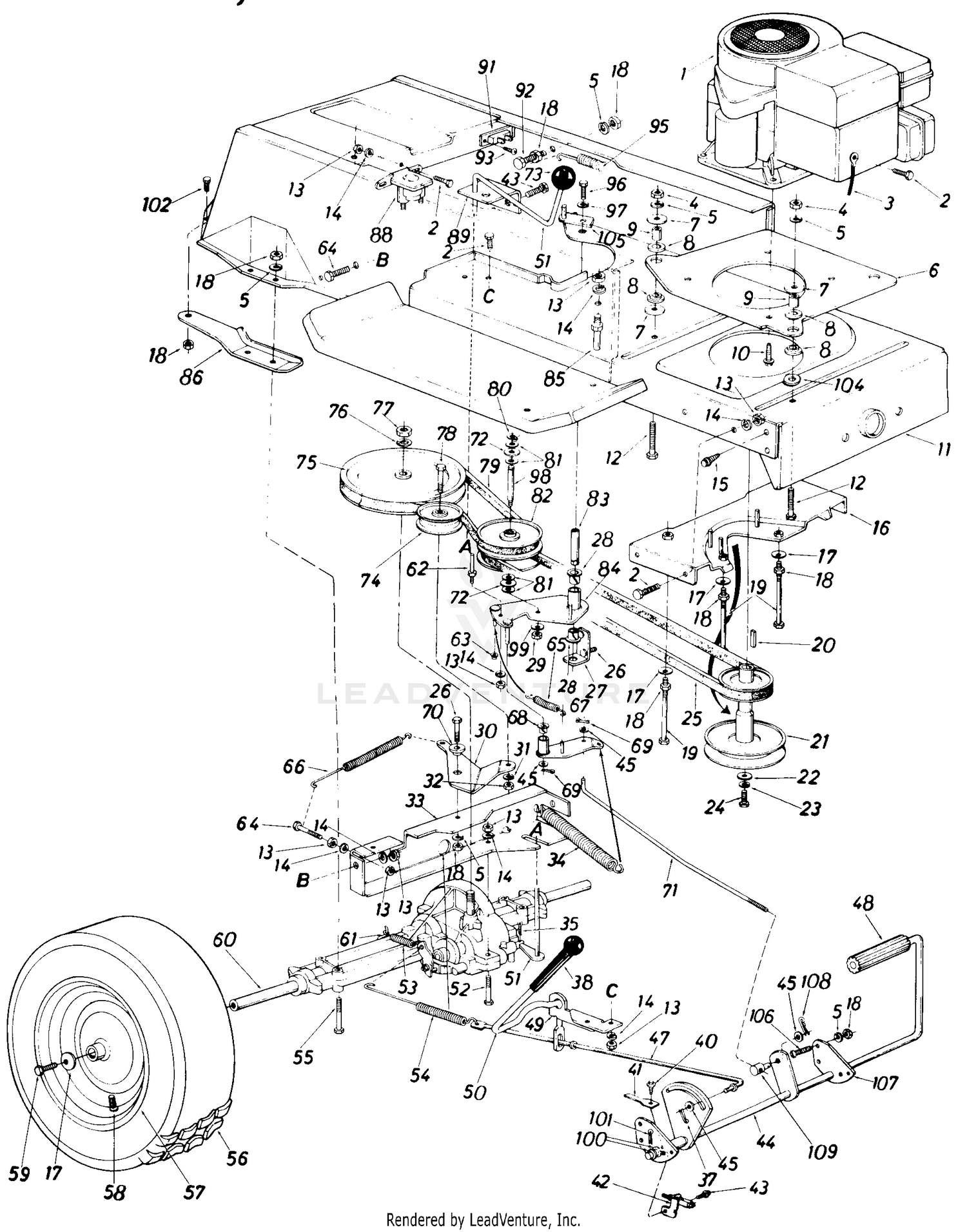

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Engine |
| 2 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 3 |
725-0976 |
WIRE Not Available Price: |
| 4 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 5 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 6 |
14791 |
ENGINE MOUNTING PLATE Not Available Price: |
| 7 |
736-0343 |
Fl-Wash. .320" I.D. x 1.25" Price: $3.90 |
| 8 |
722-0153 |
Engine Mounting Grommet Price: $2.93 |
| 9 |
950-0539 |
SPACER Not Available This part replaces 750-0539. Price: |
| 10 |
710-0502A |
Hx Wash Hd. Scr. 3/8-16 x 1.25" This part replaces 710-0502. Price: $5.71 |
| 11 |
15930 |
LOWER FRAME Not Available Price: |
| 12 |
710-0672 |
Hex Bolt 5/16-24 x 1.25" Lg. This part replaces 710-0158. Price: $3.85 |
| 13 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 14 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 15 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16" x.75" Lg. Price: $3.82 |
| 16 |
15898 |
Belt Guard Brkt. Ass'y. Price: Call Us |
| 17 |
736-0242 |
Bell-Wash. .345" I.D. x .88" Price: $3.75 |
| 18 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 19 |
710-0190 |
Hex Bolt 5l16-18 x 4.00" Price: $7.01 |
| 20 |
914-0114 |
Sq. Key 1/4" x 1/4" x 2.00" Not Available This part replaces 714-0114. Price: |
| 21 |
756-0428 |
PULLEY Not Available Price: |
| 22 |
736-0322 |
Fl-Wash. 7116" I.D. x 1.25" Price: $8.42 |
| 23 |
736-0171 |
L-Wash. 7116" I.D. Price: $3.86 |
| 24 |
710-0757 |
Hex Bolt 7/16-20 x 1.50" Lg. Price: $8.83 |
| 25 |
954-0280A |
Variable Speed Belt This part replaces 754-0280. Price: $42.39 |
| 26 |
710-3039 |
SCREW 5/16-18 x .50 GR5 Not Available This part replaces 710-0621. Price: |
| 27 |
15890 |
BEARING SHAFT BRACKET Not Available Price: |
| 28 |
741-0591 |
Flanged Brg. 5/8" I.D. This part replaces 741-0295. Price: $4.02 |
| 29 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 30 |
15891C-0637 |
IDLER BRACKET Not Available This part replaces 15891. Price: |
| 31 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 32 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 33 |
15945E-0637 |
BRACKET-TRANS SUP Not Available This part replaces 15945. Price: |
| 34 |
732-0459C |
Ext. Spring .94" O.D. x 6.7 This part replaces 732-0459. Price: $16.05 |
| 35 |
714-0115 |
Cotter Pin 1/8" Dia. x 1.0" Price: $3.48 |
| 37 |
714-0111 |
Cotter Pin 3/32" Dia. x 1.0" Price: $4.20 |
| 38 |
720-0143 |
GRIP Not Available Price: |
| 40 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 41 |
732-0435 |
ACTUATOR-SWITCH Not Available Price: |
| 42 |
925-0268 |
SWITCH Not Available This part replaces 725-0268. Price: |
| 43 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 44 |
16191 |
Clutch & Brake Pedal Ass'y. Price: Call Us |
| 45 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 47 |
747-0512 |
Brake Rod Price: Call Us |
| 49 |
15889 |
BRAKE LEVER BRACKET Not Available Price: |
| 50 |
15888 |
Hill Holder Brake Handle Price: Call Us |
| 51 |
15838 |
Shift Lever Ass'y. Price: Call Us |
| 52 |
710-0559 |
SCREW 1/4-28 x 1.75 GR5 Not Available Price: |
| 53 |
932-0264 |
Ext. Spring .38n O.D. x 2.5" This part replaces 732-0264. Price: $4.40 |
| 54 |
932-0413 |
Ext. Spring .59n O.D. x 7 08" Not Available This part replaces 732-0413. Price: |
| 55 |
710-0378 |
Hex Bolt 5/16-18 x 2.50" Price: $4.09 |
| 56 |
N/A |
Wheel Ass'y. Comp. |
| 57 |
N/A |
Wheel Rim Only |
| 59 |
710-0627 |
Hex Bolt 5/16-24 x .75" Lg.* Price: $3.68 |
| 60 |
717-0750 |
KIT-TRANSAXLE 1S Not Available Price: |
| 61 |
932-0722A |
Brake Return Spring Anchor This part replaces 732-0454. Price: $11.56 |
| 62 |
911-1000 |
Belt Keeper, .25 DIA X 3.0 This part replaces 711-0768. Price: $9.62 |
| 63 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 64 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 65 |
732-0387 |
EXTENSION SPRING Not Available Price: |
| 66 |
932-0384 |
EXTENSION SPRING Not Available This part replaces 732-0384. Price: |
| 67 |
16352 |
VARIABL E SPEED TORQUE BRACKET. ASS'Y. Not Available Price: |
| 68 |
741-0419 |
FLANGE BEARING Not Available Price: |
| 69 |
714-0507 |
Cotter Pin 3132" Dia. Price: $3.93 |
| 70 |
748-0234 |
Shoulder Spacer .500" Dia. x.27" Lg. Price: $3.86 |
| 71 |
747-0518 |
LINK-SPEED CONTROL Not Available Price: |
| 72 |
941-0405 |
THRUST BEARING Not Available This part replaces 741-0405. Price: |
| 73 |
920-0232 |
Knob This part replaces 720-0165. Price: $9.11 |
| 74 |
756-0643A |
Fl-ldler Pulley 3.25" x 1.0" This part replaces 756-0437. Price: $35.98 |
| 75 |
756-0374 |
PULLEY Not Available Price: |
| 76 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 77 |
712-3029 |
NUT This part replaces 712-0922. Price: $6.01 |
| 78 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 79 |
954-0281 |
Variable Speed Belt This part replaces 754-0281. Price: $37.74 |
| 80 |
916-0114 |
Snap Ring .56" Dia. This part replaces 716-0114. Price: $5.99 |
| 81 |
736-0355 |
Fl-Wash. Not Available Price: |
| 82 |
917-0800A |
Variable Speed Pulley Ass'y. 5" O.D. This part replaces 717-0800. Price: $215.56 |
| 83 |
711-0766 |
BEARING SHAFT Not Available Price: |
| 84 |
16354 |
BRACKET ASSEMBLY-VAR SP Not Available Price: |
| 85 |
711-0474 |
Belt Guard Pin 1/4" Dia. x 1.68" Lg. Price: Call Us |
| 86 |
14770 |
BRACKET-AXLE SUP-R Not Available Price: |
| 88 |
925-0771 |
Solenoid This part replaces 725-0771. Price: $32.55 |
| 89 |
16031 |
BRACKET-SH Not Available Price: |
| 91 |
753-0685 |
CIRCUIT BREAKER Not Available This part replaces 725-0459. Price: |
| 92 |
710-0528 |
Hex Bolt 5/16-18 x 1.25" Lg. Price: $3.90 |
| 93 |
710-0351 |
Truss Hd. Phil. Scr. #10 x 1/2" Lg Price: $3.90 |
| 95 |
932-0307A |
EXTENSION SPRING Not Available This part replaces 732-0307. Price: |
| 96 |
710-0180 |
HEX SCREW 3/8-24 x .75 GR5 Not Available Price: |
| 97 |
736-0105 |
Bell-Wash. .38" I.D. x .88" Price: $3.96 |
| 98 |
938-0569 |
Shaft 56" Dia. x 3.875" Lg. This part replaces 738-0569. Price: $29.38 |
| 99 |
736-0331 |
Bell-Wash. .39" I.D. x 1.12" Price: $3.50 |
| 100 |
936-0256 |
Fl-Wash. This part replaces 736-0256. Price: $6.24 |
| 101 |
714-0470 |
Cotter Pin Price: $3.90 |
| 102 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 104 |
736-0362 |
Fl-Wash. .32" I.D. x 1.25" Price: $3.93 |
| 105 |
16067 |
BELT GUARD Not Available Price: |
| 106 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 107 |
15835 |
CHAIN CASE ASS'Y. COMP. Not Available Price: |
| 108 |
714-0104 |
Hairpin Cotter 118" Dia. Price: $3.90 |
