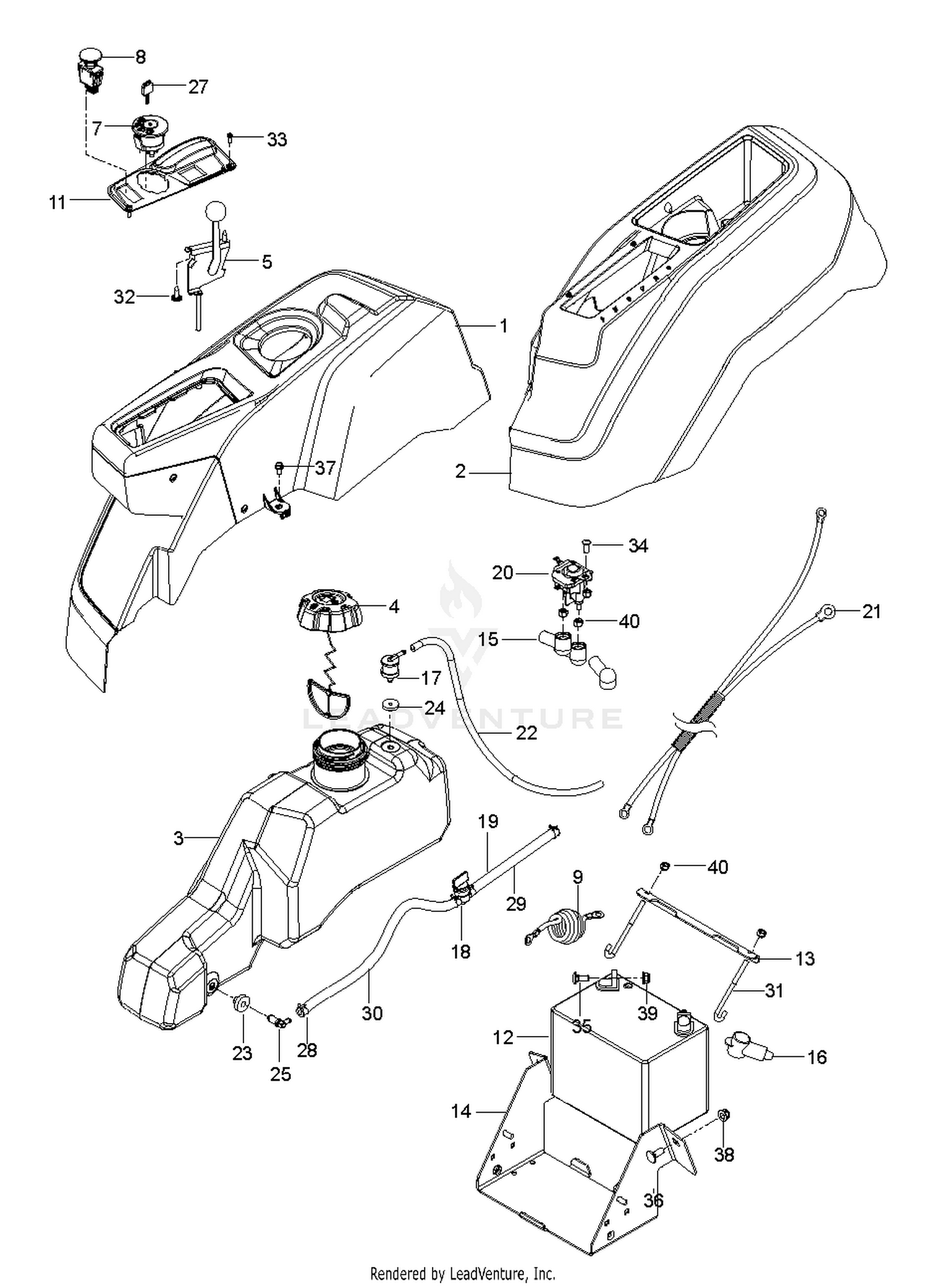

| Ref | Part Number | Description |
|---|
| 1 |
598602602 |
CONSOLE.ASSY.RZ.HUSQ.RH This part replaces 585522802. Price: $89.99 |
| 2 |
586621202 |
CONSOLE ASM Price: $79.99 |
| 5 |
585974901 |
CABLE.THROTTLE.20" Price: $27.99 |
| 7 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 8 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 582107602. Price: $24.99 |
| 9 |
586108201 |
CABLE BATTERY POS RZ Price: $8.99 |
| 11 |
585522702 |
Panel Controls Price: $12.99 |
| 12 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144925. Price: $149.99 |
| 13 |
510030001 |
BRACKET, BATTERY MOUNT This part replaces 510030003. Price: $44.99 |
| 14 |
582609602 |
BOX.PNT.BATTERY.RZ.EDIP Price: $32.99 |
| 15 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 17 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 18 |
539916325 |
FUEL VALVE Price: $9.99 |
| 19 |
586123904 |
FUEL.HOSE.SHUT.OFF.ASM.10".3" Price: $11.99 |
| 20 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 21 |
587198601 |
HARNESS.BTTRY.CABLE.RZ.REFRESH Price: $22.99 |
| 22 |
587044518 |
HOSE.3/16".VAPOR.LINE.18"LGTH Price: $2.99 |
| 23 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 24 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 532437492. Price: $3.99 |
| 25 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 27 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 28 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 29 |
587044803 |
HOSE.1/4".LOW.PERM.FUEL.LN.3" Price: $2.99 |
| 30 |
587044810 |
HOSE.1/4".LOW.PERM.FUEL.LN.10" Price: $9.99 |
| 31 |
588839401 |
HOOK.J.BATTERY Price: $2.99 |
| 32 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 33 |
545227101 |
SCREW 6-19X.437 Price: $2.99 |
| 34 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 35 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 36 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 37 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 38 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 39 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 40 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
