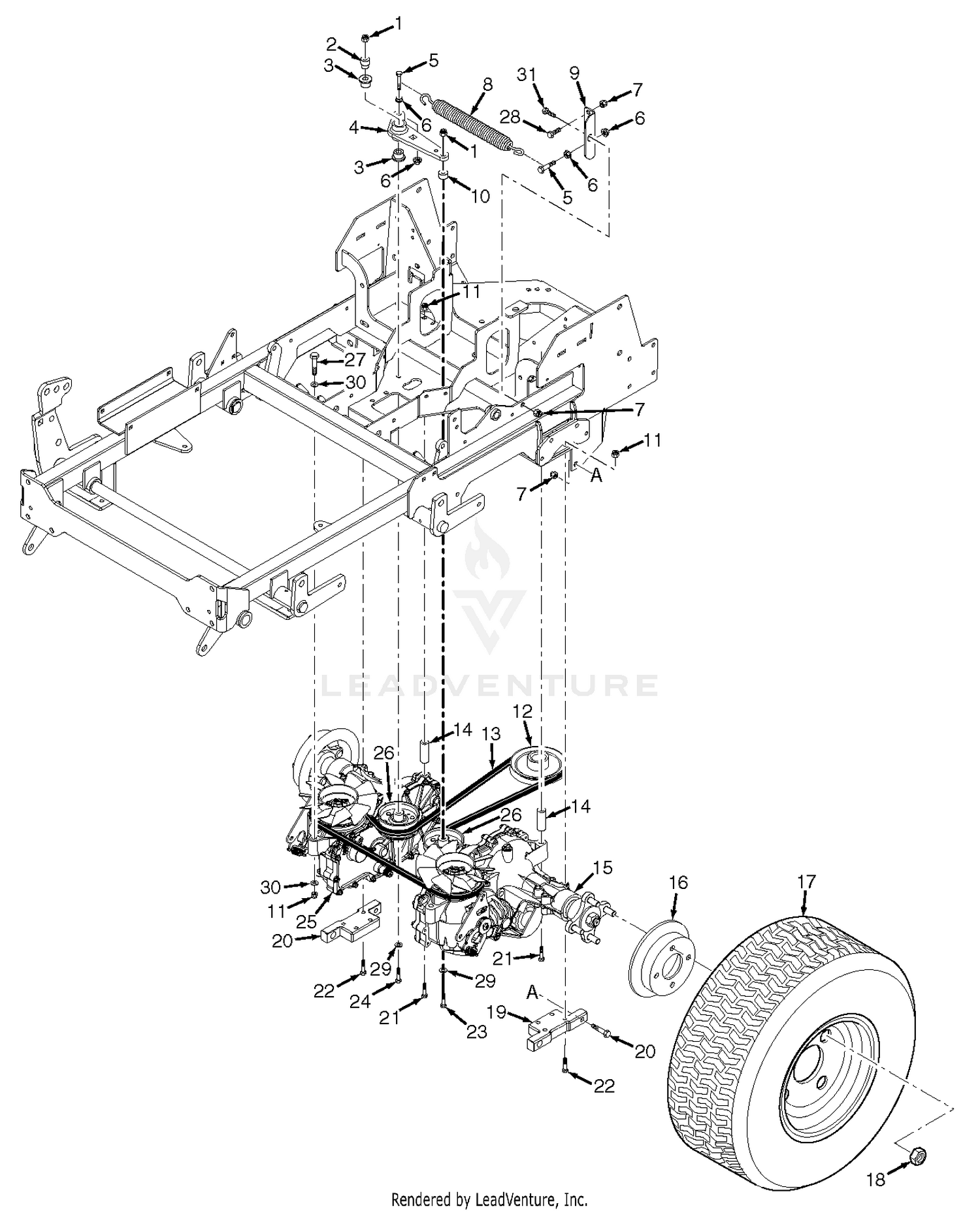

| Ref | Part Number | Description |
|---|
| 1 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 2 |
43715 |
Shaft, Pivot Idler Arm Price: Call Us |
| 3 |
483453-04 |
Bearing Price: Call Us |
| 5 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Price: Call Us |
| 6 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 7 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 8 |
484560 |
Spring, Pump Drive Price: Call Us |
| 9 |
425907 |
Anchor Bracket, Pump Spring Price: Call Us |
| 10 |
43572 |
Spacer Price: Call Us |
| 11 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 12 |
484373 |
Pulley, 5" OD - 1.125 Bore (SPZ61H) Price: Call Us |
| 13 |
484372 |
Belt, Pump Drive Price: Call Us |
| 14 |
43857 |
Spacer, Axle Price: Call Us |
| 15 |
484454 |
Transaxle, LH Price: Call Us |
| 16 |
43853 |
Spacer, Axle Price: Call Us |
| 17 |
481659 |
Rim (48) Price: Call Us |
| 17 |
482414 |
Rim w/Valve Stem, (Scag Gold) - SPZ61H Price: Call Us |
| 17 |
484465 |
Wheel Assembly, 23 x 9.5-12 (52) Price: Call Us |
| 17 |
484466 |
Tire, 23 x 9.5-12 Price: Call Us |
| 17 |
484558 |
Wheel Assembly, 23 x 9.5-12 (48) Price: Call Us |
| 18 |
04028-02 |
Wheel Nut, 1/2-20 Price: Call Us |
| 19 |
484480 |
Mount, Pusharm Price: Call Us |
| 20 |
04001-142 |
Bolt, Hex Head 5/8-11 x 2-1/2" Price: Call Us |
| 21 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 22 |
04001-76 |
Bolt, Hex Head 5/16-18 x 4" Price: Call Us |
| 23 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 24 |
04001-152 |
Bolt, Hex Head 3/8-16 x 4-1/4" Price: Call Us |
| 25 |
484455 |
Transaxle, RH Price: Call Us |
| 26 |
486045 |
Pulley, 3-1/2" Dia. This part replaces 483638. Price: Call Us |
| 27 |
04001-39 |
Bolt, Hex Head 5/16-18 x 2-1/4" Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 29 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 30 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
