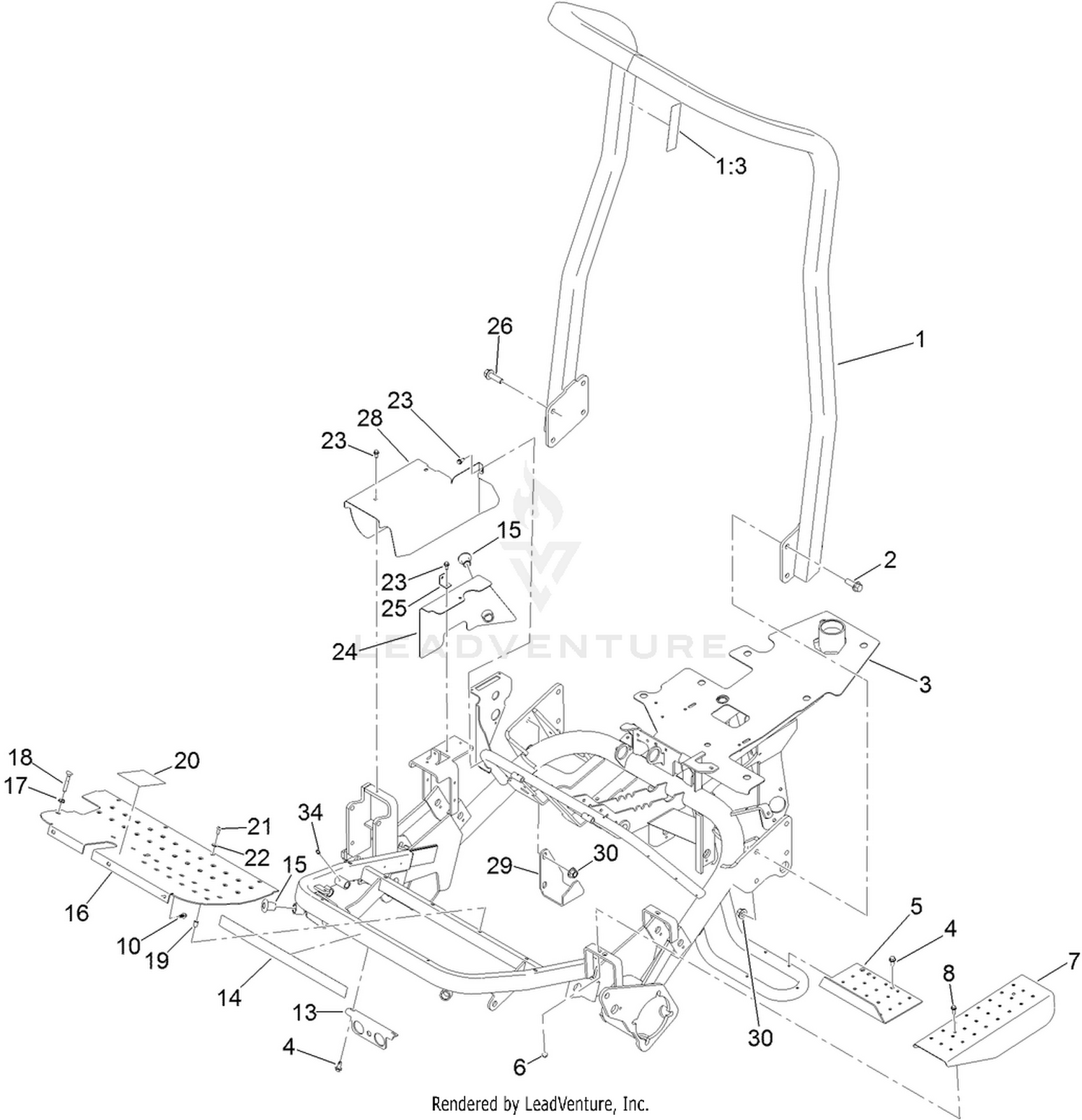

ROPS and Frame Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-2308 | ROPS ASM Price: $656.85 |
| 2 | 130-6482 | SCREW-HHF Price: $2.68 |
| 3 | 127-6143-01 | FRAME Price: $4,000.70 |
| 4 | 32104-32 | SCREW-HWH Price: $1.99 |
| 5 | 130-0103-01 | STEP Price: $43.21 |
| 6 | 32128-33 | NUT-HF Price: $0.25 |
| 7 | 83-0200-01 | PLATE-COVER, LH Price: $46.92 |
| 8 | 115-5103 | SCREW-HHF Price: $0.34 |
| 10 | 99-6810 | SCREW-HHF Price: $3.09 |
| 13 | 107-2552-01 | BRACKET-BULKHEAD Price: $21.40 |
| 14 | 115-5216 | DECAL Price: $18.44 |
| 15 | 83-1700 | BUSHING-FLANGE Price: $7.80 |
| 16 | 127-2225-01 | PLATE-FOOTREST Price: $91.81 |
| 17 | 32128-20 | NUT-HF Price: $0.99 |
| 18 | 17-9426 | SCREW-HANDLE Price: $3.49 |
| 19 | 32148-6 | NUT-CLINCH Price: $1.24 |
| 20 | 93-8062 | DECAL-BRAKE, PARKING Price: $4.95 |
| 21 | 3274-31 | SCREW-HSBH Price: $0.89 |
| 22 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 23 | 32144-10 | SCREW-HWH Price: $4.29 |
| 24 | 105-8282-01 | SHIELD-SIDE Price: $77.28 |
| 25 | 120-3172 | BRACKET Price: $12.11 |
| 26 | 130-6481 | SCREW-HHF Price: $2.65 |
| 28 | 138-8507-01 | COVER-RIGHT Price: $71.51 |
| 29 | 105-8263-01 | BRACKET-ROPS Price: $37.76 |
| 30 | 99-5107 | NUT-LOCK Price: $1.77 |
