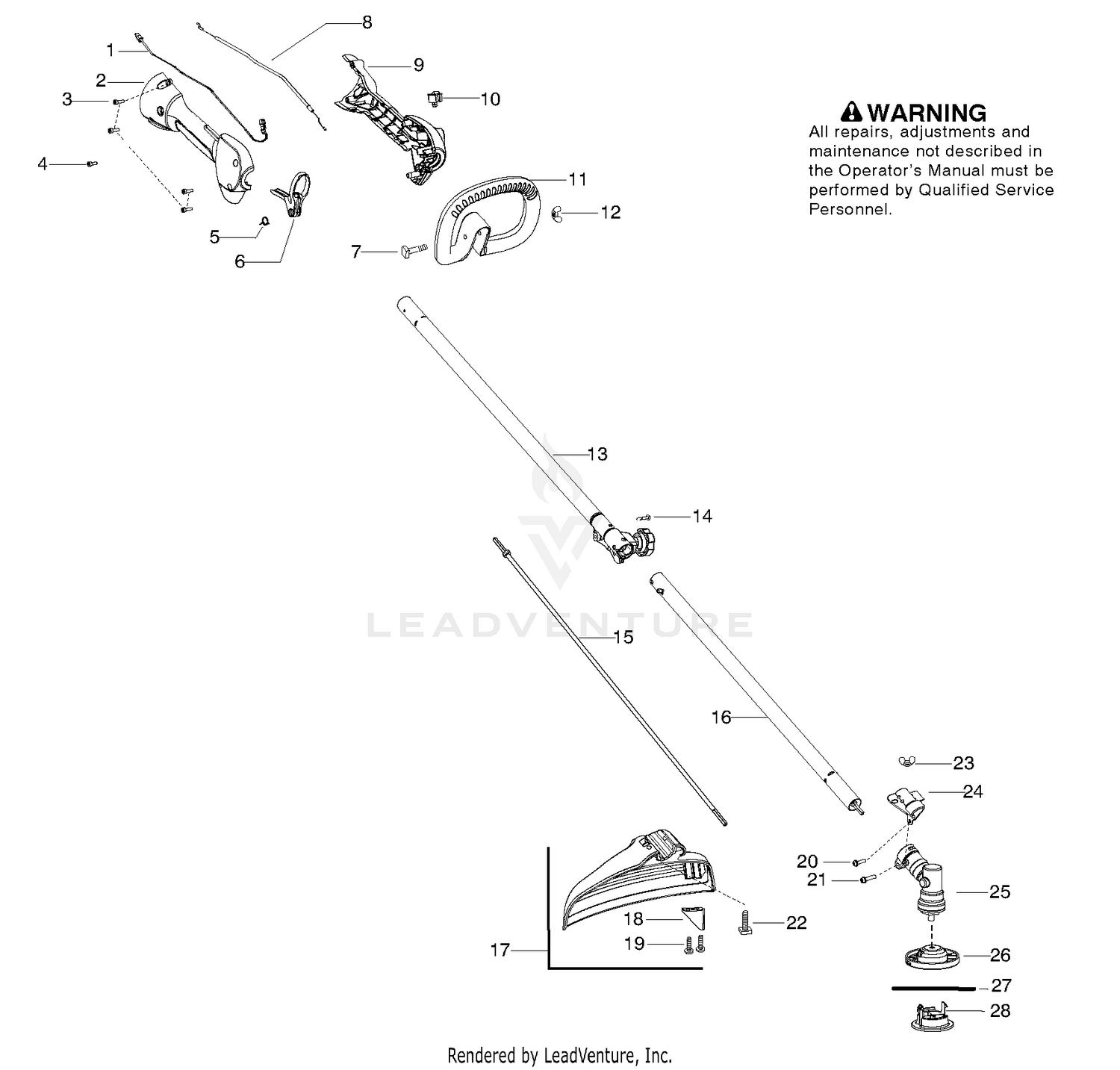

| Ref | Part Number | Description |
|---|
| 1 |
545191801 |
Assy-Switch Wire Price: $7.99 |
| 2 |
545189402 |
Housing-Throttle (RH) Price: $1.99 |
| 3 |
530016449 |
Screw M4 Price: $1.49 |
| 4 |
530015886 |
Screw This part replaces 530015805. Price: $1.99 |
| 5 |
545190001 |
Spring-Trigger Price: $2.99 |
| 7 |
530015786 |
Bolt -1/4 -20 x 2 Price: $1.99 |
| 8 |
545199301 |
Assy -Throttle Cable Price: $9.99 |
| 9 |
545189302 |
Housing-Throttle (LH) Price: $2.99 |
| 10 |
545008040 |
Kit-Switch Price: Call Us |
| 12 |
530401992 |
Wingnut This part replaces 530016152. Price: $2.99 |
| 14 |
530016344 |
Screw -12 - 24 x .480 Price: $1.99 |
| 15 |
545132002 |
Flexshaft Price: $3.99 |
| 18 |
530052286 |
Limiter-Line Price: Call Us |
| 19 |
530015814 |
Screw -10 - 14 x 3/4 Price: $1.49 |
| 20 |
530015775 |
Screw - 8-16 x .593 Price: $1.99 |
| 21 |
530016014 |
Screw - 12-24 x .960 Price: $1.99 |
| 22 |
530015820 |
Bolt - 1/4-20 x 1-1/4 Price: $1.99 |
| 23 |
530401992 |
Wingnut This part replaces 530016152. Price: $2.99 |
| 24 |
545150701 |
Bracket - Shield Price: $2.99 |
| 25 |
530096099 |
Assy - Gearbox 1" Price: $32.99 |
| 27 |
952711635 |
Accy - Line (12 pcs ) Price: Call Us |
| 28 |
545049501 |
Cap - Fixed Line Price: $5.99 |
