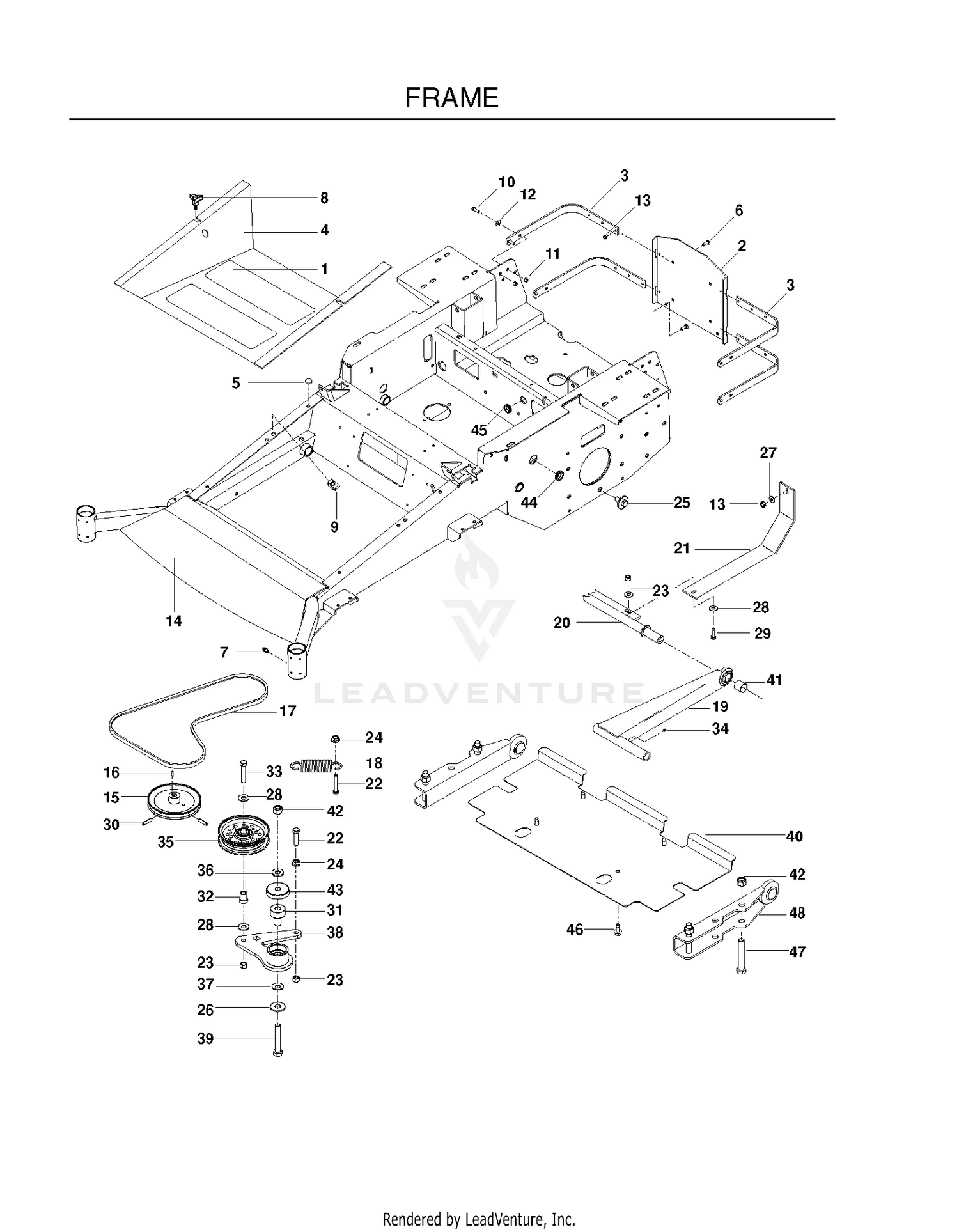

| Ref | Part Number | Description |
|---|
| 1 |
133-4736-03 |
SUPPORT-RADIATOR Price: $95.82 |
| 1 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 2 |
125-2840 |
SHROUD-FAN Price: $284.57 |
| 2 |
539110976 |
XP GUARD, BLACK Price: $35.99 |
| 3 |
539106961 |
ENGINE SHROUD BRKT Price: $17.99 |
| 4 |
119-1426 |
SEAL-BULB Price: $12.29 |
| 4 |
539104721 |
FOOT PLATE WIDMT Price: $179.99 |
| 5 |
119-1422 |
MOUNT-ISOLATOR Price: $19.80 |
| 5 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 6 |
119-1427 |
SEAL-BULB Price: $13.94 |
| 6 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 7 |
125-2846 |
HOSE-RADIATOR, UPPER Price: $38.32 |
| 7 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 8 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 8 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 9 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 9 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 10 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 10 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 11 |
125-2816-0P |
BRACKET-OVERFLOW This part replaces 125-2816-03. Price: $58.12 |
| 11 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 12 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 12 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 13 |
322-3 |
SCREW-HH Price: $0.79 |
| 13 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
32128-25 |
NUT-HF Price: $3.19 |
| 15 |
539101176 |
PULLEY Price: $37.99 |
| 16 |
120-5573 |
COOLANT RESERVOIR ASM Price: $134.92 |
| 16 |
539101177 |
KEY 5 MM SQ X 25 MM Price: $4.99 |
| 17 |
110-3257 |
HOSE-FUEL Price: $17.26 |
| 17 |
510201501 |
BELT, PUMP Price: $39.99 |
| 18 |
110-6187 |
HOSE-FUEL Price: $14.65 |
| 18 |
539103256 |
SPRING Price: $9.99 |
| 19 |
107069 |
CLIP Price: $1.79 |
| 19 |
539104390 |
STRUT Price: $229.99 |
| 20 |
539132302 |
CROSS SHAFT, STRUT - BLK Price: $219.99 |
| 20 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 22 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 22 |
539990655 |
HCS 3/8C X 1 1/2 Price: $3.99 |
| 23 |
117-4766 |
DECAL-WARNING, FAN Price: $5.80 |
| 23 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 24 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 25 |
539119007 |
BLADE BOLT/WASHER Price: $8.99 |
| 26 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 27 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 28 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 29 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 30 |
596917801 |
Pins This part replaces 539110631. Price: $1.99 |
| 31 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 32 |
539976695 |
BUSHING, IDLER FLANGE Price: $7.99 |
| 33 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 34 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 35 |
596739801 |
PULLEYS This part replaces 539976688. Price: $29.99 |
| 36 |
595086801 |
Washers This part replaces 539990250. Price: $2.99 |
| 37 |
596581701 |
Washers This part replaces 539115528. Price: $2.99 |
| 38 |
539130392 |
ARM, IDLER - W/BEARINGS Price: $39.99 |
| 39 |
539101572 |
SCREW, 1/2C X 3 HEX CAP Price: $4.99 |
| 40 |
539112636 |
REAR DEBRIS SHIELD Price: $37.99 |
| 41 |
539104521 |
SPACER, STRUT Price: $7.99 |
| 42 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 43 |
596394601 |
Shields This part replaces 539114662. Price: $2.99 |
| 44 |
539105974 |
RUBBER GROMMET Price: $2.99 |
| 45 |
539110433 |
GROMMET, FUEL LINE Price: $3.99 |
| 46 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 47 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 48 |
539112516 |
STRUT WELDMENT, REAR Price: $54.99 |
