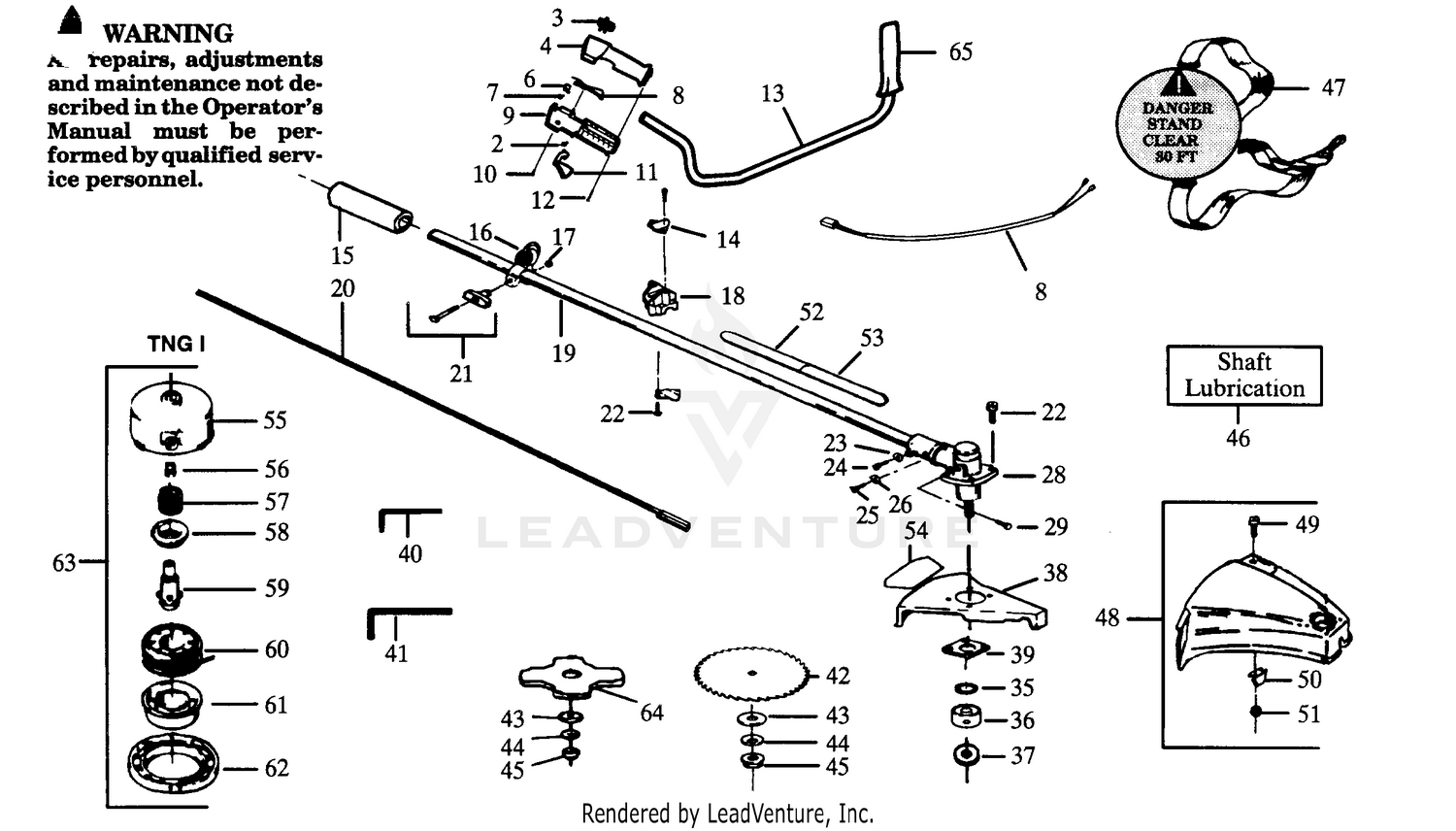

| Ref | Part Number | Description |
|---|
| 1 |
112-1734 |
ROLLER-SHOULDER, PLASTIC Price: $525.86 |
| 1 |
530047144 |
Wire Harness Ass'y. Price: $4.99 |
| 2 |
112-1707 |
SHAFT-ROLLER, WIEHLE Price: $73.35 |
| 2 |
502199301 |
Trigger Spring Price: $0.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
503718201 |
Rocker Switch Price: $9.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
502208502 |
Throttle Hsg.-Left Price: $6.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 6 |
114-5411 |
NUT-LOCK, BEARING This part replaces 114-3745. Price: $24.46 |
| 6 |
502209602 |
Throttle Lock Price: $1.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
530403152 |
Spring Throttle Lock This part replaces 502209701. Price: $1.99 |
| 8 |
502199403 |
Throttle Lockout Price: $1.99 |
| 9 |
502208602 |
Throttle Hsg.-Right Price: $3.99 |
| 10 |
503210719 |
Screw Price: $1.99 |
| 11 |
502199203 |
Throttle Trigger Price: $5.99 |
| 12 |
503210738 |
Screw Price: $1.99 |
| 13 |
530047139 |
Handlebar Price: $34.99 |
| 14 |
530094572 |
Handlebar Bracket Price: $1.99 |
| 15 |
530027706 |
Drive Shaft Pad Price: Call Us |
| 16 |
530094686 |
Clamp Harness Ass'y. Price: $4.99 |
| 17 |
530015197 |
Nut Price: $1.99 |
| 18 |
530012207 |
Handlebar Clamp Price: $8.99 |
| 19 |
530094650 |
Drive Shaft Housing Price: $64.99 |
| 20 |
530094566 |
Drive Shaft Price: $54.99 |
| 21 |
530069347 |
HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 22 |
530015791 |
Screw, Use w/Metal Shield Price: $1.99 |
| 22 |
530016107 |
Screw, Use w/Plastic Shield Price: $1.99 |
| 23 |
530015328 |
Lockwasher Price: $1.99 |
| 24 |
530094612 |
Screw Price: $0.99 |
| 25 |
530001711 |
Screw Price: $1.99 |
| 26 |
530001642 |
Lockwasher Price: $1.99 |
| 28 |
530071781 |
GEAR BOX REPLACEMENT KIT This part replaces 530094568. Price: $74.99 |
| 29 |
530094616 |
Screw Price: Call Us |
| 35 |
530094640 |
Seal Price: $6.94 |
| 36 |
530094639 |
Dust Cup Price: $7.99 |
| 37 |
530094571 |
Grass Washer Price: $1.99 |
| 38 |
530094633 |
SHIELD This part replaces 530094627. Price: $22.99 |
| 39 |
530027615 |
Shield Retention Plate Price: $3.99 |
| 40 |
530031159 |
Hex Wrench (5/32) This part replaces 530031111. Price: $1.99 |
| 41 |
530031098 |
Hex Wrench (3/16) Price: $0.99 |
| 42 |
952701610 |
Brush Blade Price: Call Us |
| 43 |
530015792 |
Washer Price: $1.99 |
| 44 |
530016240 |
Washer--Belleville This part replaces 530015492. Price: $1.99 |
| 45 |
530015793 |
Nut Price: $1.99 |
| 46 |
952030133 |
Shaft Lubrication Price: $1.95 |
| 47 |
530094417 |
Shoulder Strap Price: $20.65 |
| 48 |
530069256 |
Shield Kit Ass'y. (Incl. 49-51) Price: $9.99 |
| 49 |
530015037 |
Screw Price: $1.99 |
| 50 |
530094570 |
Line Limiter Price: $1.99 |
| 51 |
530403094 |
Nut This part replaces 534235901. Price: $1.99 |
| 52 |
530029162 |
Decal-Shaft Warning (Upper) Price: $3.33 |
| 53 |
530029163 |
Decal-Shaft Warning (Lower) Price: $3.33 |
| 54 |
530027749 |
Decal-Blade Direction (Not a serviceable part) Price: $0.12 |
| 55 |
530071295 |
Hub This part replaces 530093896. Price: $14.99 |
| 56 |
530093898 |
Line Saver Price: $3.99 |
| 57 |
530340007 |
Spring Price: $1.99 |
| 58 |
530328929 |
Cap Spring This part replaces 530092068. Price: $1.99 |
| 59 |
530071295 |
Hub This part replaces 530095121. Price: $14.99 |
| 60 |
952701589 |
Spool w/Line Price: $5.95 |
| 61 |
530401183 |
Release Button Price: $2.99 |
| 62 |
530092133 |
Cover Price: $5.99 |
| 63 |
952711550 |
Accy--Cutting Head This part replaces 952701643. Price: $18.95 |
| 65 |
502145101 |
Grip-Left Price: $37.99 |
