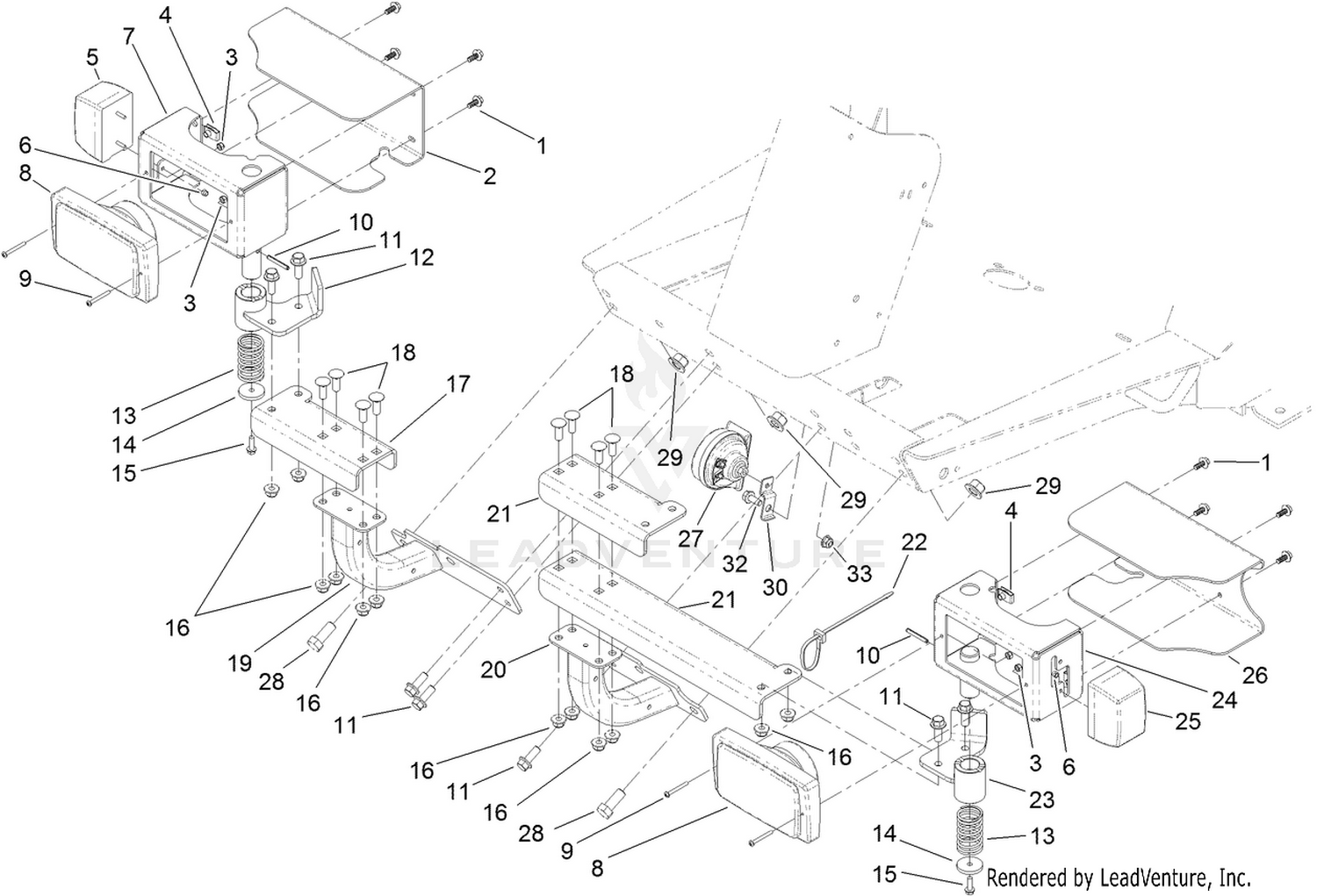

Headlamp Assembly
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-6810 | SCREW-HHF Price: $3.09 |
| 2 | 120-6665-03 | SHIELD-HEADLIGHT, RH Price: $144.90 |
| 3 | 3296-1 | NUT-LOCK Price: $0.25 |
| 4 | 107069 | CLIP Price: $1.79 |
| 5 | 119-8099 | LAMP-DIRECTION INDICATOR, (RH) Price: $106.81 |
| 6 | 46-0430 | NUT-LOCK Price: $0.50 |
| 7 | 120-0358-03 | RH LIGHT ENCLOSURE ASM Price: $129.53 |
| 8 | 119-8092 | HEADLAMP Price: $178.66 |
| 9 | 363-3205 | SCREW-PPH Price: $2.66 |
| 10 | 32121-34 | PIN-ROLL Price: $1.31 |
| 11 | 3234-42 | SCREW-HHF Price: $1.10 |
| 12 | 120-0351-03 | RH LIGHT BRACKET ASM Price: $81.38 |
| 13 | 104-9412 | SPRING-COMPRESSION Price: $8.24 |
| 14 | 119-9875 | WASHER Price: $6.65 |
| 15 | 32105-15 | SCREW-HWH Price: $1.79 |
| 16 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 17 | 120-6632-03 | CHANNEL-HEADLAMP, RH Price: $45.52 |
| 18 | 3231-22 | SCREW-CARR Price: $0.72 |
| 19 | 120-6630-03 | RH LAMP MOUNT ASM Price: $138.73 |
| 20 | 120-6620-03 | LH LAMP MOUNT ASM Price: $138.73 |
| 21 | 120-6631-03 | CHANNEL-HEADLAMP, LONG Price: $59.41 |
| 21 | 121-6438-03 | CHANNEL-HEADLAMP, SHORT Price: $45.52 |
| 22 | 3290-378 | TIE-CABLE Price: $0.79 |
| 23 | 120-0350-03 | LH LIGHT BRACKET ASM Price: $81.38 |
| 24 | 120-0357-03 | LH LIGHT ENCLOSURE ASM Price: $122.20 |
| 25 | 119-8094 | LAMP-DIRECTION INDICATOR, (LH) Price: $106.81 |
| 26 | 120-6664-03 | SHIELD-HEADLIGHT, LH Price: $124.27 |
| 27 | 116749 | HORN Price: $130.99 |
| 28 | 325-5 | SCREW-HH Price: $1.20 |
| 29 | 99-5107 | NUT-LOCK Price: $1.77 |
| 30 | 121-9438 | BRACKET-HORN Price: Call Us |
| 32 | 3234-47 | SCREW-HHF Price: $1.79 |
