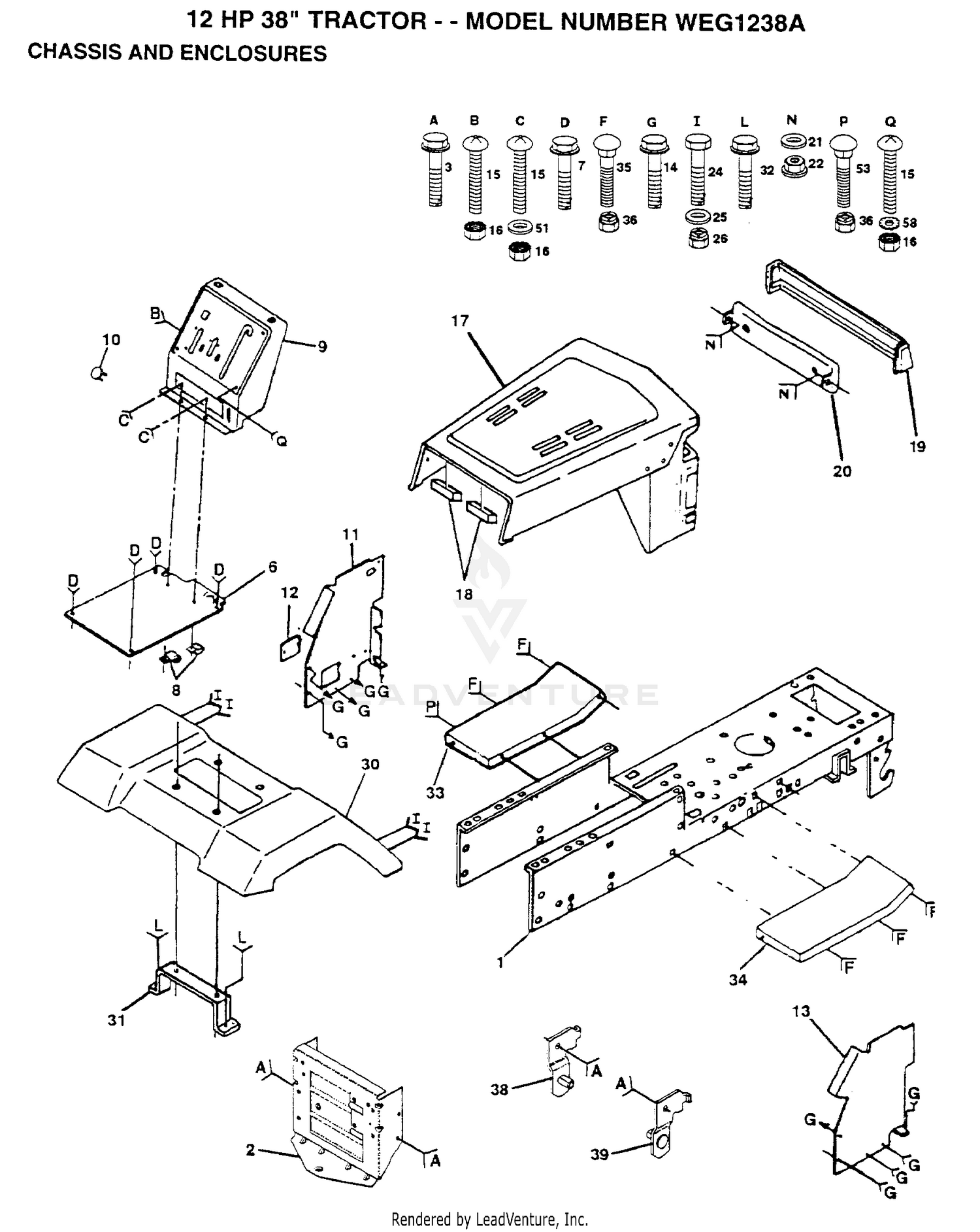

CHASSIS AND ENCLOSURES
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-9770 | UPPER ROPS ASM Price: $548.65 |
| 1 | 140341 | SUB= 145501 Price: Call Us |
| 2 | 110-5696 | SPRING-LEAF Price: $43.16 |
| 2 | 140356 | SUB= 145009 Price: Call Us |
| 3 | 17490612 | SCREW Price: Call Us |
| 3 | 32144-10 | SCREW-HWH Price: $4.29 |
| 4 | 325-13 | SCREW-HH Price: $3.57 |
| 5 | 99-7435 | RELAY Price: $32.43 |
| 6 | 104-7201 | NUT-HF Price: $0.69 |
| 6 | 140290X016 | SUB= 145208X016 Price: Call Us |
| 7 | 112-6361-03 | CROSSMEMBER ASM Price: $240.97 |
| 7 | 17490612 | SCREW Price: Call Us |
| 8 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 8 | 2751R | CLIP T Price: Call Us |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 9 | 140637X011 | DASH SILKSCRN 1 Price: Call Us |
| 10 | 3234-4 | SCREW-HHF Price: $0.50 |
| 10 | 5479J | PLUG BUTTON T Price: Call Us |
| 11 | 122795X | PANEL DASH LH Price: Call Us |
| 11 | 161-4477 | PIN-ROPS, ASM This part replaces 103-4553. Price: $31.99 |
| 12 | 105-0778 | STRIP-FOAM Price: $11.41 |
| 12 | 121794X | COVER ACCESS Price: Call Us |
| 13 | 105-7296-03 | SUPPORT-SEAT Price: $122.64 |
| 13 | 124031X | SUB= 155934X010 Price: Call Us |
| 14 | 17490608 | SCREW LT Price: Call Us |
| 14 | 3231-2 | BOLT-CARR Price: $0.81 |
| 15 | 112-6387 | STRIP-FOAM Price: $10.62 |
| 15 | 74180512 | SCREW Price: Call Us |
| 16 | 32128-23 | NUT-HF Price: $1.51 |
| 16 | 73510500 | NUT Price: Call Us |
| 17 | 133956X419 | HOOD/GRILL ASM Price: Call Us |
| 17 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 18 | 112-6367-03 | PANEL-REAR Price: $75.89 |
| 18 | 126938X | SUB= 532126938 Price: Call Us |
| 19 | 133805 | SUB= 133954 Price: Call Us |
| 19 | 32151-106 | RING-RETAINING Price: $0.25 |
| 20 | 132257 | SUB= 918132257 Price: Call Us |
| 20 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 21 | 107069 | CLIP Price: $1.79 |
| 21 | 19091216 | WASHER PM Price: Call Us |
| 22 | 108067X | PAL NUT LT Price: Call Us |
| 23 | 32105-2 | SCREW-SHWH Price: $3.49 |
| 24 | 112-6384-0P | SCREEN This part replaces 112-6384-03. Price: $149.73 |
| 24 | 74780616 | BOLT Price: Call Us |
| 25 | 19131312 | WASHER Price: Call Us |
| 25 | 98-8332 | KNOB Price: $4.89 |
| 26 | 73800600 | NUT Price: Call Us |
| 27 | 110-9794 | COVER-FRONT Price: $120.96 |
| 28 | 95-5807 | SPACER Price: $10.10 |
| 29 | 237-124 | GROMMET Price: $2.30 |
| 30 | 109872X419 | FENDER Price: Call Us |
| 30 | 110-8276 | TRIM-HOLD DOWN, BATTERY Price: $4.66 |
| 31 | 136619 | BRKT FENDER Price: Call Us |
| 31 | 3290-412 | RIVET-BLIND Price: $3.19 |
| 32 | 17490612 | SCREW Price: Call Us |
| 32 | 321-10 | SCREW-HH Price: $1.29 |
| 33 | 105476X419 | FOOTREST LH Price: Call Us |
| 33 | 2412-87 | CLAMP-CABLE Price: $2.89 |
| 34 | 105475X419 | FOOTREST Price: Call Us |
| 35 | 72110606 | BOLT Price: Call Us |
| 36 | 73800600 | NUT Price: Call Us |
| 38 | 139886 | BRACKET ASM LH Price: Call Us |
| 39 | 139887 | BRACKET ASM RH Price: Call Us |
| 51 | 19131216 | WASHER Price: Call Us |
| 53 | 72140608 | SUB= 72110608 Price: Call Us |
