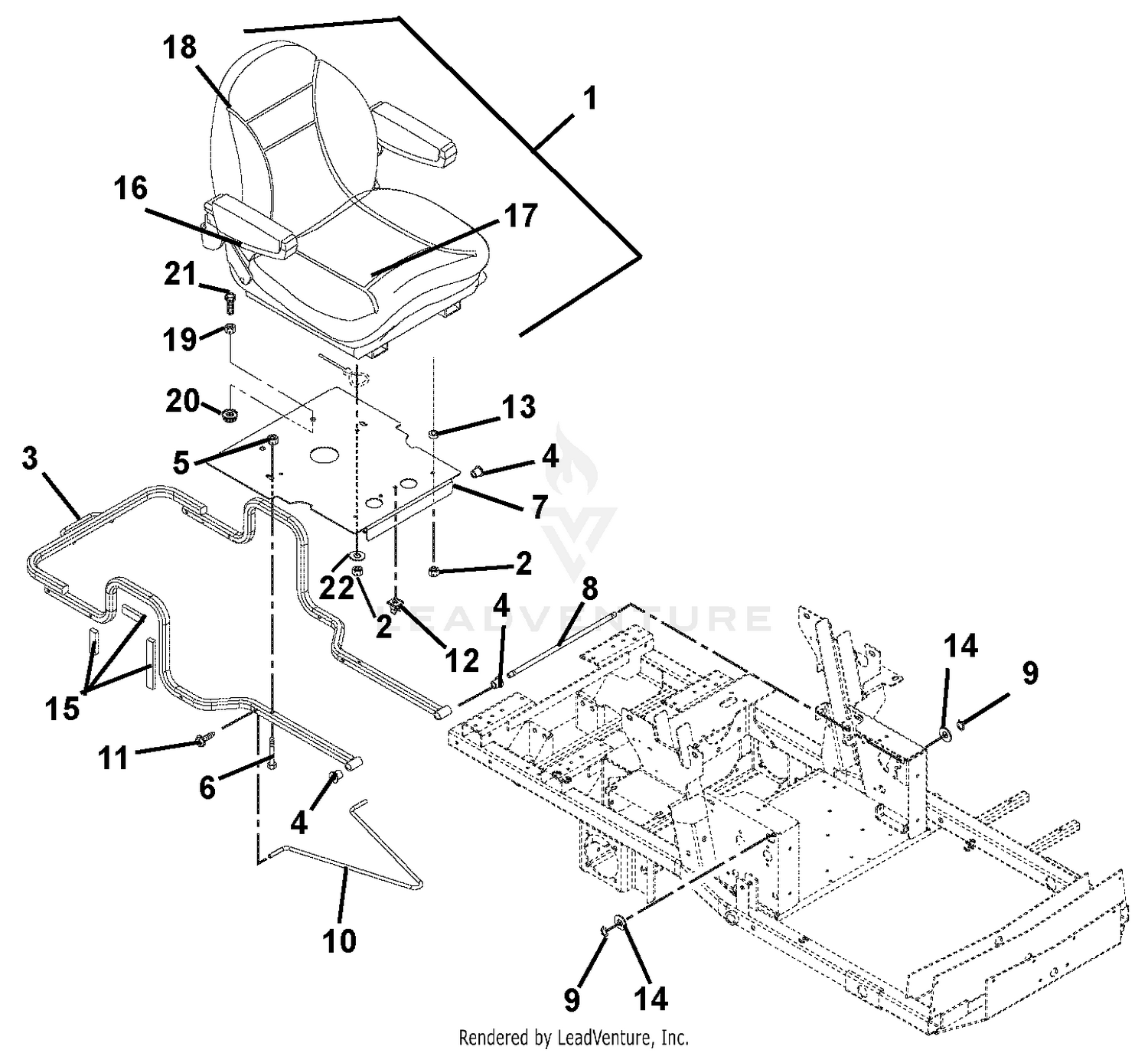

| Ref | Part Number | Description |
|---|
| 1 |
03947200 |
SEAT-SUSP-LT GRY-SEAT BLT BUSH This part replaces 09293000. Price: $715.95 |
| 2 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 3 |
09278753 |
WMT, HOOD FRAME Price: $407.95 |
| 4 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 5 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 6 |
07056300 |
BLT, .38-16X1.50 RIB NECK YWZC Price: Call Us |
| 7 |
09274151 |
WMT, SEAT PIVOT MOUNT Price: $127.45 |
| 8 |
09245400 |
ROD - SEAT FRAME PIVOT Price: $101.95 |
| 9 |
05717100 |
RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45 |
| 10 |
09258500 |
ROD, SEAT PROP Price: $59.95 |
| 11 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 12 |
07534100 |
CLIP-.38 Price: $8.95 |
| 13 |
05508900 |
BSHG-SLV .377X.624X.235 Price: $8.45 |
| 14 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 15 |
00932300 |
VHB TAPE 4941F Price: $3.45 |
| 17 |
59204400 |
KIT,SEAT CUSHION Price: $181.95 |
| 18 |
59204300 |
KIT,BACK CUSHION Price: $285.95 |
| 19 |
06500814 |
NUT,HEX .50-13 G2 ZCC This part replaces 06537300. Price: $3.95 |
| 20 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 21 |
05901631 |
BLT,HEX .50-13X1.50 G5 ZCC This part replaces 05962000. Price: $3.95 |
