Home / OPE / Gravely Zero Turn / Promaster 200 / 992218 (020000 - ) Pro-Master 260H XDZ / Frame

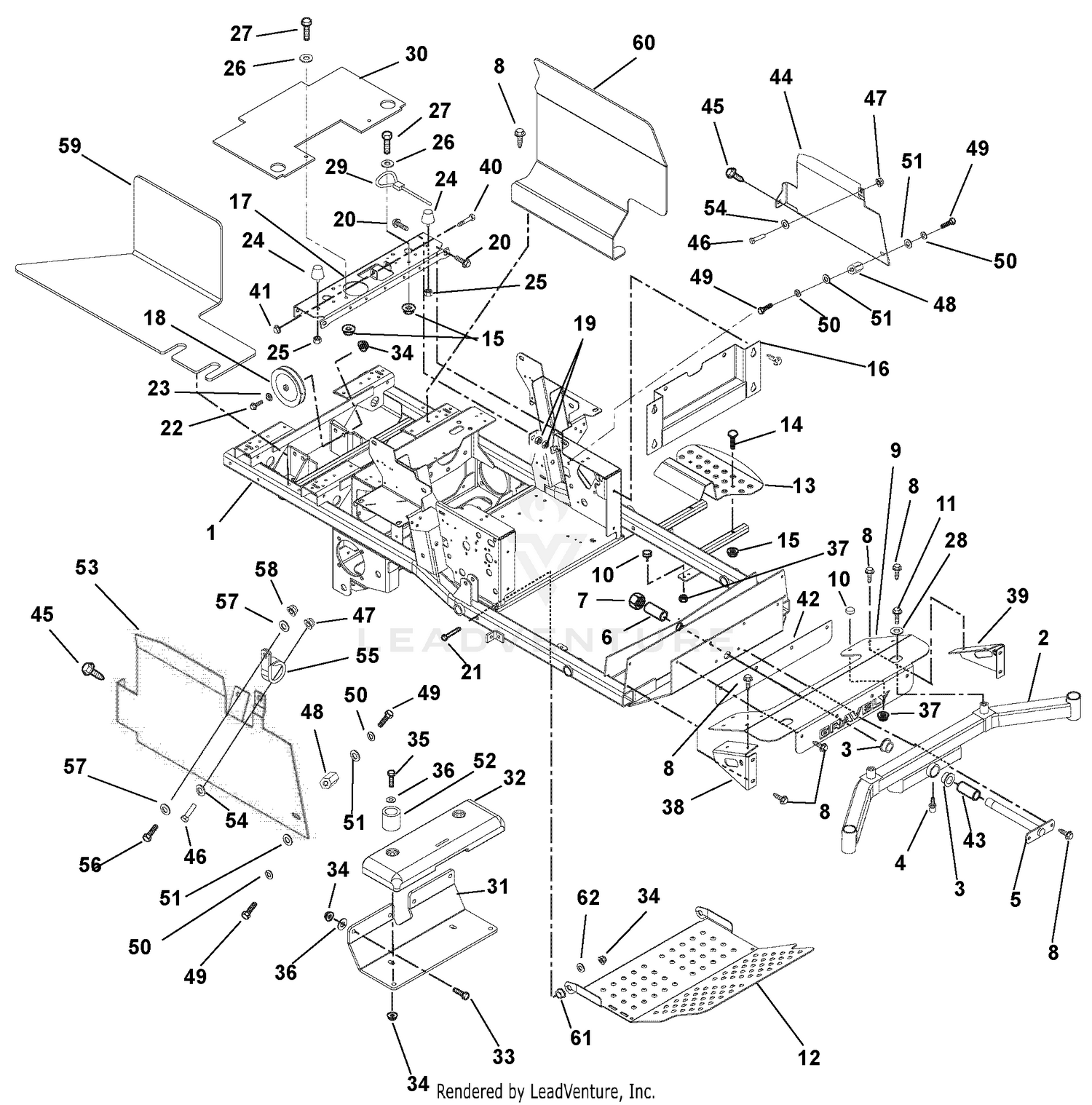

Frame

Frame

Parts (61)

RefPart NumberDescription
1 00443253 WLDMT, FRAME Price: $1,538.90
2 00978153 WMT, FRONT AXLE Price: $538.95
3 05500914 BUSH, FLG 1.25X1.50X1.00X.200 Price: $19.95
4 07012700 FTG,LUBE 45 DEG Price: $3.95
5 09232000 PIN - AXLE Price: $61.45
6 09231900 SPACER 1.009 X 1.250 X 4.23 Price: $19.45
7 06543200 NUT-LK-NYL 1.0-14 YWZC Price: $8.95
8 07400129 SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45
9 03998953 AXLE COVER Price: $111.45
10 07533600 BUMPER, RUBBER Price: $10.95
11 05975000 BLT-HEX .50-20X1.00 GR5 YWZC Price: $3.45
12 04180451 PANEL-INSPECTION Price: Call Us
13 09231251 STEP, INGRESS (BLACK) Price: Call Us
14 06200324 BLT, RHSN .31-18X1.75 G5 ZCC This part replaces 06220200. Price: $2.95
15 06500904 NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95
16 00483153 PLATE - KICK Price: $69.45
17 04044953 BRACE, SEAT CROSS WITH LATCH Price: Call Us
18 07328000 PLY-V 6.0 X .500 ID DBL BRG. Price: $96.95
19 07053300 NUT-RTNR .375-16X.37 Price: $3.45
20 07049900 BLT-SERHFWH .375-16X1.0 YWZC Price: $2.45
21 05901634 BLT,HEX .50-13X3.25 G5 ZCC This part replaces 05960000. Price: $3.45
22 05901835 BLT, HEX .50-13X2.25 G5 ZCC This part replaces 05961000. Price: $3.45
23 06401126 WSHR, FLT .505X.880X.072 ZCC This part replaces 06436600. Price: $3.45
24 07533000 BUMPER, RUBBER CONE,STUD MOUNT Price: $13.45
25 06500815 NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45
26 06401104 WSHR, FLT .340X1.125X.135 ZCC This part replaces 06446300. Price: $3.95
27 05901701 BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45
28 06400829 WSHR-FLT .640X1.75X.250 Price: $3.95
29 06900010 CABLE, SEAT PROP. Price: $39.95
30 00436900 GUARD - GRASS Price: $41.95
31 04305851 BRACKET-SUPPORT ARM - FRAME Price: Call Us
32 00172000 WEIGHT, CAST IRON Price: $234.95
33 05901637 BLT,HEX .50-13X1.25 G5 ZCC This part replaces 05958900. Price: $2.95
34 06500907 NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45
35 05901932 BLT, HEX .50-13X4.50 G5 ZCC This part replaces 05962300. Price: $5.95
36 06401015 WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95
37 06500815 NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45
38 03972253 WMT - RH AXLE COVER SUPPORT Price: $66.95
39 03972353 WMT - LH AXLE COVER SUPPORT Price: $66.95
40 05901814 BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45
41 06500822 NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95
42 03999051 PLATE, BACKER Price: $14.95
43 00978200 SPCR, 1.25ODX1.0IDX3.63 Price: $22.95
44 04327251 BRKT, GUARD LH SIDE Price: Call Us
45 07400126 SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45
46 05901824 BLT, HWH .25-20X.75 G5 ZCC This part replaces 05900019. Price: $1.45
47 06500813 NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45
48 07001630 NUT, .31-18X2.25 LG COUPLING Price: $25.95
49 05901704 BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45
50 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
51 06401017 WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45
52 04318953 SPACER, .563 X 1.25 X.969 Price: Call Us
53 04339651 BRKT, GUARD RH SIDE Price: $32.95
54 06401020 WSHR,FLT .281X1.000X.063 ZCC This part replaces 06426600. Price: $0.95
55 06917900 CLAMP, COUSHIONED STEEL REV Price: $13.45
56 05901724 BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45
57 06401013 WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95
58 06500822 NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95
59 04280851 GUARD-DIESEL-RH Price: Call Us
60 04280951 GUARD-DIESEL-LH Price: Call Us
61 05532100 BSHG-FLG .515X.750X.285X1.120 Price: $6.25
