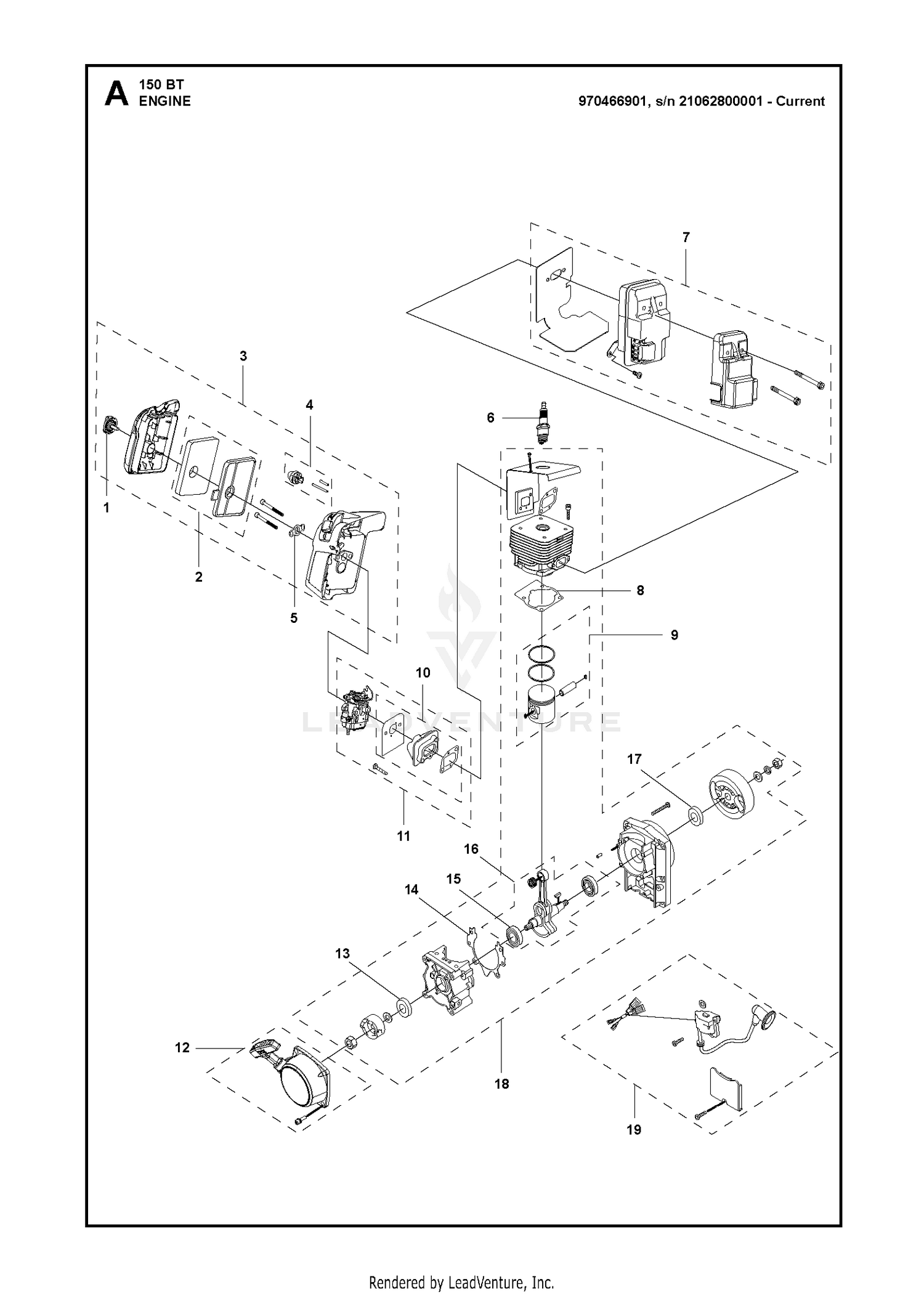

ENGINE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535316001 | KEEPER COVER KEEPER Price: $4.99 |
| 2 | 535316301 | AIR FILTER ASSY AIRBOX AND FIL Price: $7.99 |
| 3 | 535542601 | AIRBOX ASSY Price: $24.99 |
| 4 | 535316601 | PURGE PURGE BULB KIT Price: $11.99 |
| 5 | 535316501 | BAFFLE BAFFLE Price: $3.99 |
| 6 | 503235111 | SPARK PLUG M14X1.25 NGK BPMR7A Price: $4.99 |
| 7 | 531147160 | MUFFLER Price: $59.99 |
| 8 | 535316801 | GASKET CYLINDER BASE GASKET Price: $5.99 |
| 9 | 531147153 | PISTON Price: $32.99 |
| 10 | 535316701 | GASKET KIT GASKET KIT Price: $11.99 |
| 11 | 531147180 | CARBURETTOR Price: $39.99 |
| 12 | 531147159 | STARTER ASSY Price: $22.99 |
| 14 | 531147156 | GASKET Price: $4.99 |
| 15 | 531147154 | BEARING Price: $6.99 |
| 16 | 531147155 | CRANKSHAFT Price: $109.99 |
| 17 | 531147158 | SEAL Price: $5.99 |
| 18 | 501424373 | Repair Kit Price: $229.99 |
| 19 | 531147161 | IGNITION COIL Price: $54.99 |
