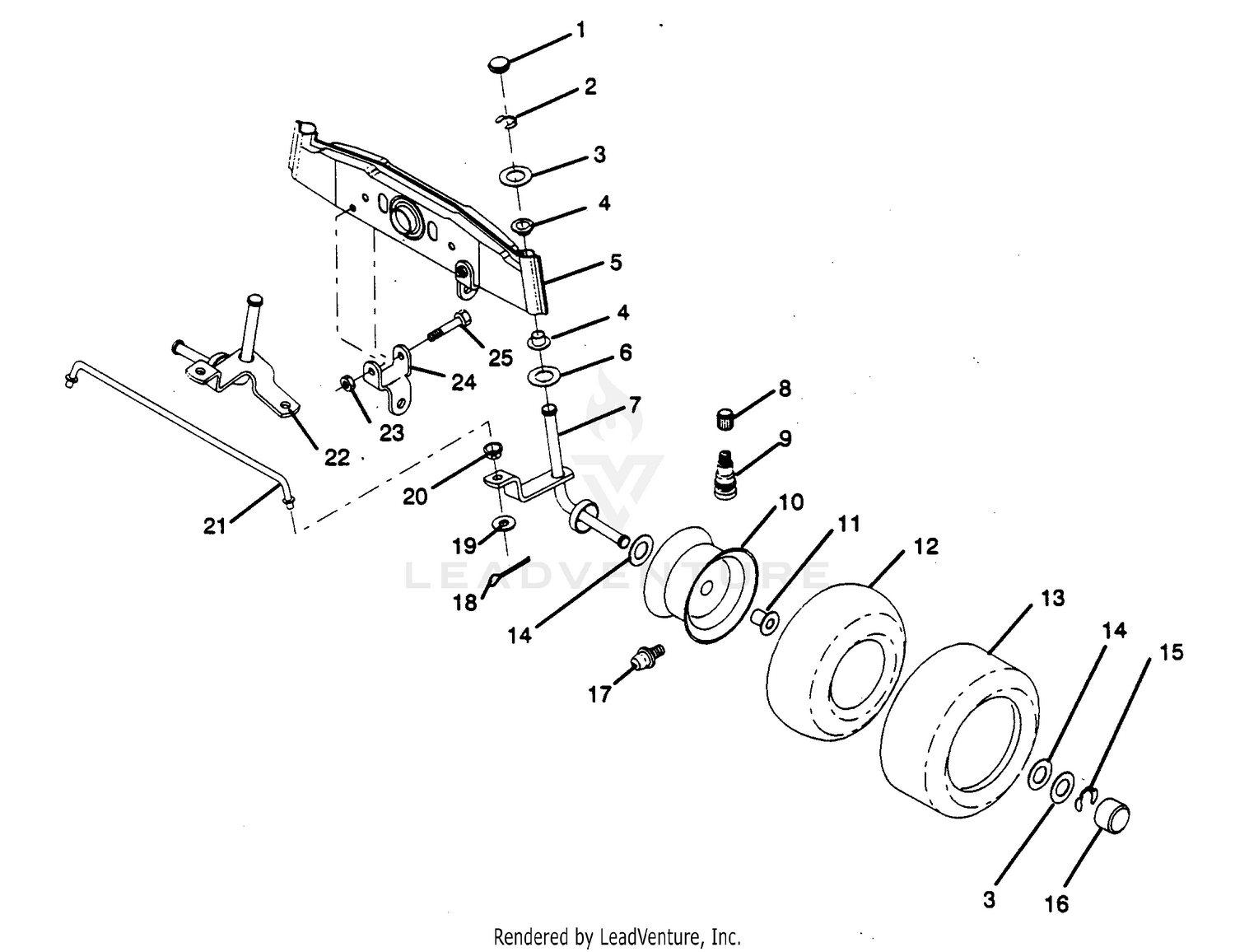

| Ref | Part Number | Description |
|---|
| 1 |
532121232 |
Cap, Spindle Price: $1.99 |
| 1 |
98-9643 |
INJECTION PUMP ASM Price: $2,551.99 |
| 2 |
812000029 |
Ring, Clip Price: $1.99 |
| 3 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 3 |
98-9596 |
JOINT-EYE Price: $18.69 |
| 4 |
532121922 |
Nyliner Price: $2.99 |
| 4 |
98-9361 |
BOLT-HSH Price: $0.76 |
| 5 |
532121914 |
Axle, Front Price: $21.92 |
| 5 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 6 |
98-9456 |
SHIM-INJECTION (0.20MM) Price: $7.29 |
| 6 |
98-9457 |
SHIM-INJECTION (0.25MM) Price: $8.40 |
| 7 |
532121919 |
Spindle R.H. Asm. Price: $20.99 |
| 7 |
98-9458 |
SHIM-INJECTION (0.30MM) Price: $12.10 |
| 8 |
532059192 |
Cap, Valve Price: $3.99 |
| 8 |
98-9438 |
STUD Price: $1.33 |
| 9 |
532065139 |
Stem, Valve Price: $5.99 |
| 10 |
532124843 |
Rim Price: $3.33 |
| 11 |
532009040 |
Bearing, Flange Price: $3.99 |
| 12 |
532059904 |
Tube Price: $22.69 |
| 13 |
532123410 |
Tire, Front Price: $44.99 |
| 14 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 15 |
812000029 |
Ring, Clip Price: $1.99 |
| 16 |
532104757 |
Cap, Axle Price: $1.99 |
| 17 |
532000278 |
Fitting, Grease Price: $2.99 |
| 18 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 19 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 20 |
532126847 |
Bushing Price: $2.49 |
| 21 |
532121924 |
Rod, Tie Price: $66.99 |
| 22 |
532121916 |
Spindle, L.H. Asm. Price: $28.99 |
| 23 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 24 |
532121915 |
Bracket, Front Stabilizer Link Price: $2.88 |
