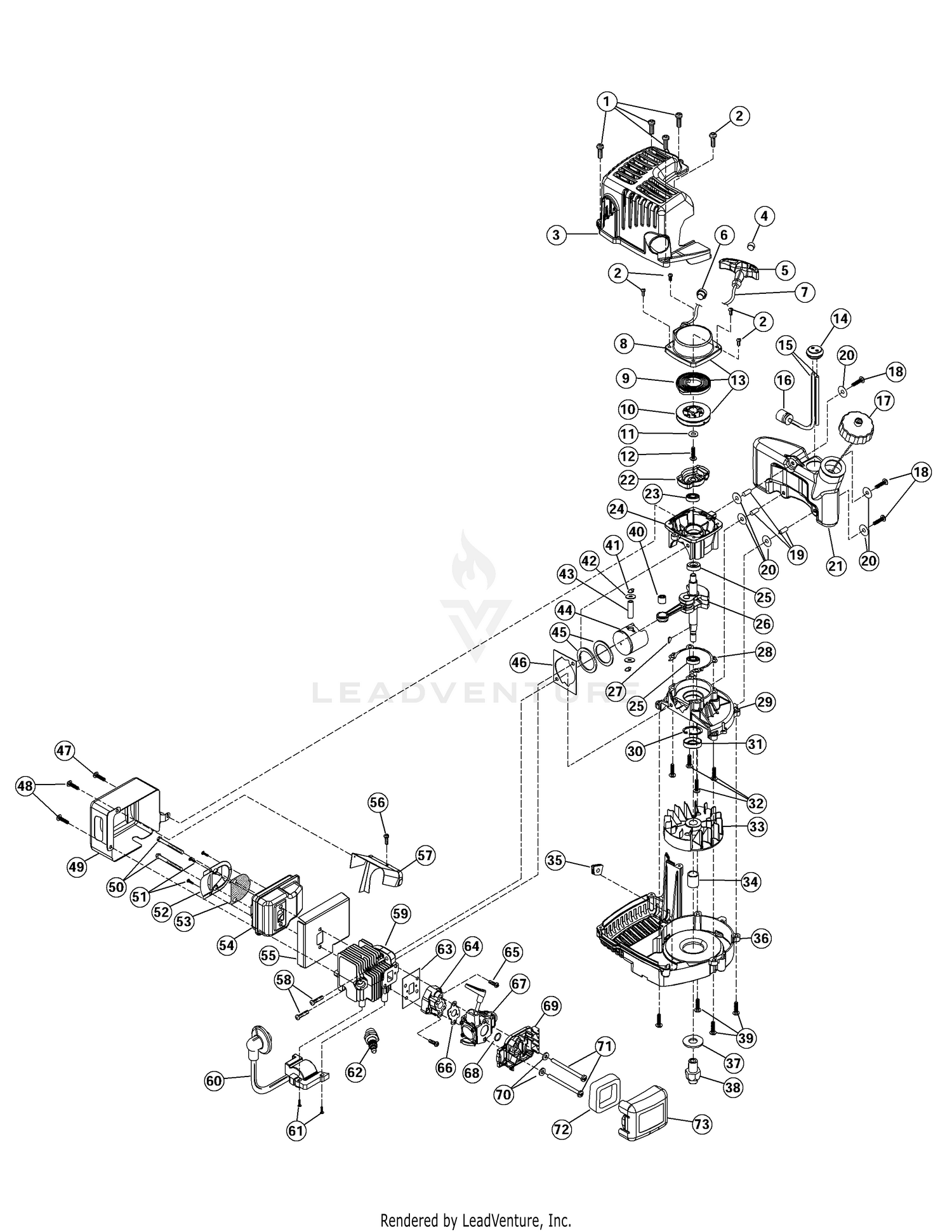

| Ref | Part Number | Description |
|---|
| 1 |
710-04232 |
SCREW 8/16-0.75 Not Available This part replaces 753-04518. Price: |
| 2 |
753-04519 |
SCREW Not Available Price: |
| 3 |
753-04742 |
ENGINE COVER Not Available Price: |
| 4 |
753-04521 |
PULL HANDLE BUSHING Not Available Price: |
| 5 |
753-04522 |
STARTER HANDLE 9196 Not Available Price: |
| 6 |
753-04523 |
GUIDE ROPE Not Available Price: |
| 7 |
753-04524 |
ROPE Not Available Price: |
| 8 |
MC-9017-MD0103 |
HOUSING:STARTER Not Available This part replaces 753-04525. Price: |
| 9 |
753-04526 |
RECOIL SPRING Not Available Price: |
| 10 |
753-04527 |
RECOIL PULLEY Not Available Price: |
| 11 |
MC-9014-MD0106 |
WASHER Not Available This part replaces 753-04528. Price: |
| 12 |
MC-9SGKB-4.8 |
SCREW Not Available This part replaces 753-04529. Price: |
| 13 |
753-04530 |
RECOIL ASSEMBLY Not Available Price: |
| 14 |
753-04531 |
FUEL LINE GROMMET Not Available Price: |
| 15 |
791-181828 |
FUEL LINE Not Available Price: |
| 16 |
753-04533 |
TANK ASSEMBLY-F Not Available Price: |
| 17 |
791-182612 |
Fuel Cap Assembly This part replaces 753-04534. Price: $17.64 |
| 18 |
753-04535 |
SCREW Not Available Price: |
| 19 |
753-04536 |
SPACER Not Available Price: |
| 20 |
753-04537 |
WASHER 90 Not Available Price: |
| 21 |
753-04538 |
TANK ASSEMBLY-F Not Available Price: |
| 22 |
753-04539 |
PAWL ASSEMBLY Not Available Price: |
| 23 |
MC-9157-332101 |
OIL SEAL Not Available This part replaces 753-04540. Price: |
| 24 |
753-05004 |
ENGINE ASSEMBLY 290BLO Not Available This part replaces 753-04541. Price: |
| 25 |
753-04542 |
BEARING-BA Not Available Price: |
| 26 |
753-04543 |
CRANKSHFT ASSEMBLY Not Available Price: |
| 27 |
753-04544 |
FLYWHEEL KEY Not Available Price: |
| 28 |
753-04545 |
GASKET-CRA Not Available Price: |
| 29 |
753-04546 |
CASE ASSEMBLY-CRANK Not Available Price: |
| 30 |
753-04547 |
CLIP-C Not Available Price: |
| 31 |
753-04548 |
OIL SEAL Not Available Price: |
| 32 |
753-04549 |
CRANKSHAFT SCREW Not Available Price: |
| 33 |
MC-9151-MD0103 |
FLYWHEEL Not Available This part replaces 753-04550. Price: |
| 34 |
753-04551 |
SPACER Not Available Price: |
| 35 |
753-04552 |
Spark Wire Grommet Price: Call Us |
| 36 |
753-04743 |
COVER-ENG BOT 9017 Not Available Price: |
| 37 |
753-04554 |
WASHER Not Available Price: |
| 38 |
753-04555 |
SHAFT/NUT Not Available Price: |
| 39 |
753-04556 |
Shroud Screws Price: Call Us |
| 40 |
753-04557 |
BEARING-NE Not Available Price: |
| 41 |
MC-9131-MD0101 |
CLIP Not Available This part replaces 753-04558. Price: |
| 42 |
MC-9057-MD0201 |
SPACER Not Available This part replaces 753-04559. Price: |
| 43 |
753-04560 |
PIN Not Available Price: |
| 44 |
MC-9290-MD0101 |
PISTON Not Available This part replaces 753-04561. Price: |
| 45 |
753-04562 |
PISTON RING Not Available Price: |
| 46 |
753-04563 |
CYLINDER GASKET Not Available Price: |
| 47 |
753-04564 |
SCREW Not Available Price: |
| 48 |
753-04565 |
SCREW Not Available Price: |
| 49 |
MC-9082-MD0101 |
BAFFLE-MUFFLER Not Available This part replaces 753-04566. Price: |
| 50 |
753-04567 |
SCREW Not Available Price: |
| 51 |
753-04568 |
MUFFLER AS Not Available Price: |
| 52 |
753-04569 |
MUFFLER AS Not Available Price: |
| 53 |
753-04570 |
MUFFLER AS Not Available Price: |
| 54 |
753-04571 |
MUFFLER AS Not Available Price: |
| 55 |
753-04572 |
GASKET-MUF Not Available Price: |
| 56 |
753-04573 |
Screw Price: Call Us |
| 57 |
753-04574 |
BAFFLE-CYL Not Available Price: |
| 58 |
753-04575 |
SCREW Not Available Price: |
| 59 |
753-04576 |
CYLINDER Not Available Price: |
| 60 |
MC-9228-MD0104 |
IGNITION ASSEMBLY Not Available This part replaces 753-04577. Price: |
| 61 |
MC-9SQKBM04-20 |
SCREW Not Available This part replaces 753-04578. Price: |
| 62 |
791-610311B |
Spark Plug This part replaces 753-04579. Price: $13.23 |
| 63 |
753-04580 |
INSULATOR GASKET Not Available Price: |
| 64 |
753-04581 |
INSULATOR Not Available Price: |
| 65 |
MC-9SKKB-05-19 |
SCREW Not Available This part replaces 753-04583. Price: |
| 66 |
753-04582 |
CARBURETOR GASKET Not Available Price: |
| 67 |
753-04584 |
CARBURETOR Not Available Price: |
| 68 |
753-04585 |
O-RING Not Available Price: |
| 69 |
753-04586 |
AIRCLEANER Not Available Price: |
| 70 |
MC-9SKKBM05-64 |
SCREW Not Available This part replaces 753-04587. Price: |
| 71 |
MC-9SKKBM05-64 |
SCREW Not Available This part replaces 753-04588. Price: |
| 72 |
753-04589 |
AIR FILTER Not Available Price: |
