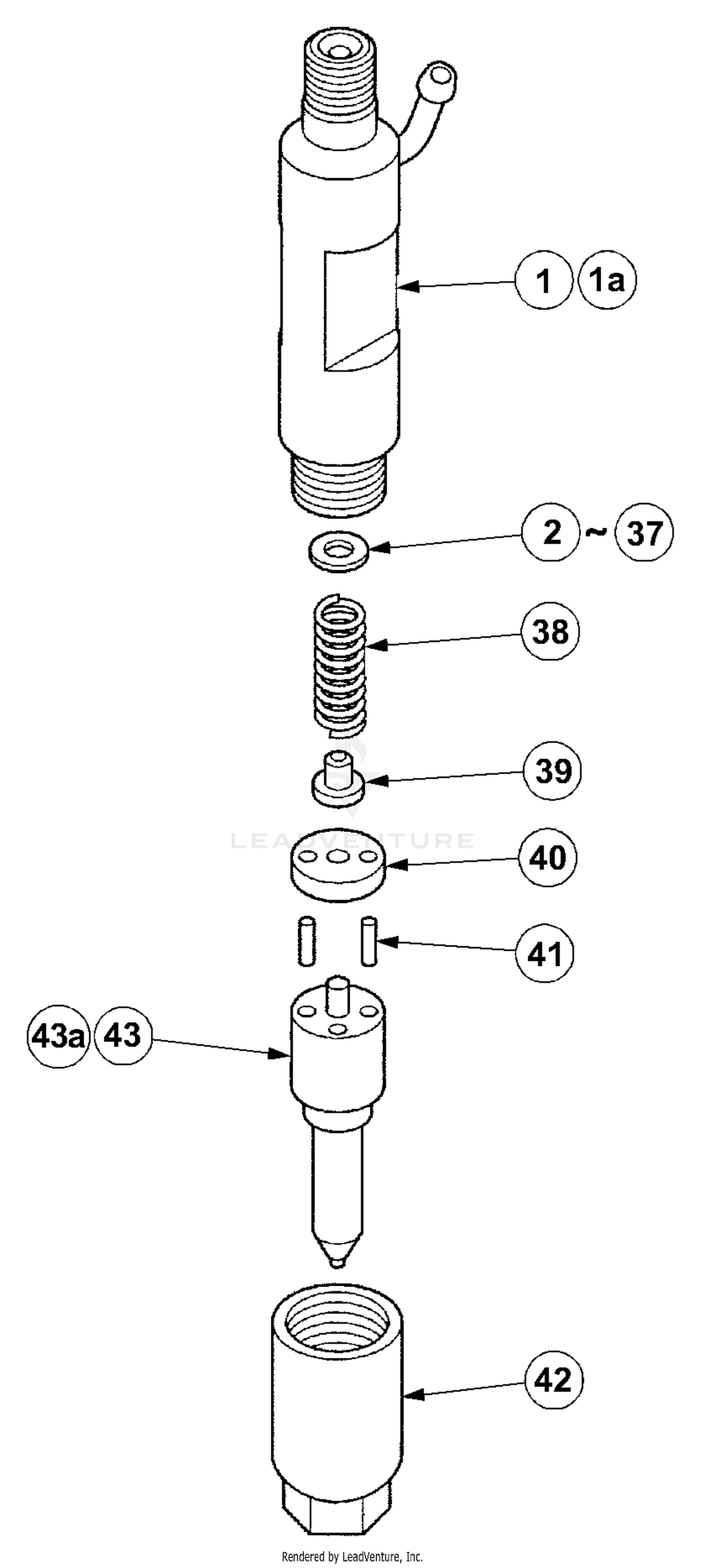

Nozzle & Nozzle Holder
Parts (100)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 539105060 | CLEVIS PIN Price: $4.99 |
| 1 | 76-7010 | RING-RETAINING Price: $3.66 |
| 1A | MA-09311-07910 | Body Sub Ass'y. Price: Call Us |
| 2 | 105-3331 | SEAL-SHAFT This part replaces 94-3008. Price: $35.63 |
| 2 | 596933401 | Washers This part replaces 539991043. Price: $2.99 |
| 2 | MA-09317-52180 | SHIM T=1.0 Not Available Price: |
| 3 | 539105069 | E-RING 5/8 Price: $2.99 |
| 3 | 60-6240 | WASHER This part replaces 94-3007. Price: $15.20 |
| 3 | MA-09317-52190 | SHIM T=1.05 Not Available Price: |
| 4 | 595305901 | Nuts This part replaces 539990546. Price: $2.99 |
| 4 | 76-7000 | RING-RETAINING Price: $7.46 |
| 4 | MA-09317-52200 | SHIM T=1.1 Not Available Price: |
| 5 | 596917701 | Pins This part replaces 539102526. Price: $4.99 |
| 5 | 76-6950 | RACE-THRUST Price: $25.65 |
| 5 | MA-09317-52210 | SHIM T=1.15 Not Available Price: |
| 6 | 539105059 | LANYARD Price: $4.99 |
| 6 | 76-6960 | BEARING-THRUST Price: $23.23 |
| 6 | MA-09317-52220 | SHIM T=1.2 Not Available Price: |
| 7 | 594722002 | LIFT This part replaces 539102641. Price: $4.99 |
| 7 | 94-3004 | SHAFT-DRIVE, SPLINED Price: $564.48 |
| 7 | MA-09317-52230 | SHIM T=1.25 Not Available Price: |
| 8 | 539104321 | ADJ. PLATE WLDMNT Price: $63.99 |
| 8 | 94-3002 | SCREW-CAP Price: $7.19 |
| 8 | MA-09317-52240 | SHIM T=1.3 Not Available Price: |
| 9 | 539104530 | DECK LIFT SPACER Price: $5.99 |
| 9 | 94-3005 | BACKPLATE ASM Price: $1,185.62 |
| 9 | MA-09317-52250 | SHIM T=1.35 Not Available Price: |
| 10 | 539104323 | ADJ. PLATE PAINTED Price: $23.99 |
| 10 | 76-6980 | O-RING Price: $11.28 |
| 10 | MA-09317-52260 | SHIM T=1.4 Not Available Price: |
| 11 | 596434201 | Bolts This part replaces 539990637. Price: $3.99 |
| 11 | 94-3009 | PLUG Price: $34.97 |
| 11 | MA-09317-52270 | SHIM T=1.45 Not Available Price: |
| 12 | 596273101 | Pins This part replaces 539976989. Price: $2.99 |
| 12 | MA-09317-52280 | SHIM T=1.5 Not Available Price: |
| 13 | 596564404 | Bolts This part replaces 539990629. Price: $2.99 |
| 13 | MA-09317-52290 | SHIM T=1.55 Not Available Price: |
| 14 | 539102515 | GRIP Price: $3.99 |
| 14 | MA-09317-52300 | SHIM T=1.6 Not Available Price: |
| 15 | 539108322 | LIFT LEVER WELDMENT Price: $84.99 |
| 15 | MA-09317-52310 | SHIM T=1.65 Not Available Price: |
| 16 | 539105050 | LIFT LINKAGE,PAINTED Price: $23.99 |
| 16 | 94-3003 | PLATE-VALVE Price: $515.64 |
| 16 | MA-09317-52320 | SHIM T=1.7 Not Available Price: |
| 17 | 539101232 | BUSHING, FLANGED Price: $11.99 |
| 17 | 76-6910 | ROTATING KIT Price: $2,143.15 |
| 17 | MA-09317-52330 | SHIM T=1.75 Not Available Price: |
| 18 | 539104761 | GREASE ZERK LONG Price: $2.99 |
| 18 | 76-6970 | INSERT-PLATE, CAM Price: $140.84 |
| 18 | MA-09317-52340 | SHIM T=1.8 Not Available Price: |
| 19 | 539108354 | SHAFT LIFT REAR Price: $108.99 |
| 19 | MA-09317-52350 | SHIM T=1.85 Not Available Price: |
| 20 | 539976982 | WASHER 5/8 FLAT Price: $3.99 |
| 20 | MA-09317-52360 | SHIM T=1.9 Not Available Price: |
| 21 | 539990654 | COTTER PIN Price: $2.99 |
| 21 | MA-09317-52370 | SHIM T=1.95 Not Available Price: |
| 22 | 539104808 | PILLOW BLOCK Price: $7.99 |
| 22 | MA-09317-52380 | SHIM T=2.0 Not Available Price: |
| 23 | 584392702 | REINFORCEMENT.PLATEX431 This part replaces 539104807. Price: $11.99 |
| 23 | MA-09317-52390 | SHIM T=2.05 Not Available Price: |
| 24 | 539991046 | BOLT 5/16C X 2 1/2 Price: $3.99 |
| 24 | MA-09317-52400 | SHIM T=2.1 Not Available Price: |
| 25 | 539108355 | LIFT SHAFT Price: $108.99 |
| 25 | MA-09317-52410 | SHIM T=2.15 Not Available Price: |
| 26 | 596580701 | Nuts This part replaces 539990184. Price: $2.99 |
| 26 | MA-09317-52420 | SHIM T=1.27 Not Available Price: |
| 27 | 539101982 | EYEBOLT, RH Price: $37.99 |
| 27 | MA-09317-52430 | SHIM T=1.32 Not Available Price: |
| 28 | 596039201 | GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 28 | MA-09317-52440 | SHIM T=1.37 Not Available Price: |
| 29 | 539104760 | DECK LIFT SPRING Price: $5.99 |
| 29 | MA-09317-52450 | SHIM T=1.42 Not Available Price: |
| 30 | 539101050 | GRIP Price: $2.99 |
| 30 | MA-09317-52460 | SHIM T=1.47 Not Available Price: |
| 31 | 539104523 | PIN Price: $7.99 |
| 31 | MA-09317-52470 | SHIM T=1.52 Not Available Price: |
| 32 | 539103534 | PIN MT, UPPER Price: $22.99 |
| 32 | MA-09317-52480 | SHIM T=1.57 Not Available Price: |
| 33 | 539101058 | SPRING Price: $3.99 |
| 33 | MA-09317-52490 | SHIM T=1.62 Not Available Price: |
| 34 | 539923787 | BSHG .875 X 1.375 X .074 ZD Price: $2.99 |
| 34 | MA-09317-52500 | SHIM T=1.67 Not Available Price: |
| 35 | 539990761 | NUT 1/4C CENTER LOCK Price: $2.99 |
| 35 | MA-09317-52510 | SHIM T=1.72 Not Available Price: |
| 36 | 539101082 | ROLL PIN 3/16 X 1-1/4 ZD Price: $2.99 |
| 36 | MA-09317-52520 | SHIM T=1.77 Not Available Price: |
| 37 | 596230901 | Screws This part replaces 539990580. Price: $2.99 |
| 37 | MA-09317-52530 | SHIM T=0.95 Not Available Price: |
| 38 | 539101802 | E-RING 7/8 Price: $2.99 |
| 38 | MA-09312-70410 | SPRING Not Available Price: |
| 39 | 539104310 | CONNECTING LINK Price: $22.99 |
| 39 | MA-09312-10480 | PIN Not Available Price: |
| 40 | 539990655 | HCS 3/8C X 1 1/2 Price: $3.99 |
| 40 | MA-09322-10150 | PACKING Not Available Price: |
| 41 | 539105181 | LIFT PEDAL BLK Price: $84.99 |
| 41 | MA-MM501790 | PIN,STRAIGHT Not Available This part replaces MA-94908-23160. Price: |
| 42 | 539105187 | ANTI-SKID PAD Price: $2.99 |
| 42 | MA-09316-41020 | NUT-NOZZLE RETAINI Not Available Price: |
| 43 | 539105184 | TIGHTENING PLATE BLK Price: $37.99 |
| 44 | 596240901 | GSPW Nuts This part replaces 539976979. Price: $2.99 |
