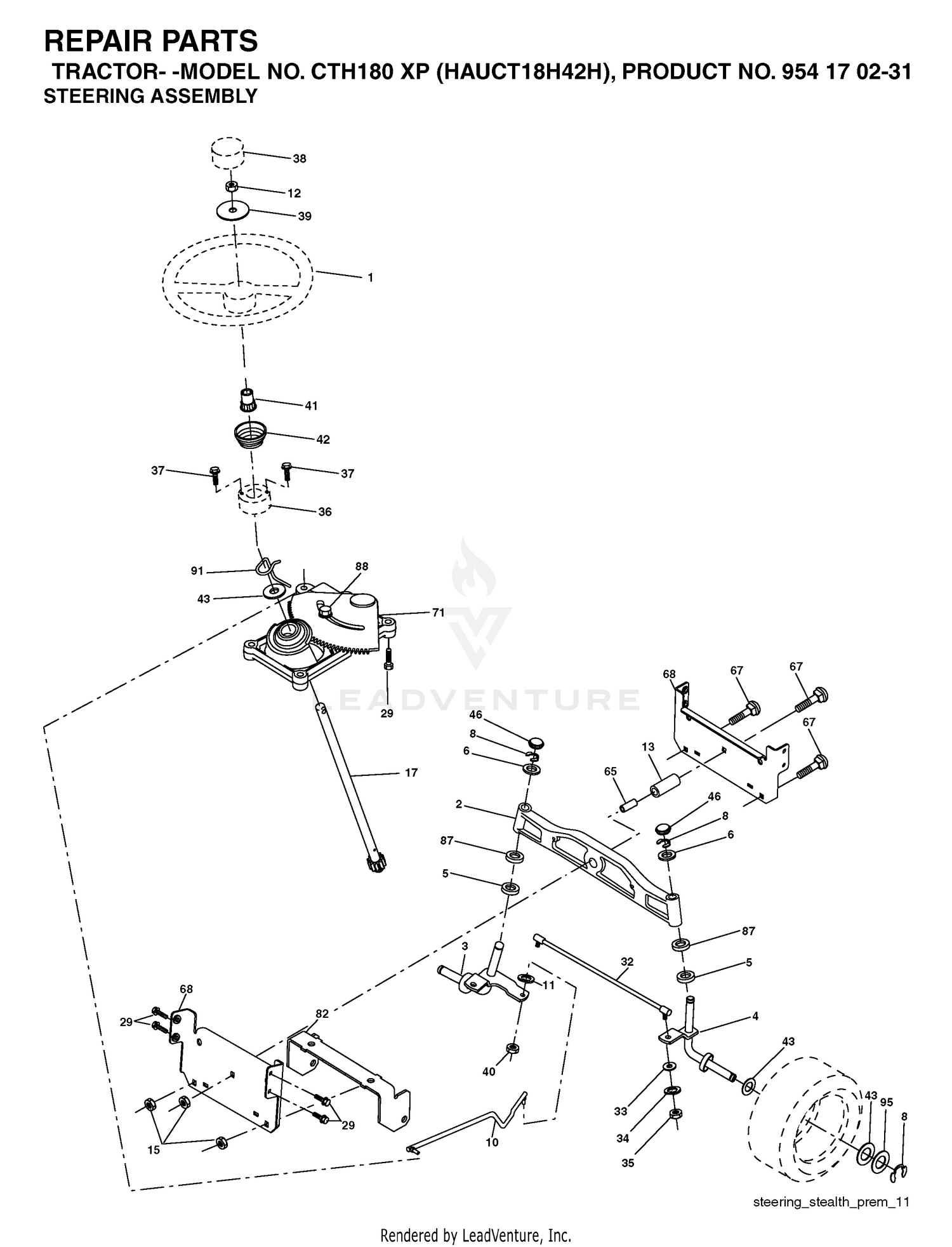

| Ref | Part Number | Description |
|---|
| 1 |
532186094 |
STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $169.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 10 |
112-8404 |
PISTON (STD) Price: $278.43 |
| 10 |
112-8414 |
PISTON (+0.5MM) Price: $265.42 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 17 |
532177883 |
SHAFT ASM STRG Price: $104.99 |
| 20 |
108-1404 |
PISTON RING ASM (+0.5MM) Price: $222.07 |
| 20 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532145207 |
BUSHING STRG 3/4 Price: $4.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 39 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 42 |
532190112 |
NEEDS DESCRIPTION Price: Call Us |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK This part replaces 532195602. Price: $3.99 |
| 50 |
117-7586 |
CONNECTING ROD ASM Price: $547.99 |
| 60 |
115-3014 |
BUSHING-PIN, PISTON Price: $19.81 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 90 |
120-2561 |
CRANKSHAFT ASM Price: $3,034.45 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 120 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 130 |
98-9666 |
KEY Price: $3.58 |
| 140 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 150 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 160 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 170 |
105-3783 |
O-RING Price: $6.33 |
| 180 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9523. Price: $66.99 |
| 180 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 180 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 190 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) Price: $60.46 |
| 190 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 190 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 200 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) Price: $60.46 |
| 200 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) Price: $66.64 |
| 200 |
115-4121 |
METAL-CRANKSHAFT (STD) Price: $86.06 |
| 210 |
127-0416 |
METAL-SIDE (+0.2MM) Price: $21.04 |
| 210 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 210 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 220 |
127-0437 |
METAL-SIDE (+0.2MM) Price: $18.42 |
| 220 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
