Parts Catalog

⚓ Флот 📚 Manuals Replacements 38,231,304 parts

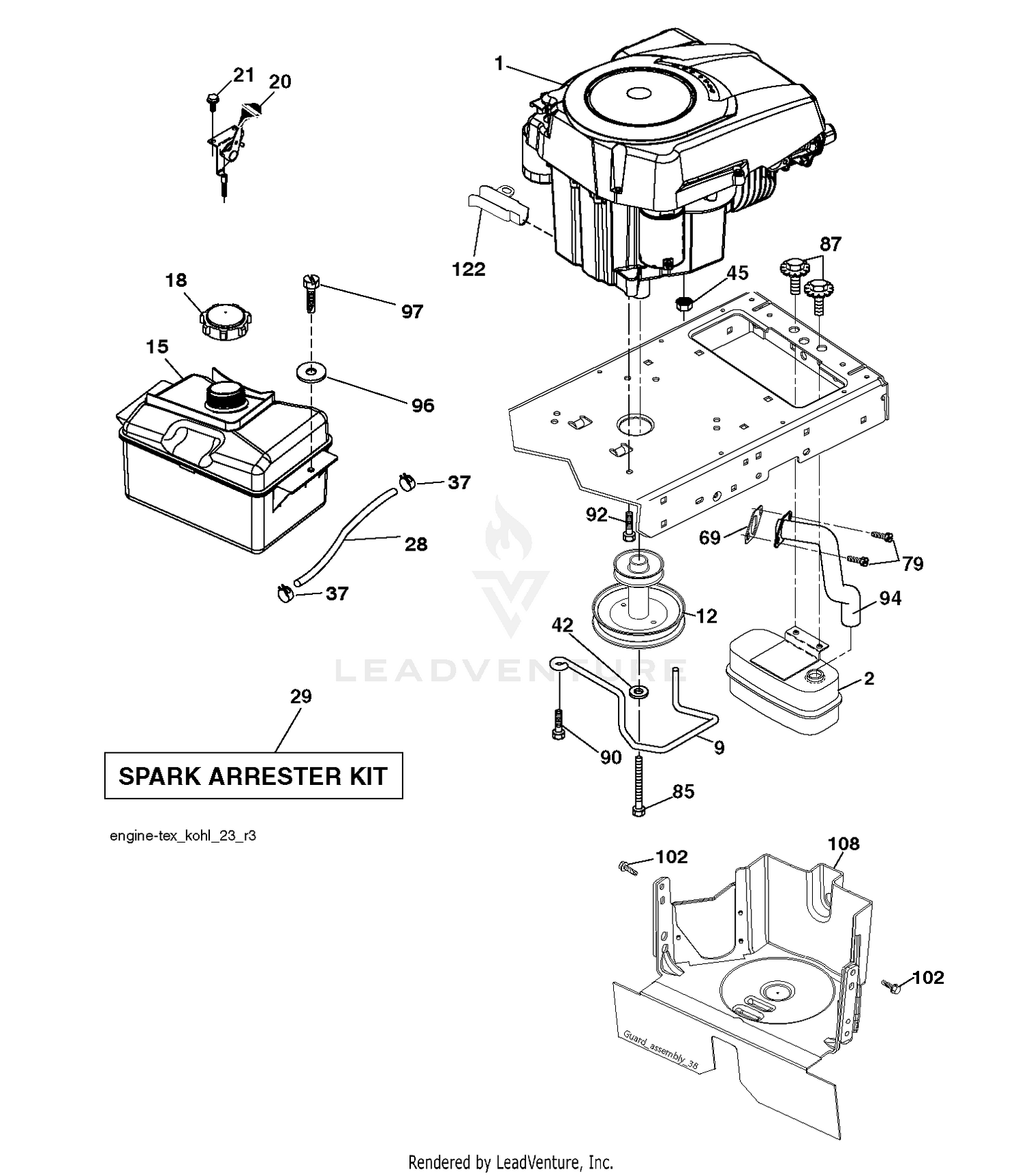

ENGINE

ENGINE

Parts (75)

RefPart NumberDescription
1 75-0430 RING-RETAINING Price: $23.82
2 532188655 MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99
2 75-0150 GUIDE-SEAL Price: $270.30
3 75-0410 O-RING Price: $5.70
4 75-0520 BEARING-BALL Price: $88.98
5 114-5052 HOUSING ASM This part replaces 75-0020. Price: $2,587.20
6 75-0210 O-RING Price: $7.35
7 86-7520 RH TRUNNION COVER ASM Price: $486.26
8 75-0230 SEAL-LIP Price: $80.68
9 596501502 Keepers This part replaces 532194320. Price: $9.99
9 75-0090 CAPSCREW-HH Price: $2.16
10 94-3975 PIN This part replaces 75-0480. Price: $5.80
11 86-7540 SHAFT-PUMP Price: $910.85
12 586478501 ENGINE.PULLEY This part replaces 532405471. Price: $27.99
12 75-0390 DISCONTINUED Price: Call Us
13 75-0400 PLATE-THRUST Price: $41.27
14 75-0470 CYLINDER BLOCK KIT Price: $1,746.91
15 581289901 FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99
15 75-0380 PLATE-VALVE Price: $518.86
16 75-0500 BEARING-NEEDLE Price: $83.78
17 75-0510 PIN Price: $8.40
18 581075501 CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99
18 75-0040 SECTION-CENTER Price: $2,817.90
19 75-0170 PLUG-THREAD, STRAIGHT Price: $18.20
20 532176636 CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99
20 75-0060 PLUG Price: $22.19
21 596321701 Screws This part replaces 532416358. Price: $2.99
21 75-0240 O-RING Price: $2.36
23 75-0260 VALVE-RELIEF Price: $97.16
24 75-0130 DISCONTINUED Price: Call Us
25 75-0300 SCREW VALVE Price: $261.45
26 110-6342 SPRING This part replaces 75-0140. Price: $9.45
27 75-0190 PLUG-SPECIAL Price: $124.62
28 75-0120 CAPSCREW-HH Price: $7.11
29 532137180 KIT.SPARK ARRESTOR 794945 B&S Price: $109.99
29 75-0370 O-RING Price: $10.08
30 75-0360 GEROTOR Price: $430.63
31 75-0350 PIN Price: $8.75
32 83-4780 HOUSING-PUMP, CHARGE Price: $714.23
33 75-0340 BEARING-NEEDLE Price: $86.35
34 75-0330 SEAL-LIP Price: $31.04
35 75-0110 CAPSCREW-HH Price: $2.14
36 75-0180 CAPSCREW-HH Price: $19.18
37 532123487 HOSE CLAMP Price: $3.99
37 75-0320 NIPPLE Price: $89.72
38 67-9090 PLUG This part replaces 75-0200. Price: $41.68
39 75-0270 SPRING Price: $9.79
40 75-0310 SHIM Price: $131.21
41 104-2189 PLUG-THREAD, STRAIGHT This part replaces 75-0070. Price: $24.99
42 596238901 Washers This part replaces 810040700. Price: $2.99
42 75-0280 SPRING Price: $7.03
43 75-0290 DISCONTINUED Price: Call Us
44 93-0083 PLATE-VALVE Price: $477.00
45 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99
45 75-0440 SHAFT-MOTOR Price: $550.98
46 75-0030 GASKET-HOUSING Price: $20.85
47 75-0160 PLUG-PIPE Price: $4.39
48 75-0220 PIN Price: $77.53
49 86-7530 LH TRUNNION COVER ASM Price: $465.32
50 75-0450 COLLAR Price: $44.00
51 75-0460 BEARING-BALL Price: $175.71
52 75-6930 VALVE-SCREW Price: $97.36
53 32120-74 RING-SNAP Price: $0.54
69 532185909 GASKET.EXHAUST.KOHLER Price: $7.99
79 596134201 Screws This part replaces 532192334. Price: $2.99
85 501606501 BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99
87 532171877 BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99
90 817000616 SCREW 3/8-16X1 Price: $5.99
92 817120616 SCREW 3/8-16X1 Price: $4.99
94 583955301 TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99
96 596135301 Washers This part replaces 819091416. Price: $2.99
97 817670412 SCREW HEXWSHR 1/4-20X3/4 Price: $3.99
102 593337601 Screws This part replaces 817060516. Price: $3.99
108 583400501 COVER.PULLEY.ENGINE.SRD.FRENCH This part replaces 532423041. Price: $89.99
122 532421922 EXTENSION DRAIN OIL Price: $24.99
