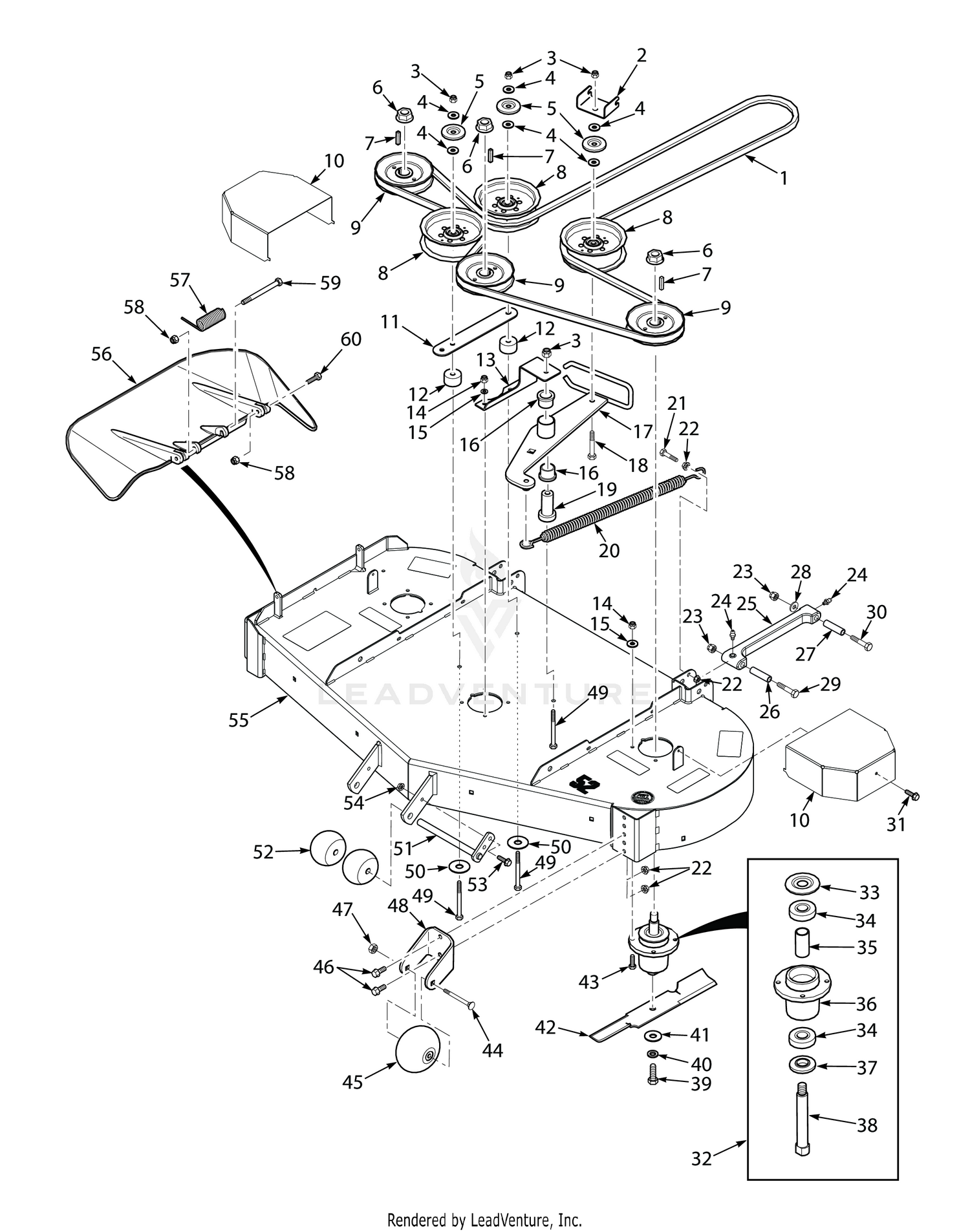

| Ref | Part Number | Description |
|---|
| 1 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 1 |
485350 |
Belt, Cutter Deck -48 Price: Call Us |
| 2 |
25-2500 |
SHAFT-TRUNNION Price: $191.66 |
| 2 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 3 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 3 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 4 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 4 |
28-3300 |
BEARING-ROLLER Price: $137.87 |
| 5 |
252-82 |
BEARING-NEEDLE This part replaces 28-3310. Price: $51.31 |
| 5 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 6 |
04112-06 |
Nut, 3/4-16 Spriral Lock Price: Call Us |
| 6 |
92-5709 |
HOUSING-TRANSMISSION This part replaces 49-7870. Price: $1,947.60 |
| 7 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Pulley Mtg. Price: Call Us |
| 7 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 8 |
28-3670 |
SHAFT-TRUNNION Price: $149.64 |
| 8 |
483422 |
Pulley, 5" Idler Price: Call Us |
| 9 |
483323 |
Pulley, 5.13" OD - 25mm Bore Price: Call Us |
| 9 |
93-4133 |
SEAL-LIP This part replaces 28-3660. Price: $37.43 |
| 10 |
251-8 |
BEARING-BALL This part replaces 28-3650. Price: $30.06 |
| 10 |
426729 |
Belt Cover (52H) Price: Call Us |
| 11 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 11 |
424479 |
Brace, Pulley Price: Call Us |
| 12 |
28-3640 |
SHAFT-PUMP Price: $1,171.13 |
| 12 |
43711 |
Spacer, Idler Pulley Price: Call Us |
| 13 |
25-2450 |
PLATE-SWASH, VARIABLE This part replaces 49-7820. Price: $896.81 |
| 13 |
424548 |
Support, Idler Pivot - 48 Price: Call Us |
| 14 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 14 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 15 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 15 |
25-2380 |
PLATE-THRUST This part replaces 49-7860. Price: $32.89 |
| 16 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 16 |
483453-03 |
Bearing, Plastic Price: Call Us |
| 17 |
46-7320 |
PLATE-VALVE, PUMP Price: $418.46 |
| 18 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 18 |
25-3300 |
BEARING-NEEDLE Price: $107.05 |
| 19 |
28-3590 |
O-RING Price: $4.60 |
| 19 |
43708 |
Pivot, Idler Price: Call Us |
| 20 |
28-3580 |
RING-BACK UP Price: $20.88 |
| 20 |
483375 |
Spring, Cutter Deck Idler Price: Call Us |
| 21 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 21 |
28-3570 |
O-RING Price: $6.06 |
| 22 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 22 |
49-7830 |
CHECK VALVE KIT Price: $311.16 |
| 23 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 23 |
25-2460 |
PLUG-HH Price: $37.38 |
| 24 |
28-3400 |
O-RING Price: $6.67 |
| 24 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 25 |
25-2470 |
PACK-SHIM This part replaces 49-7840. Price: $47.36 |
| 26 |
43985 |
Spacer, Pusharm - Deck Price: Call Us |
| 26 |
46-7310 |
SPRING Price: $18.78 |
| 27 |
43986 |
Spacer, Pusharm - Axle Price: Call Us |
| 27 |
83-7260 |
CONE-RELIEF, CHARGE This part replaces 28-3420. Price: $50.57 |
| 28 |
04040-07 |
Flatwasher, 1/2 - .531 x 1.062 x .095 Price: Call Us |
| 28 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 29 |
04001-145 |
Bolt, Hex Head 1/2-13 x 3-1/2" Price: Call Us |
| 29 |
323-8 |
SCREW-HH Price: $1.20 |
| 30 |
04001-52 |
Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower) Price: Call Us |
| 30 |
28-3530 |
CAPSCREW Price: $4.00 |
| 31 |
04011-29 |
Screw, 1/4-20 x .375" (52H) Price: Call Us |
| 31 |
28-3520 |
O-RING Price: $8.44 |
| 32 |
38-2680 |
PIN Price: $23.93 |
| 32 |
461950 |
Spindle Assembly Price: Call Us |
| 33 |
28-3480 |
BEARING Price: $74.83 |
| 33 |
483304 |
Debris Shield Price: Call Us |
| 34 |
28-3470 |
SEAL-LIP Price: $39.09 |
| 34 |
483303 |
Bearing Price: Call Us |
| 35 |
43693 |
Spacer, Bearing Price: Call Us |
| 35 |
92-1773 |
SCREW-HHF This part replaces 324-23. Price: $3.05 |
| 36 |
28-3450 |
WASHER Price: $0.25 |
| 37 |
117-6988 |
CHARGE PUMP KIT This part replaces 38-2670. Price: $1,753.04 |
| 37 |
43694 |
Protector, Bearing Price: Call Us |
| 38 |
25-2660 |
UNION-FILTER Price: $14.61 |
| 38 |
43695 |
Shaft, Spindle Price: Call Us |
| 39 |
04001-121 |
Bolt, Hex Head 5/8-11 x 1-1/2" Price: Call Us |
| 39 |
92-5716 |
SECTION-CENTER This part replaces 49-7850. Price: $2,472.04 |
| 40 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 40 |
46-7280 |
DISCONTINUED Price: Call Us |
| 41 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 42 |
136-3219 |
PLUG ASM This part replaces 28-3440. Price: $21.54 |
| 42 |
482877 |
Cutter Blade, 16-1/2" Price: Call Us |
| 43 |
04001-175 |
Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8 Price: Call Us |
| 43 |
323-10 |
SCREW-HH Price: $0.89 |
| 44 |
04003-26 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 44 |
25-2480 |
SPRING-VALVE Price: $4.93 |
| 45 |
28-3380 |
PLATE-VALVE, MOTOR Price: $468.61 |
| 45 |
481632 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 46 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 46 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 47 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 47 |
49-8200 |
SHAFT-MOTOR Price: $1,051.65 |
| 48 |
353-599 |
PIN-DOWEL This part replaces 28-3350. Price: $2.65 |
| 48 |
427865 |
Bracket, Anti-Scalp, (Black) Price: Call Us |
| 49 |
04001-77 |
Bolt, Hex Head, 3/8-16 x 3-1/2" Price: Call Us |
| 50 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .1875 Price: Call Us |
| 51 |
451926 |
Shaft Weldment, Guide Roller Price: Call Us |
| 52 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 53 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 54 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 55 |
463263 |
CUTTER DECK W/ DECALS, SMZL-48H This part replaces 463334. Price: Call Us |
| 56 |
462031 |
Discharge Chute Assy. SFZ48 Price: Call Us |
| 57 |
482245 |
Spring, Discharge Chute Price: Call Us |
| 58 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 59 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
