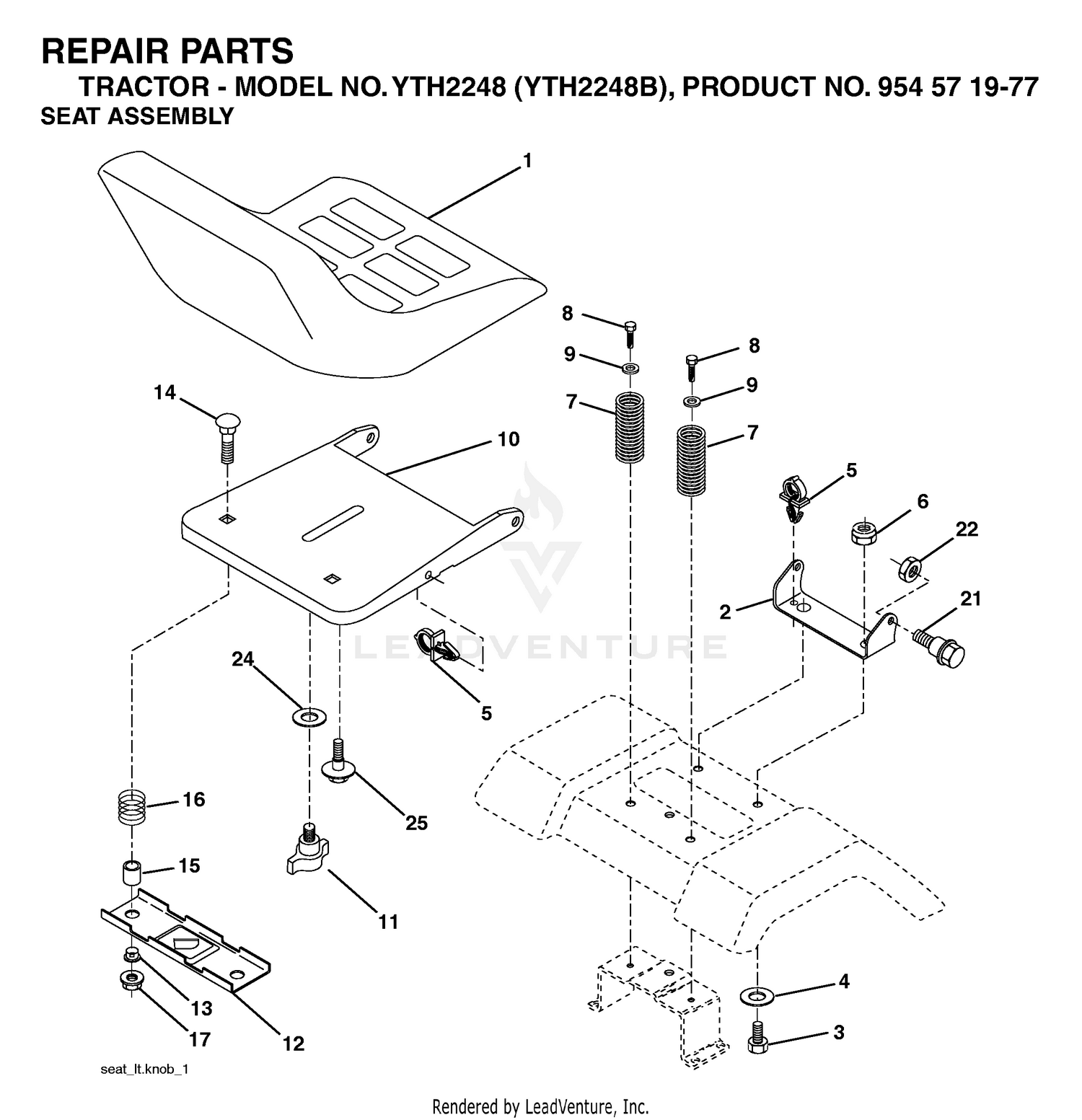

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 1 |
95-9200 |
PLUG Price: $4.78 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
95-9198 |
O-RING Price: $9.31 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 3 |
95-9197 |
E-CLIP Price: $4.77 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 4 |
95-9199 |
O-RING Price: $14.65 |
| 5 |
108-3264 |
SEAL-VITON Price: $10.14 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
108-3265 |
O-RING-VITON Price: $10.82 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
95-9196 |
TURRET Price: $15.10 |
| 8 |
41003 |
DIAPHRAGM Price: $1.90 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
95-9193 |
CAP-DIAPHRAM Price: $8.30 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 |
95-9192 |
BODY-SPLIT EYELET Price: $14.45 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
95-9191 |
O-RING Price: $1.86 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
99-0811 |
SCREW-CLAMP Price: $8.69 |
| 13 |
99-0812 |
CLAMP-UPPER Price: $5.84 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 14 |
99-0814 |
PIN-PIVOT Price: $2.90 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
95-9201 |
SHANK-HOSE Price: $7.82 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
