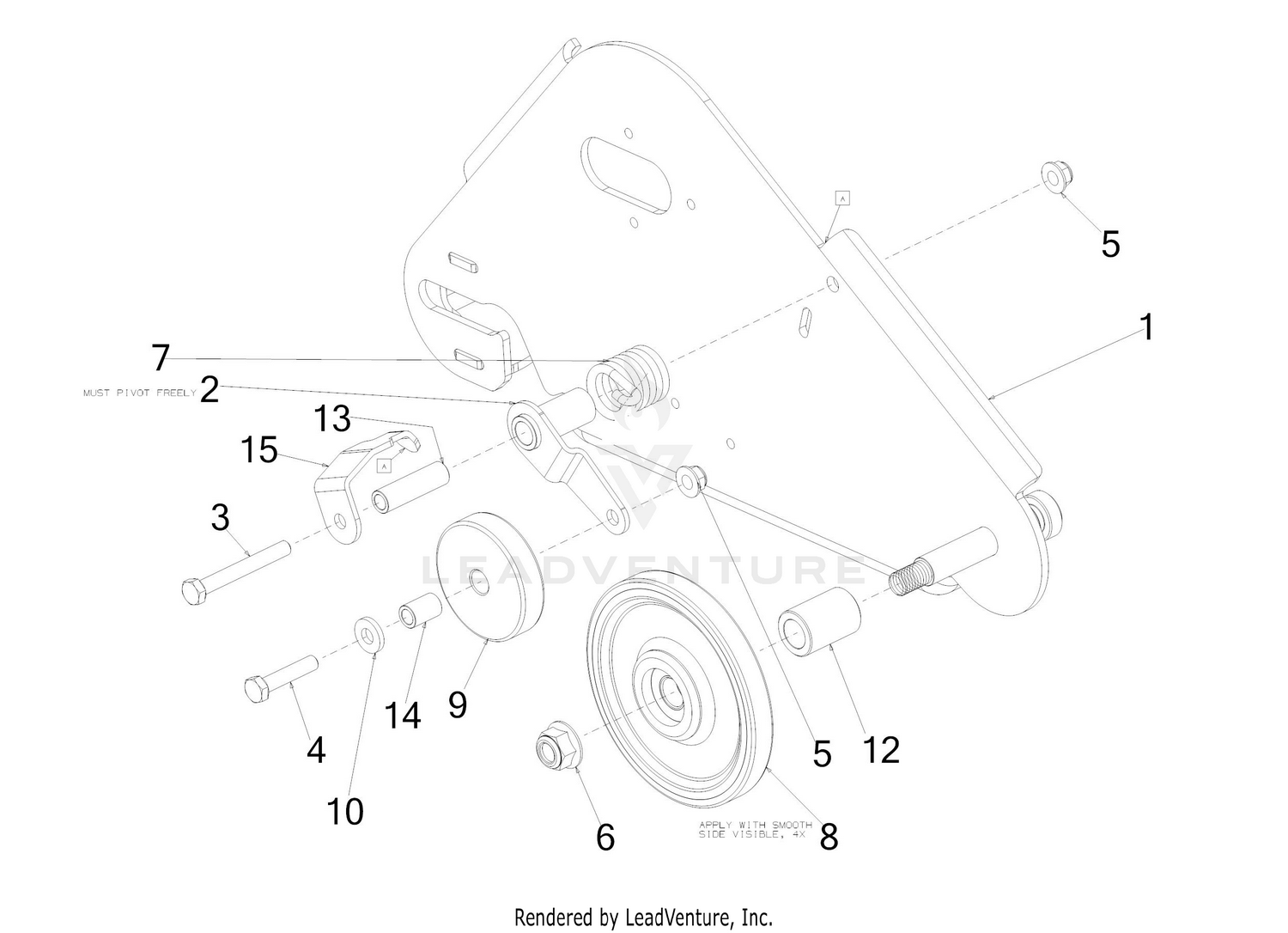

Track Assembly (RH)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 684-05034A-0637 | PLATE ASSEMBLY-TRACK (RH) Price: $93.12 |
| 2 | 684-05052-0637 | TENSION BRACKET Price: $16.76 |
| 3 | 710-0378 | SCREW 5/16-18 x 2.5 GR 5 Price: $4.09 |
| 4 | 710-0805A | SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 5 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 6 | 712-04150 | NUT Price: $3.74 |
| 7 | 732-05145 | TORSION SPRING Price: $5.59 |
| 8 | 734-05046 | WHEEL-5.00 OD BB Price: $42.65 |
| 9 | 734-05058 | WHEEL-TRACK TENSION Price: $6.49 |
| 10 | 936-3008 | FLAT WASHER Price: $6.24 |
| 12 | 750-06090 | SPACER Price: $5.59 |
| 13 | 750-06169 | SLEEVE .33X.50X1.73 LG Price: $4.64 |
| 14 | 750-06170 | SLEEVE .33X.50X.75 LG Price: $4.64 |
