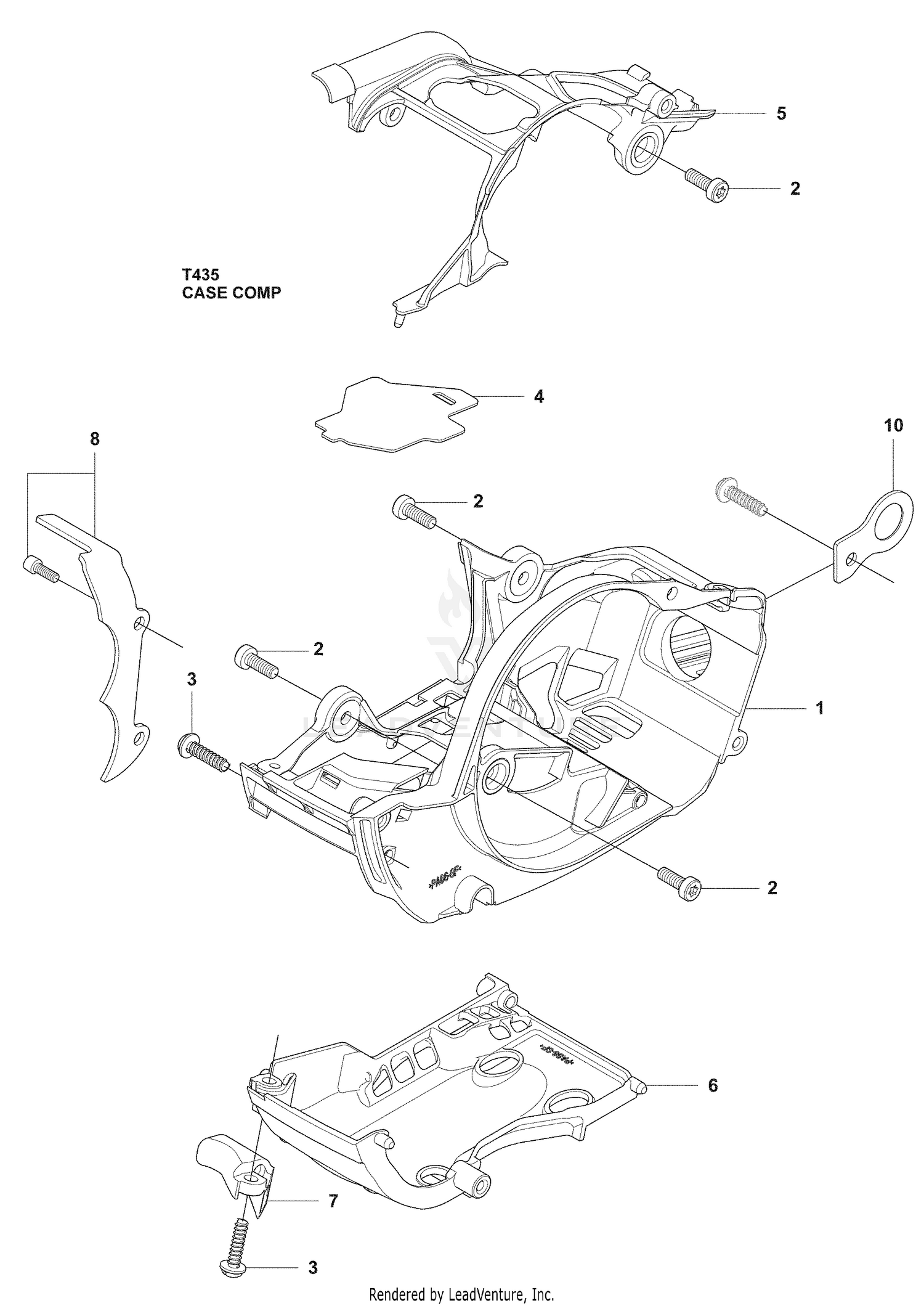

| Ref | Part Number | Description |
|---|
| 1 |
522001101 |
CASE COMP Price: $59.99 |
| 1 |
82-2850 |
PLATE Price: $21.91 |
| 2 |
521516201 |
BOLT Price: $2.99 |
| 2 |
82-9680 |
RIVET Price: $0.98 |
| 3 |
521518001 |
SCREW (RPLS 267132210) Price: $2.99 |
| 3 |
82-9700 |
SCREW Price: $1.58 |
| 4 |
522641201 |
GASKET Price: $2.99 |
| 4 |
82-2730 |
WEAR PARTS KIT Price: $67.73 |
| 5 |
522001201 |
COVER TOP Price: $14.99 |
| 5 |
82-2740 |
TENSION SPRING SET Price: $72.36 |
| 6 |
56-4150 |
LEVER Price: $71.57 |
| 6 |
577104901 |
GUARD This part replaces 522001601. Price: $44.99 |
| 7 |
522012101 |
CATCHER (RPLS -66F1) Price: $3.99 |
| 7 |
82-2870 |
LEVER-ADJUST Price: $43.38 |
| 8 |
527683001 |
BUMPER This part replaces 522634701. Price: $8.99 |
| 12 |
82-2800 |
CUSHION-REST, BACK Price: $418.29 |
| 13 |
56-3850 |
SCREW Price: $3.37 |
| 14 |
55-4330 |
LH ARMREST ASM Price: $146.35 |
| 15 |
82-2840 |
CUSHION-BOTTOM Price: $555.71 |
| 16 |
92-2951 |
RAIL-ADJUST, LH Price: $199.04 |
| 17 |
82-9690 |
SCREW Price: $2.67 |
| 18 |
56-4030 |
DISCONTINUED This part replaces 82-9660. Price: Call Us |
| 19 |
82-9650 |
NUT Price: $8.89 |
| 20 |
82-2820 |
SWING ARM ASM Price: $422.94 |
| 21 |
82-2790 |
RAIL-ADJUST, LH Price: $212.20 |
| 22 |
82-9710 |
TRIM-BOTTOM Price: $54.09 |
| 23 |
82-2720 |
FRAME-SEAT Price: $1,045.27 |
| 24 |
82-9640 |
SCREW Price: $0.98 |
| 25 |
82-2810 |
SWITCH ASM Price: $336.01 |
| 26 |
82-9620 |
DISCONTINUED Price: Call Us |
| 27 |
82-9630 |
NUT Price: $1.24 |
| 29 |
56-4170 |
PIN Price: $24.96 |
| 30 |
56-3890 |
NUT Price: $4.04 |
| 31 |
56-3880 |
WASHER Price: $1.33 |
| 32 |
82-9720 |
TRIM-REST, BACK Price: $39.95 |
| 33 |
82-2860 |
SPRING-SET, TENSION Price: $19.71 |
| 34 |
82-2750 |
DISCONTINUED Price: Call Us |
| 35 |
82-2710 |
SCREW Price: $8.39 |
| 37 |
82-2830 |
CLAMP Price: $13.33 |
| 38 |
82-2770 |
SHOCK ABSORBER ASM Price: $221.09 |
| 39 |
82-9670 |
NUT Price: $0.93 |
| 40 |
56-3940 |
WASHER Price: $1.33 |
| 41 |
82-2760 |
BUSHING KIT Price: $9.67 |
