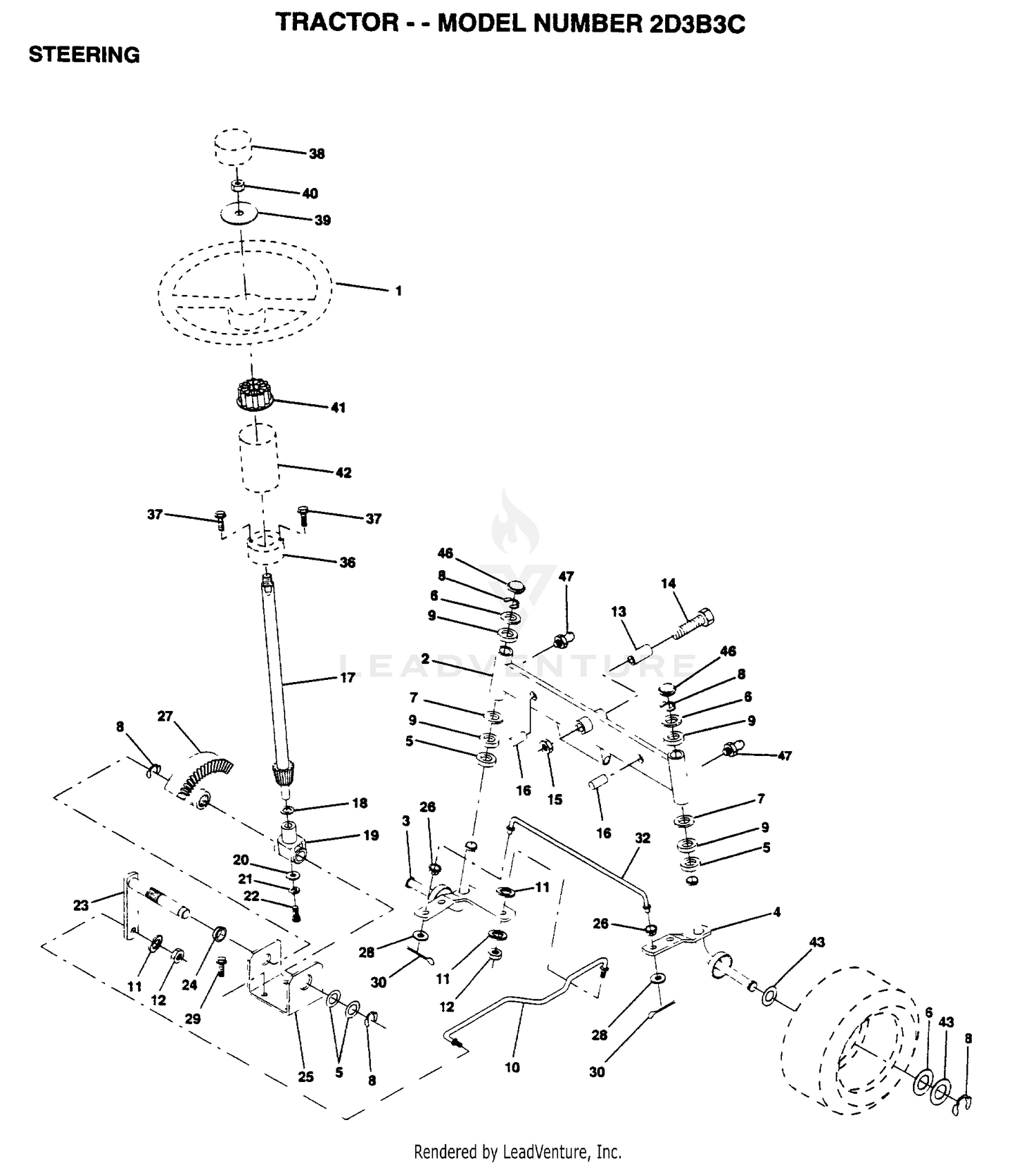

| Ref | Part Number | Description |
|---|
| 1 |
133741 |
SUB= 150547 Price: Call Us |
| 1 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 2 |
142033 |
AXLE ASM FRONT Price: Call Us |
| 2 |
99-5610 |
PIN Price: $40.16 |
| 3 |
135227 |
SPINDLE LH Price: Call Us |
| 3 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 4 |
135228 |
SPINDLE RH Price: Call Us |
| 4 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 5 |
6266H |
WASHER .T Price: Call Us |
| 5 |
93-2704-03 |
LINK-LEFT This part replaces 93-2704. Price: $23.18 |
| 6 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 6 |
121748X |
WASHER Price: Call Us |
| 7 |
19272016 |
WASHER Price: Call Us |
| 7 |
98-8823 |
LINK Price: $239.39 |
| 8 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 8 |
12000029 |
RING Price: Call Us |
| 9 |
3366R |
COL. SRTG. BEAR. Price: Call Us |
| 9 |
67-1750 |
BUSHING Price: $0.92 |
| 10 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 10 |
130468 |
SUB= 532130468 Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 12 |
73610600 |
SUB= 7810H Price: Call Us |
| 12 |
99-5621 |
GUIDE-HOSE Price: $34.45 |
| 13 |
110438X |
BEARING Price: Call Us |
| 13 |
33114-020 |
SCREW-HH Price: $0.28 |
| 14 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 14 |
74011056 |
BOLT HEX 5/8-11 Price: Call Us |
| 16 |
132624 |
AXLE PIN Price: Call Us |
| 16 |
33108-035 |
SCREW-HHF Price: $24.13 |
| 17 |
132614 |
SHAFT ASM Price: Call Us |
| 17 |
32128-33 |
NUT-HF Price: $0.25 |
| 18 |
57079 |
THRUST WASHER Price: Call Us |
| 18 |
93-2699 |
PIN Price: $48.15 |
| 19 |
124035X |
SUPPORT.SHAFT Price: Call Us |
| 19 |
33029-00 |
NUT-LOCK, NI Price: $2.92 |
| 20 |
126684X |
SUB= 532126684 Price: Call Us |
| 20 |
98-8821 |
LINK-REAR Price: $30.71 |
| 21 |
10040400 |
LOCKWASHER Price: Call Us |
| 21 |
3229-28 |
SCREW-CARR Price: $0.81 |
| 23 |
127501 |
SUB= 918127501 Price: Call Us |
| 23 |
138-6956 |
CYLINDER ASM-HYDRAULIC This part replaces 93-2631. Price: $692.61 |
| 24 |
109816X |
NYLINER T Price: Call Us |
| 24 |
93-2700 |
ROLLER-PLASTIC Price: $30.55 |
| 25 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 26 |
126847X |
BUSHING.DRAGLINK Price: Call Us |
| 26 |
94-1449 |
FITTING-STR,ORIF Price: $112.90 |
| 27 |
105-3358 |
NO. 7 LIFT ARM ASM Price: $1,014.80 |
| 27 |
136874 |
GEAR SECTOR Price: Call Us |
| 28 |
105-3357 |
NO. 6 LIFT ARM ASM Price: $1,014.17 |
| 28 |
19131416 |
WASHER Price: Call Us |
| 29 |
17490612 |
SCREW Price: Call Us |
| 29 |
340-78 |
NUT-LOCK Price: $1.63 |
| 30 |
104-3740 |
DISCONTINUED Price: Call Us |
| 30 |
76020412 |
COTTER PIN Price: Call Us |
| 31 |
104-3747 |
DISCONTINUED Price: Call Us |
| 32 |
130465 |
TIE ROD Price: Call Us |
| 32 |
94-1444 |
UNION-BULKHEAD Price: $33.59 |
| 33 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 34 |
92-7643 |
HYD HOSE ASM Price: $118.39 |
| 35 |
147-6067 |
PIVOT PIN ASM This part replaces 98-8826. Price: $44.62 |
| 36 |
132196 |
SUB= 155106 Price: Call Us |
| 36 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 37 |
17431008 |
SUB= 98000165 Price: Call Us |
| 37 |
2412-93 |
CLAMP-R Price: $1.02 |
| 38 |
133742 |
ST WHL INSERT CAP Price: Call Us |
| 38 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 39 |
19133808 |
WASHER T Price: Call Us |
| 39 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 40 |
7810H |
GRIPCO NUT Price: Call Us |
| 40 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 41 |
104820X |
ADAPTER-WHEEL LT Price: Call Us |
| 41 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 42 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 43 |
121749X |
WASHER Price: Call Us |
| 43 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 44 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 45 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 46 |
105-3342-03 |
NO. 7 SUPPORT ARM ASM Price: $1,187.34 |
| 46 |
121232X |
CAP Price: Call Us |
| 47 |
105-3341-03 |
NO. 6 SUPPORT ARM ASM Price: $1,033.97 |
| 48 |
105-3343 |
BRACKET-SWITCH Price: $32.88 |
