| Ref | Part Number | Description |
|---|

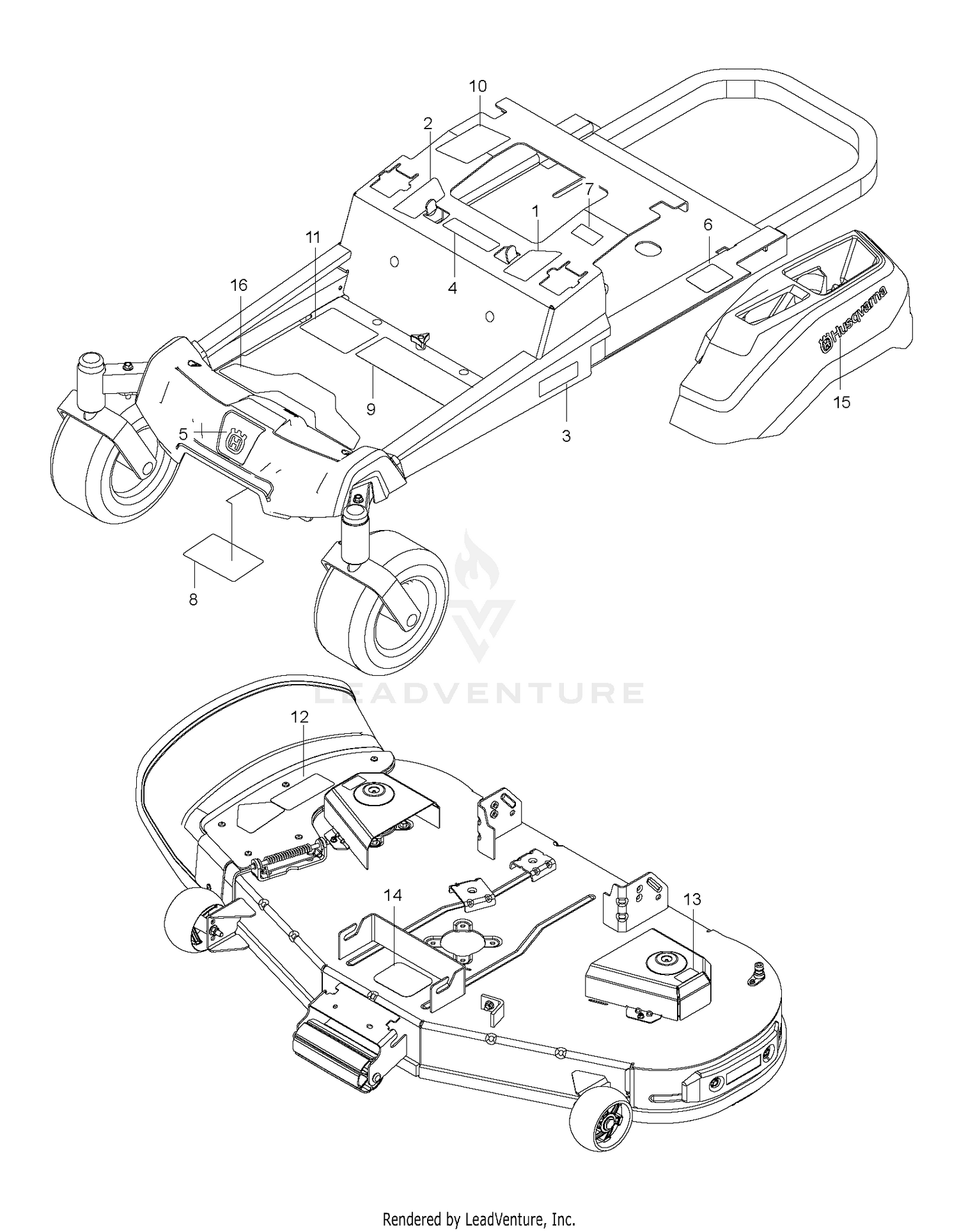

| 1 |
587595601 |
DECAL.ZTR.RZ.THRTL/PRKBRK.V2.L Price: $2.99 |
| 1 |
68-6824 |
DISCONTINUED Price: Call Us |
| 2 |
587595501 |
DECAL.ZTR.RZ.THRTL/PRKBRK.V2.R Price: $2.99 |
| 2 |
68-6910-03 |
RH STEERING ARM ASM This part replaces 68-6910. Price: $213.93 |
| 3 |
3296-4 |
NUT-LOCK This part replaces 3296-43. Price: $0.25 |
| 3 |
587220301 |
DECAL.ZTR.SIDERAIL.MN.Z248F.HU Price: $2.99 |
| 4 |
3220-5 |
NUT-JAM Price: $0.65 |
| 4 |
529527001 |
Decals This part replaces 539105745. Price: $2.99 |
| 5 |
3210-7 |
SCREW-HH Price: $0.61 |
| 5 |
532428677 |
DECAL.BADGE.55MM.CROWNH.HUSQ Price: $5.99 |
| 6 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 6 |
585142401 |
DECAL.ZTR.DONOTTOW.EN/FR.2014 This part replaces 539108385. Price: $1.99 |
| 7 |
108-1340-03 |
ROD END-BALL JOINT This part replaces 68-6870. Price: $163.94 |
| 7 |
539108386 |
DECAL, EXITING MOWER Price: $3.99 |
| 8 |
105-7835 |
SEAL This part replaces 71-4760. Price: $2.76 |
| 8 |
539109803 |
RZ SERVICE DECAL This part replaces 539109897. Price: $2.99 |
| 9 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 10 |
32136-13 |
NUT-SHH Price: $2.85 |
| 10 |
532423829 |
DECAL.WARNING.CUST.RESP.E85. Price: $14.99 |
| 11 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 11 |
588035001 |
DECAL.ZTR.STARTINS.READYSTART Price: $3.99 |
| 12 |
585302001 |
DECAL.DECK.6MIL.DEFLT/WARN.E/F This part replaces 586978801. Price: $3.99 |
| 12 |
71-4530-03 |
DISCONTINUED This part replaces 71-4750. Price: Call Us |
| 13 |
589357902 |
NEEDS DESCRIPTION This part replaces 589357901. Price: $1.99 |
| 13 |
67-1750 |
BUSHING Price: $0.92 |
| 14 |
539112620 |
DECAL, BELT ROUTING Price: $4.99 |
| 14 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 15 |
577469001 |
DECAL.HUSQVARNA.210MM Price: $11.99 |
| 15 |
68-6990-03 |
DISCONTINUED This part replaces 68-6990. Price: Call Us |
| 16 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 16 |
587000701 |
PAD.RZ.FOOTREST.PLATE Price: $9.99 |
| 17 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 18 |
68-6930-03 |
LH STEERING ARM ASM This part replaces 68-6930. Price: $159.13 |
| 19 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 20 |
71-4740-03 |
RH TIE ROD END ASM This part replaces 71-4740. Price: $163.79 |
| 21 |
323-9 |
SCREW-HH Price: $1.29 |
| 22 |
231-122 |
TIRE-4-PLY Price: $126.99 |
| 23 |
71-4450 |
BOLT-LUG Price: $3.29 |
| 24 |
217-106 |
WHEEL-8 INCH Price: $141.58 |
| 25 |
5108 |
VALVE This part replaces 232-31. Price: $6.29 |
| 26 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 27 |
48-7960 |
NUT Price: $1.40 |
| 28 |
71-4690 |
SCREW-HH Price: $3.65 |
| 29 |
32151-87 |
RING-RETAINING Price: $1.22 |
| 30 |
71-4590 |
WASHER-THRUST Price: $3.32 |
| 31 |
71-4580 |
BEARING Price: $80.51 |
| 32 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 33 |
71-4570-03 |
HOUSING-CLUTCH, ROLLER This part replaces 71-4570. Price: $367.36 |
| 34 |
253-155 |
SEAL-OIL Price: $14.36 |
| 35 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 36 |
284-3 |
PLUG Price: $7.14 |
| 37 |
76-4690-03 |
COUPLING-AXLE This part replaces 76-4690. Price: $318.79 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
3274-64 |
SCREW-HSH This part replaces 3274-8. Price: $1.02 |
| 41 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 42 |
5-1226 |
WASHER Price: $3.90 |
| 43 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 44 |
322-8 |
SCREW-HH Price: $1.26 |
| 45 |
93-1395-03 |
PLATE/SKID, CASTING This part replaces 93-1395. Price: $39.57 |
| 46 |
33114-030 |
SCREW-HH This part replaces 48-7730. Price: $0.50 |
