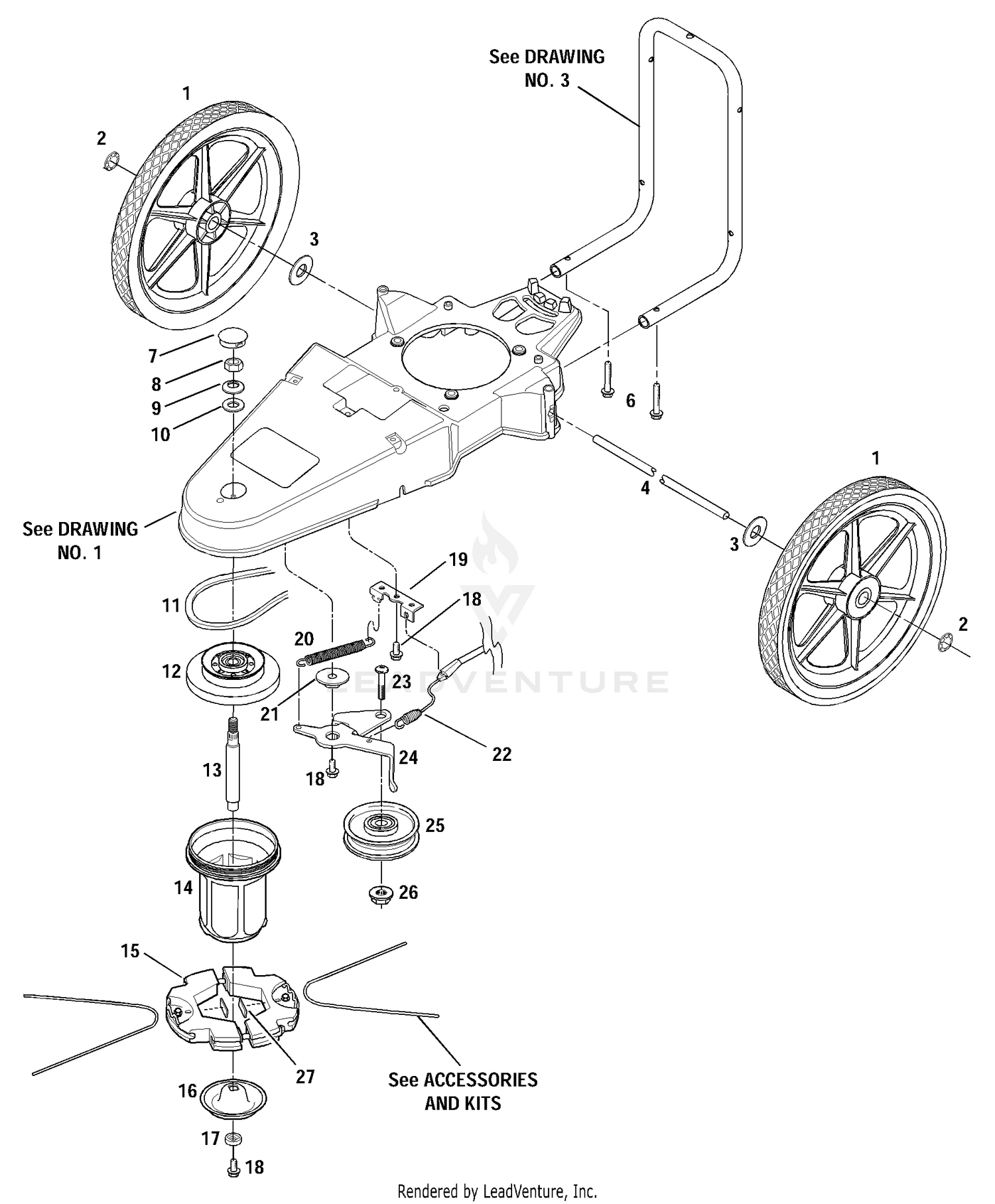

| Ref | Part Number | Description |
|---|
| 1 |
1917778 |
WHEEL-16SP Not Available Price: |
| 2 |
726-0221 |
Speed Nut, .500 This part replaces 1917593. Price: $5.34 |
| 3 |
1917775 |
FLAT WASHER .5 ID Not Available Price: |
| 4 |
1917258 |
AXLE (52027) Not Available Price: |
| 6 |
1918069 |
SCR-HH SEL Not Available Price: |
| 7 |
1917588 |
CAP PLUG Not Available Price: |
| 8 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61 |
| 9 |
GW-9928 |
WASHER-disc spring (concave). Dome side of washer faces bolt head This part replaces 9928. Price: $11.23 |
| 10 |
1917745 |
WASHER.562X1.312 x .109HARD Not Available Price: |
| 11 |
1917579 |
V-Belt Price: $24.96 |
| 13 |
1917581 |
SPINDLE SHAFT KNURLED ZP 52056 Not Available Price: |
| 16 |
1915220001 |
WEAR CUP Not Available Price: |
| 17 |
1917599 |
Square Washer Price: $25.16 |
| 18 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 1724491. Price: $3.34 |
| 19 |
1917573 |
CABLE BRACKET MOUNT P Not Available Price: |
| 20 |
1910849 |
SPRING-TENSION IDL Not Available Price: |
| 21 |
748-04087A |
Forward Idler Pivot Spacer This part replaces 1917746. Price: $5.66 |
| 22 |
1917589P |
CLUTCH CABLE CONTROL This part replaces 1917589. Price: $69.03 |
| 23 |
1910857 |
Button Hd. Screw, 3/8-16 x 1-1/2 Price: Call Us |
| 24 |
1917572 |
ARM-IDLER PLATED Not Available Price: |
| 25 |
1910855 |
IDLER PULLEY Not Available Price: |
| 26 |
1186393 |
Flange Lock Nut, 3/8-16 Price: $2.63 |
