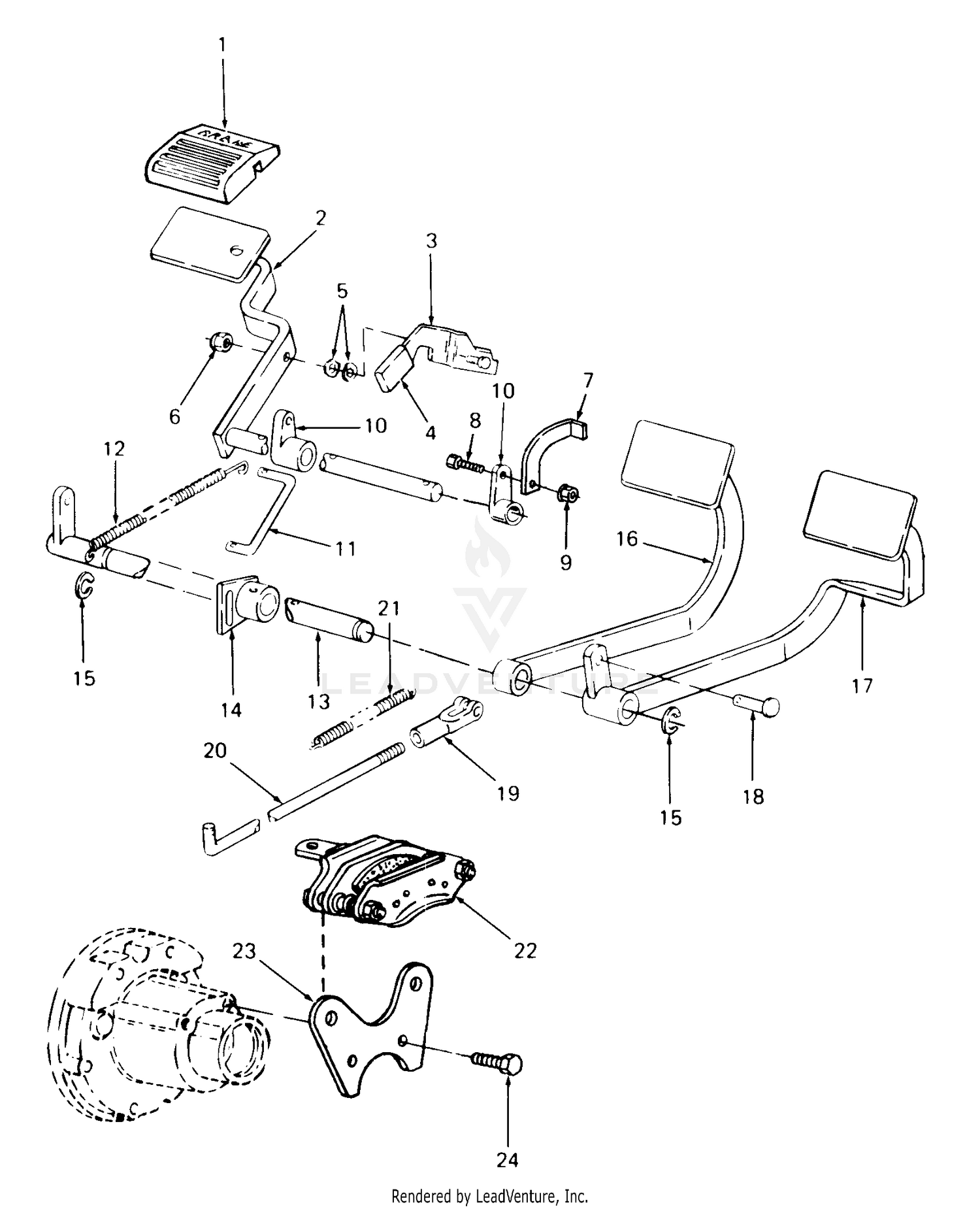

| Ref | Part Number | Description |
|---|
| 1 |
924-3000 |
BRAKE & CLUTCH PEDAL PAD This part replaces 724-3004. Price: $17.21 |
| 2 |
703-0848 |
PEDAL ASSY, BRAKE Not Available Price: |
| 3 |
703-1393 |
BRACKET, PARKING BRAKE Not Available Price: |
| 4 |
920-3019 |
PARKING BRAKE GRIP Not Available This part replaces 720-3019. Price: |
| 5 |
736-3001 |
WAVE WASHER Not Available Price: |
| 5 |
93-6836 |
TUBE ASM Price: $166.85 |
| 6 |
712-0324 |
Nut, Hex Insert Lock, 1/4-20 Price: $3.38 |
| 7 |
703-2280-0637 |
START SWITCH BRACKET (POWDER BLACK) Not Available This part replaces 703-2280. Price: |
| 8 |
710-0216 |
Bolt, 3/8 X 3/4 Type 5 This part replaces 710-3000. Price: $3.93 |
| 9 |
712-3005 |
Nut, Hex Flanged Lock, 3/8-16 GR5 Price: $5.99 |
| 10 |
748-3006 |
BRAKE LEVER ROD Not Available Price: |
| 11 |
747-3023 |
ROD-CENTER BRAKE Not Available Price: |
| 12 |
932-3010 |
EXTENSION SPRING 7.32LG x .50 O.D. Not Available This part replaces 732-3010. Price: |
| 13 |
703-0223 |
BRAKE SHAFT ASSEMBLY Not Available Price: |
| 14 |
354-79 |
CAP-DUST Price: $7.81 |
| 14 |
703-0225 |
ARM ASSEMBLY-PARK B Not Available Price: |
| 15 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 15 |
716-3001 |
Ring, Retaining Price: $3.96 |
| 16 |
703-0412 |
PEDAL ASSY, LH - BRAKE Not Available Price: |
| 16 |
93-6837 |
TUBE ASM Price: $246.71 |
| 17 |
340-152 |
CAP-HYD Price: $13.80 |
| 17 |
703-0416 |
PEDAL ASSY, RH - BRAKE Not Available Price: |
| 18 |
711-3037 |
Pin, Clevis, 3/8 Dia x 1.56 LG Price: $4.04 |
| 19 |
719-3013 |
Clevis, Adjustment Price: $24.95 |
| 19 |
93-6828 |
HOSE ASM Price: $150.96 |
| 20 |
747-3022 |
BRAKE ROD Not Available Price: |
| 20 |
93-6829 |
HOSE ASM Price: $133.06 |
| 21 |
237-30 |
O-RING Price: $2.50 |
| 21 |
732-3026 |
EXTENSION SPRING Not Available Price: |
| 22 |
759-3423 |
BRAKE KIT, LH - CALIPER Not Available Price: |
| 23 |
703-1787 |
BRACKET-BRAKE MTG Not Available Price: |
| 503202987 |
503204587 |
SCREW This part replaces 503202987. Price: $5.99 |
| 503862702 |
544028302 |
MUFFLER This part replaces 503862702. Price: $76.99 |
| 503862802 |
544028302 |
MUFFLER This part replaces 503862802. Price: $76.99 |
| 503863601 |
536813201 |
SPARK ARRESTER 50CC This part replaces 503863601. Price: $1.99 |
| 503879601 |
544028302 |
MUFFLER This part replaces 503879601. Price: $76.99 |
