| Ref | Part Number | Description |
|---|
| 1 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 2 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7580. Price: $27.95 |
| 3 |
3218-5 |
NUT-JAM Price: $0.27 |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 5 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 6 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 7 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 10 |
82-8670 |
ROD-LATCH, BRAKE Price: $61.33 |
| 11 |
233-17 |
KNOB Price: $10.58 |
| 12 |
82-8930 |
DECAL-BRAKE, PARKING Price: $24.40 |
| 13 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 14 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 15 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 16 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 17 |
23-2240-03 |
PUMP CONTROL TUBE ASM This part replaces 23-2240. Price: $209.72 |
| 18 |
94-3304-01 |
SUPPORT-PEDAL This part replaces 94-3304. Price: $121.34 |
| 19 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 20 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 21 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 23 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 24 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 25 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 26 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 27 |
3220-3 |
NUT-HJ Price: $0.28 |
| 28 |
3217-7 |
NUT-HEX Price: $0.28 |
| 29 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 30 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 31 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 32 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 33 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 34 |
27-7590-01 |
BRAKE MT WA This part replaces 27-7590. Price: $239.14 |
| 35 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM This part replaces 27-9270. Price: $81.41 |
| 36 |
27-7640-01 |
SHAFT-BRAKE LATCH ASM This part replaces 27-7640. Price: $62.42 |
| 37 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 38 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7570. Price: $27.95 |
| 39 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 40 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 41 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 42 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 43 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 45 |
27-8550-01 |
PARKING BRAKE PEDAL ASM This part replaces 27-8550. Price: $324.09 |
| 46 |
3220-5 |
NUT-JAM Price: $0.65 |
| 47 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 48 |
88-1680-01 |
BRACKET-FOOTREST This part replaces 88-1680. Price: $17.86 |
| 49 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 50 |
88-1710-01 |
FOOTREST ASM This part replaces 88-1710. Price: $62.29 |
| 51 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 52 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 53 |
32128-25 |
NUT-HF Price: $3.19 |
| 54 |
325-14 |
SCREW-HH This part replaces 323-42. Price: $2.64 |
| 55 |
32128-43 |
NUT-FLANGE Price: $0.94 |

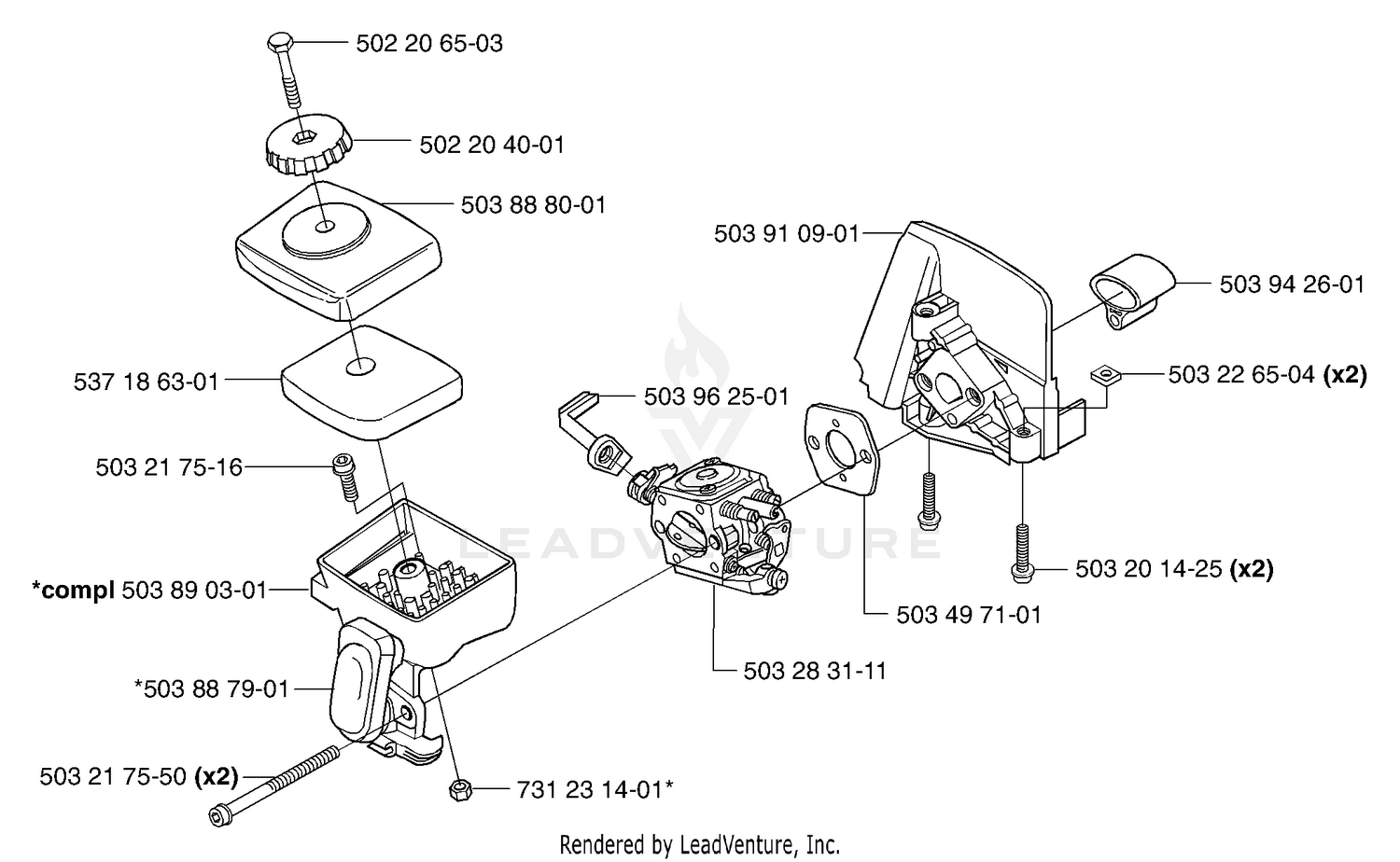

| 502204001 |
502204001 |
KNOB Price: $4.99 |
| 502206503 |
502206503 |
SCREW Price: $2.99 |
| 503201425 |
503200325 |
SCREW This part replaces 503201425. Price: $3.99 |
| 503217516 |
503217516 |
SCREW Price: $2.99 |
| 503217550 |
503217550 |
SCREW Price: $3.99 |
| 503226504 |
503226504 |
NUT Price: $4.99 |
| 503283111 |
588171156 |
KIT CARB This part replaces 503283111. Price: $39.99 |
| 503497101 |
503497101 |
GASKET Price: $4.99 |
| 503887901 |
503887901 |
CAP FILTER HOLDER Price: $4.99 |
| 503888001 |
503888001 |
AIR FILTER COVER Price: $7.99 |
| 503910901 |
503910901 |
PARTITION Price: $12.99 |
| 503942601 |
503942601 |
PIPE Price: $8.99 |
| 503962501 |
503962501 |
CHOKE CONTROL Price: $6.99 |
| 537186301 |
537186301 |
AIR FILTER (READY-OILED) Price: $5.99 |
