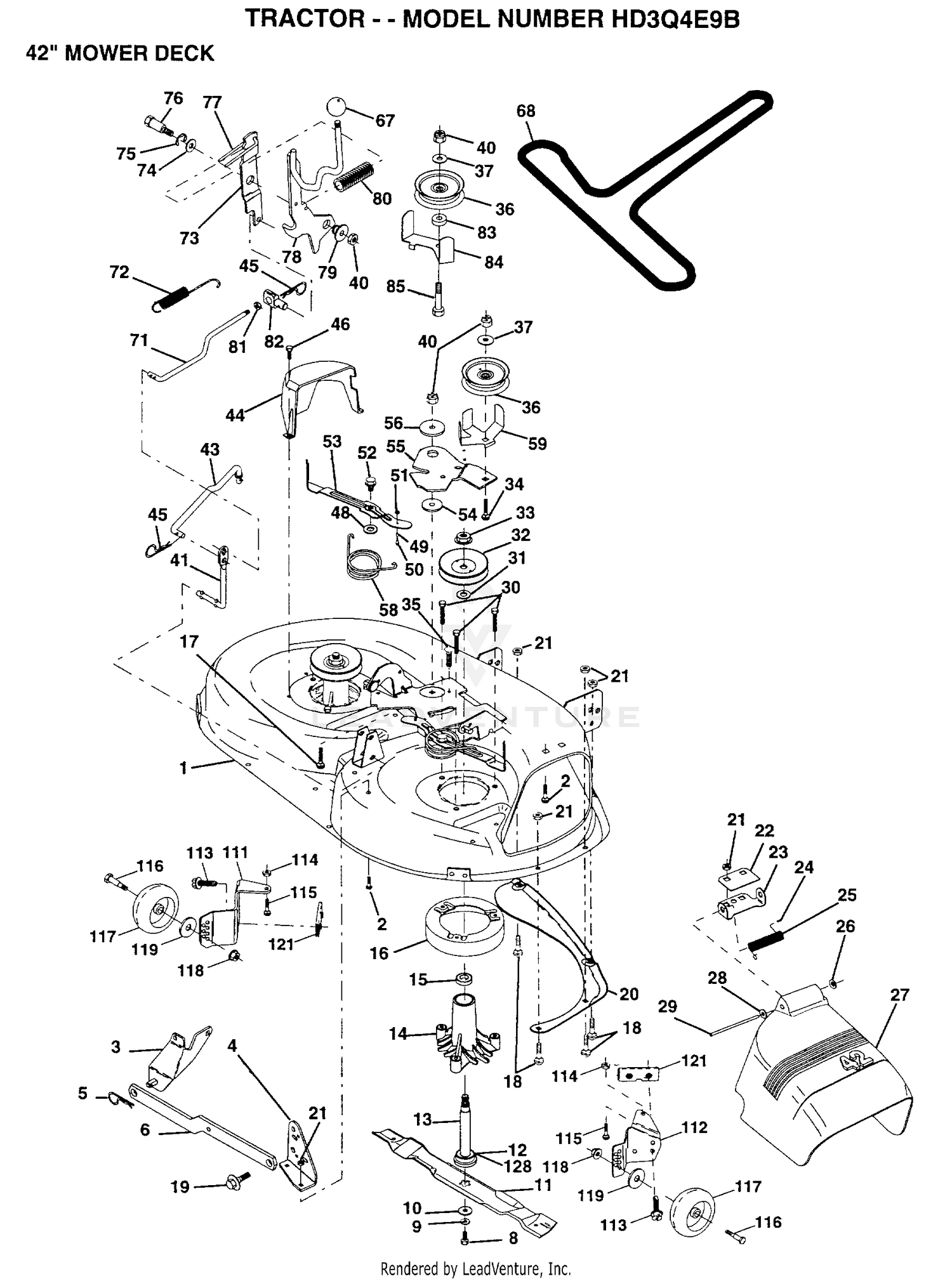

| Ref | Part Number | Description |
|---|
| 1 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 1 |
144393 |
DECK.WELD.42. Price: Call Us |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
322-1 |
SCREW-HH Price: $0.22 |
| 8 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 11 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
105-3822 |
HYD CYLINDER ASM Price: $533.45 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
5-1226 |
WASHER Price: $3.90 |
| 16 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 17 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
136-8483 |
FRAME-PULL, RH This part replaces 104-2055. Price: $382.66 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 20 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 21 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
92-9767 |
HOSE Price: $69.61 |
| 29 |
105-3828 |
SPACER Price: $5.10 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
140084 |
SUB= 151785 Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 67 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
140179 |
LEVER ASM CLT PRM Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 83 |
120958X |
WASHER Price: Call Us |
| 84 |
144394 |
SUB= 156084 Price: Call Us |
| 85 |
72140618 |
BOLT RDHD 3/8-16 Price: Call Us |
| 111 |
140353 |
SUB= 155197 Price: Call Us |
| 112 |
132262 |
SUB= 155198 Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 114 |
73510500 |
NUT Price: Call Us |
| 115 |
72110504 |
SUB= 872110504 Price: Call Us |
| 116 |
146851 |
BOLT.SHOULDER Price: Call Us |
| 117 |
146850 |
WHEEL.GUAGE.MED. Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 121 |
143723 |
BRACKET.EXTRD.GWL Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
