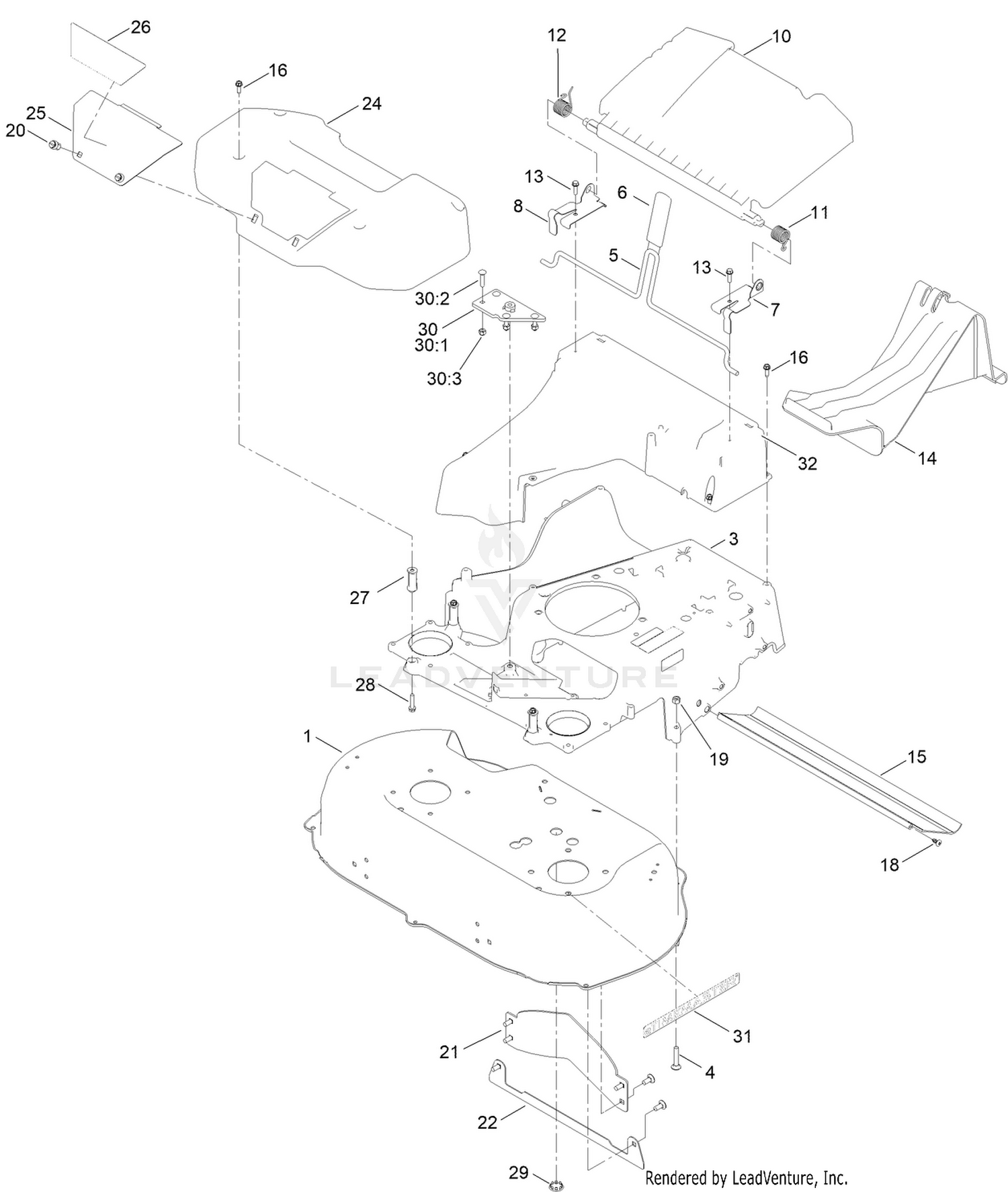

Housing Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 161-3116 | HOUSING ASM Price: $227.99 |
| 3 | 145-3985-01 | FRAME-30IN, 60V Price: $171.99 |
| 4 | 137-3063 | BOLT-CAR Price: $1.29 |
| 5 | 139-5415 | ROD-RELEASE, HANDLE Price: $14.99 |
| 6 | 120-7018 | GRIP-LEVER Price: $3.69 |
| 7 | 121-9114 | BRACKET-DOOR, LH Price: $17.99 |
| 8 | 121-9115 | BRACKET-DOOR, RH Price: $17.99 |
| 10 | 145-3997 | REAR DEFLECTOR ASM Price: $37.99 |
| 11 | 115-2859 | SPRING-TORSION Price: $4.89 |
| 12 | 114-7924 | SPRING-TORSION Price: $3.29 |
| 13 | 137-3099 | SCREW-PLASTITE, HWH Price: $0.79 |
| 14 | 120-5225 | PLUG-MULCH Price: $28.99 |
| 15 | 120-6241 | SHIELD-TRAILING Price: $14.99 |
| 16 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 18 | 139-1692 | SCREW-THD Price: $0.39 |
| 19 | 119-4038 | NUT-HEX Price: $0.31 |
| 20 | 121-5840 | FASTENER Price: $5.09 |
| 21 | 130-2352-01 | BAFFLE-CONTROL Price: $25.99 |
| 22 | 125-5081-01 | PLATE-DECK Price: $12.99 |
| 24 | 145-5898 | COVER-BELT Price: $34.99 |
| 25 | 145-5899-03 | PANEL-ACCESS Price: $20.99 |
| 26 | 145-3999 | DECAL-ACCESS PANEL Price: $17.99 |
| 27 | 140-3901 | SPACER-FRAME, 30 IN. Price: $5.09 |
| 28 | 108-4862 | SCREW-HWHTF Price: $3.19 |
| 29 | 147-0471 | PLUG-BUTTON Price: $2.39 |
| 30 | 161-3140 | FRAME-PLATE KIT Price: Call Us |
| 31 | 161-3153 | DECAL Price: $9.99 |
