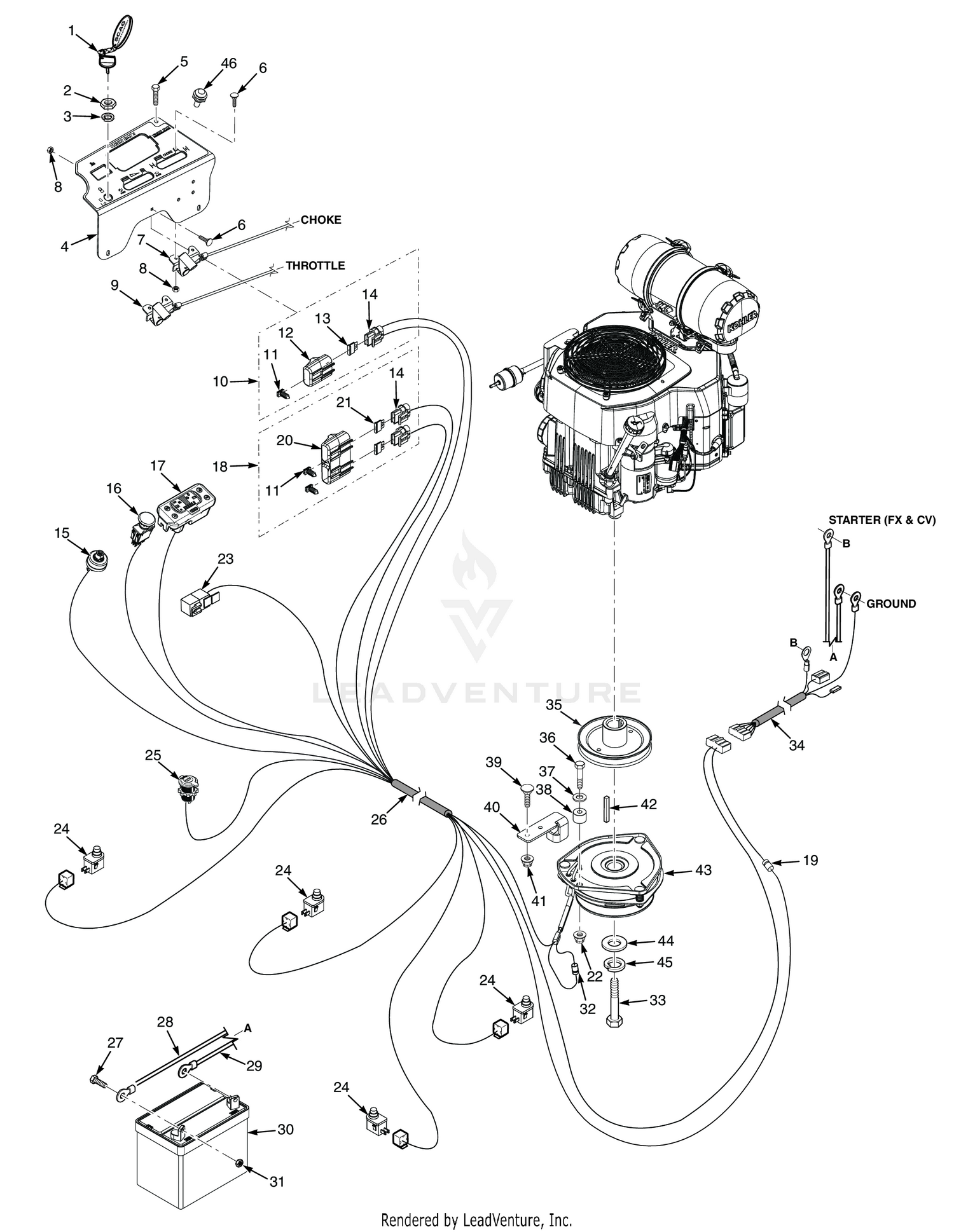

| Ref | Part Number | Description |
|---|
| 1 |
351-22 |
Seat Price: Call Us |
| 1 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 2 |
3233-23 |
Carriage Bolt Price: Call Us |
| 2 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 3 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 3 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 4 |
3217-11 |
NUT-HEX Price: $0.95 |
| 4 |
463386 |
Instrument Panel w/Decal Price: Call Us |
| 5 |
04017-04 |
CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 5 |
231-21 |
DISCONTINUED Price: Call Us |
| 6 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 6 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 7 |
3217-9 |
NUT-HH Price: $0.37 |
| 7 |
485628 |
Throttle Control Cable (Kawasaki FS / FX, Kohler CV) Price: Call Us |
| 8 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 8 |
3-6866 |
Frame Price: Call Us |
| 9 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 9 |
485628 |
Throttle Control Cable (Kawasaki FS / FX, Kohler CV) Price: Call Us |
| 10 |
242-36 |
DISCONTINUED Price: Call Us |
| 11 |
251-182 |
DISCONTINUED Price: Call Us |
| 11 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 12 |
3-6872 |
Spacer Price: Call Us |
| 12 |
483643 |
Cover, Sealed Single Price: Call Us |
| 13 |
232-3 |
TUBE-INNER Price: $30.40 |
| 13 |
485674 |
Fuse, 5 Amp Price: Call Us |
| 14 |
3-6873 |
Pivot Tube Price: Call Us |
| 14 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 15 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 15 |
48798 |
KEY SWITCH(INCLUDES MOUNTING HARDWARE) Price: Call Us |
| 16 |
3-6884 |
Pin Price: Call Us |
| 16 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 17 |
3-6874 |
Foot Rest Price: Call Us |
| 17 |
484721 |
Tiger Eye, Cluster Gauge Price: Call Us |
| 18 |
3-7308 |
Seat Spring Price: Call Us |
| 19 |
325-22 |
SCREW-HH This part replaces 325-21. Price: $4.26 |
| 19 |
482253 |
Decal, Forward Speed Selector Price: Call Us |
| 20 |
325-13 |
SCREW-HH Price: $3.57 |
| 20 |
483571 |
Cover, Sealed Double Price: Call Us |
| 21 |
3-5583 |
Decal Price: Call Us |
| 21 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 22 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 22 |
325-23 |
SCREW-HH Price: $18.83 |
| 23 |
483013 |
Relay, 12V 40 AMP Standard Price: Call Us |
| 24 |
481638 |
Switch, Interlock, Normally Open Price: Call Us |
| 25 |
485568 |
Power Plug, 12V Price: Call Us |
| 26 |
486013 |
Wire Harness - (Kawasaki FX & FT, Yamaha MX) Price: Call Us |
| 27 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 28 |
48029-28 |
Battery Cable, 25" Red Price: Call Us |
| 29 |
48029-11 |
Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton Price: Call Us |
| 31 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 32 |
483958 |
Diode, 600V 6 Amp Price: Call Us |
| 34 |
485678 |
Wire Harness Adapter, Kawasaki FX & FT Price: Call Us |
| 35 |
485589 |
Pulley, 5.75" Dia. - 1.125 Bore Price: Call Us |
| 36 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI) Price: Call Us |
| 37 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 38 |
431041 |
BUSHING, UHMW Price: Call Us |
| 39 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 40 |
427330 |
ANTI ROTATION Price: Call Us |
| 41 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 42 |
04063-28 |
Key, 1/4 x 1/4 x 3-1/2" Price: Call Us |
| 43 |
462339 |
Clutch w/Tag GT3.5--FE05 (61) Price: Call Us |
| 44 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 45 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 46 |
481182 |
Indicator Light, Glow Plugs (Includes Mounting Hardware) Price: Call Us |
| 485610 |
Choke |
Control Cable (Kohler CV) Price: Call Us 485610 |
| 485673 |
Wire |
Harness Adapter, Kohler - 23CV Price: Call Us 485673 |
