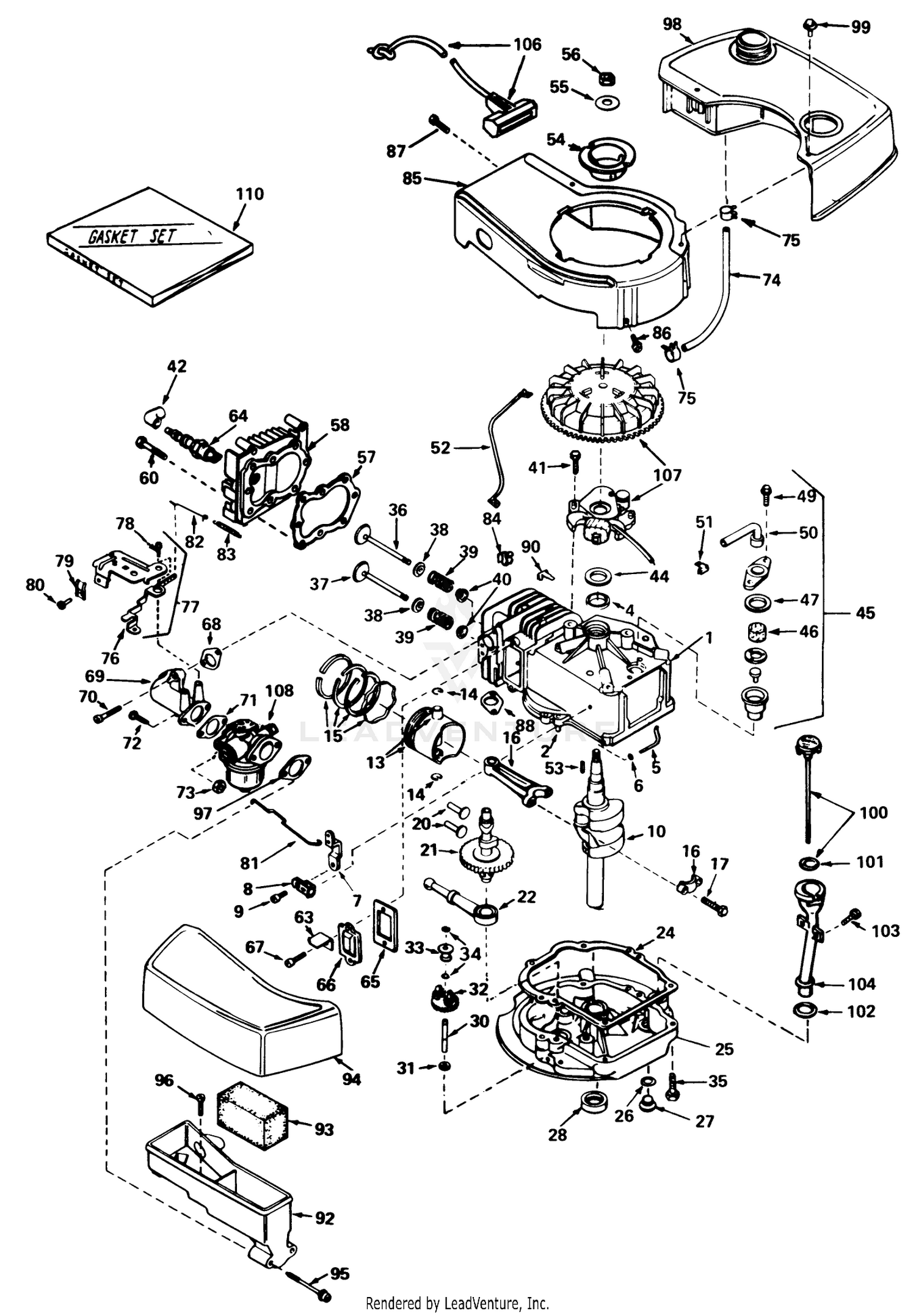

| Ref | Part Number | Description |
|---|
| 1 |
33883 |
Cylinder Assy. (Incl. Ref. #2, 4 105) Price: Call Us |
| 2 |
26727 |
Pin-Dowel Price: Call Us |
| 4 |
29183 |
OIL SEAL Price: Call Us |
| 5 |
30589 |
Rod, Governor (Incl. No. 6) Price: Call Us |
| 6 |
28277 |
Washer-Flat Price: Call Us |
| 7 |
32651 |
Governor Lever Price: Call Us |
| 8 |
31335 |
Clamp-Lever, Governor Price: Call Us |
| 9 |
650548 |
Screw Price: Call Us |
| 13 |
32603A |
Piston, Pin Ring Assy. (Incl. #14 15)(Std.) Price: Call Us |
| 13 |
32604A |
Piston, Pin Ring Assy . (Incl.Ref. #14 15)(.010 oversize) Price: Call Us |
| 13 |
32605A |
Piston, Pin Ring Assy. (Incl.Ref. #14 15) (.020 oversize) Price: Call Us |
| 14 |
20381 |
Ring-Retaining, Piston Pin Price: Call Us |
| 15 |
32606 |
Ring Set Piston (Std.) Price: Call Us |
| 15 |
32607 |
Ring Set Piston (.010 Oversize) Price: Call Us |
| 15 |
32608 |
Ring Set Piston (.020 Oversize) Price: Call Us |
| 16 |
30963B |
Rod Assy., Connecting (Incl. Nos.18, 19 20) Price: Call Us |
| 17 |
32610A |
Bolt-Rod, Connecting Price: Call Us |
| 20 |
27241 |
Lifter-Valve Price: Call Us |
| 21 |
33553 |
Camshaft(Mech.Comp. Release) Price: Call Us |
| 22 |
29914 |
Oil Pump ASM Price: Call Us |
| 25 |
30594B |
Flange Assembly, Mounting (Incl. Ref. #26 thru 30) Price: Call Us |
| 27 |
27244 |
Plug Oil Drain Price: Call Us |
| 28 |
26208 |
Seal Oil Price: Call Us |
| 30 |
30574 |
Shaft-Governor Price: Call Us |
| 31 |
30590A |
Washer-Flat Price: Call Us |
| 32 |
30591 |
Gear Assy., Governor (Incl. No.132) Price: Call Us |
| 33 |
30588A |
Spool-Governor Price: Call Us |
| 34 |
29193 |
Ring-Retaining Price: Call Us |
| 35 |
650488 |
Screw (1/4-20 x 1-1/4) Price: Call Us |
| 36 |
29314A |
Valve, Intake (Std.) (Incl. Ref. #7, 8 9) Price: Call Us |
| 36 |
29315B |
Valve, Intake (1/32"oversize) (Incl. Ref. #7, 8 9) Price: Call Us |
| 37 |
29313B |
Valve, Exhaust (Std.) (Incl. Ref. #7, 8 9) Price: Call Us |
| 37 |
29315B |
Valve, Intake (1/32"oversize) (Incl. Ref. #7, 8 9) Price: Call Us |
| 38 |
31671 |
Cap-Upper Valve Spring Price: Call Us |
| 39 |
31672 |
Spring-Valve Price: Call Us |
| 40 |
31673 |
Cap-Valve, Spring Price: Call Us |
| 41 |
650489 |
Screw Price: Call Us |
| 42 |
610118 |
Cover-Spark Plug Price: Call Us |
| 44 |
33876 |
Gasket Stator Price: Call Us |
| 45 |
34214 |
Breather Assy. (Incl. Ref. #46, 47, 49, 50 51 ) Price: Call Us |
| 46 |
33734 |
Element-Breather Price: Call Us |
| 49 |
650768 |
Screw, Hex Hd. w/Conical Price: Call Us |
| 50 |
33886 |
Tube, Breaker Price: Call Us |
| 51 |
33887 |
Clip, Breather Price: Call Us |
| 52 |
33888 |
Wire, Ground Price: Call Us |
| 53 |
610961 |
Key-Flywheel Price: Call Us |
| 54 |
32723 |
Pulley Starter Price: Call Us |
| 55 |
650763 |
Washer-Spring Price: Call Us |
| 56 |
650607 |
Hex Nut Price: Call Us |
| 58 |
34342 |
Head-Cylinder Price: Call Us |
| 60 |
6021A |
Screw (5/16-18x1-1/2) Price: Call Us |
| 63 |
30593 |
Retainer Clip Price: Call Us |
| 64 |
33636 |
Plug, Spark (J17LM or equiv.) Price: Call Us |
| 64 |
34251 |
Plug, Spark (Champion RCJ-8) Price: Call Us |
| 66 |
32755 |
Cover-Valve Price: Call Us |
| 67 |
650128 |
Screw Price: Call Us |
| 69 |
33004 |
Pipe, Intake Price: Call Us |
| 70 |
650451 |
Screw (1/4-20 x 1) Price: Call Us |
| 72 |
111-1250 |
WHEEL 180X45 RIBBED This part replaces 6201. Price: $27.74 |
| 73 |
29752 |
Nut and Lock Washer (1/4-28) Price: Call Us |
| 74 |
30705 |
Line-Fuel Price: Call Us |
| 75 |
26460 |
Clamp-Line, Fuel Price: Call Us |
| 76 |
34310 |
Lever Control Price: Call Us |
| 77 |
33889A |
Control Assy., Speed (Incl. Nos, 76, 78 89) Price: Call Us |
| 78 |
650804 |
Screw, Hex Washer Hd Shoulder Self-Tap Price: Call Us |
| 79 |
27793 |
Conduit Price: Call Us |
| 80 |
28942 |
Screw (10-32 x 3/8) Price: Call Us |
| 81 |
34336 |
Link-Throttle Price: Call Us |
| 82 |
33151 |
Link Governor Spring Price: Call Us |
| 83 |
33890 |
Spring Governor Price: Call Us |
| 85 |
33907A |
Housing Blower Price: Call Us |
| 86 |
650497 |
Screw Price: Call Us |
| 87 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 90 |
29443 |
Clip-Wire Price: Call Us |
| 92 |
33895 |
Body Air Cleaner Price: Call Us |
| 93 |
33896 |
Filer, Air Price: Call Us |
| 94 |
33897 |
Cove, Air Cleaner Price: Call Us |
| 95 |
650762 |
Screw Fil Hd. Price: Call Us |
| 96 |
650784 |
Screw, Hex Hd. Price: Call Us |
| 98 |
33904A |
Tank, Fuel Price: Call Us |
| 99 |
28763 |
Screw (10-32 x 35/64) Price: Call Us |
| 100 |
33894A |
Dipstick, Oil (Incl. Ref. #101)(Twist Lock) Price: Call Us |
| 101 |
33590 |
O-Ring Price: Call Us |
| 102 |
34265 |
Gasket Price: Call Us |
| 103 |
650562 |
Screw (10-32 x 1/2) Price: Call Us |
| 104 |
34380 |
Tube-Oil Fill Price: Call Us |
| 106 |
590343 |
Rope Assy., Starter Price: Call Us |
| 107 |
610772A |
Magneto Price: Call Us |
| 108 |
632050 |
Carburetor (Incl. No. 71) Price: Call Us |
