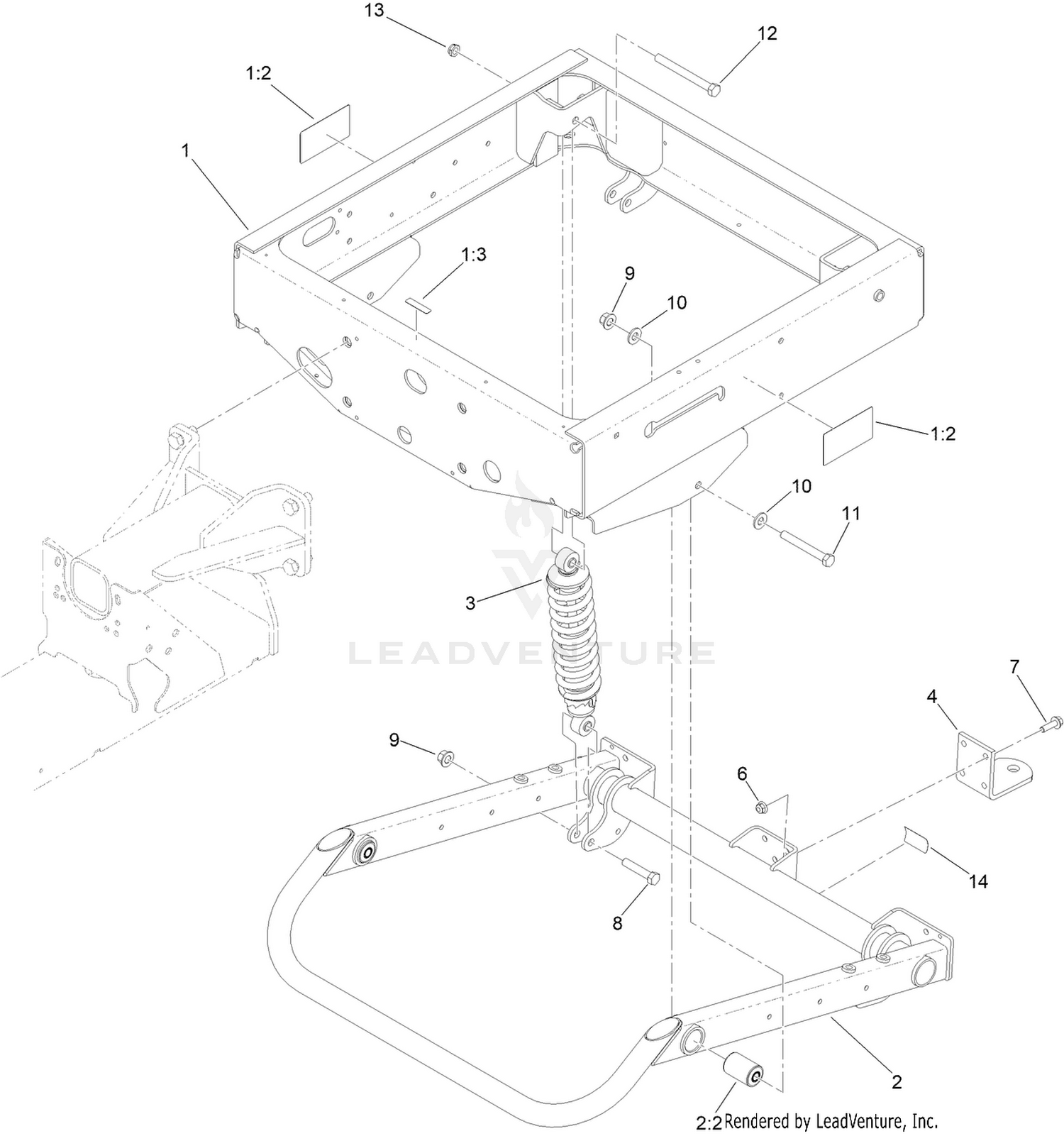

Rear Frame and Suspension Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 147-3869 | REAR FRAME ASM Price: Call Us |
| 2 | 147-3866 | SWING ARM ASM Price: Call Us |
| 3 | 133-0553 | SHOCK AND SPRING ASM Price: $129.15 |
| 4 | 99-7654-03 | HITCH-DUTY, LIGHT Price: $37.35 |
| 6 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 3234-24 | SCREW-HHF Price: $3.19 |
| 8 | 325-10 | SCREW-HH Price: $1.82 |
| 9 | 99-5107 | NUT-LOCK Price: $1.77 |
| 10 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 11 | 325-17 | SCREW-HH Price: $2.90 |
| 12 | 325-19 | SCREW-HH Price: $2.57 |
| 13 | 3296-45 | NUT-HEX Price: $3.79 |
