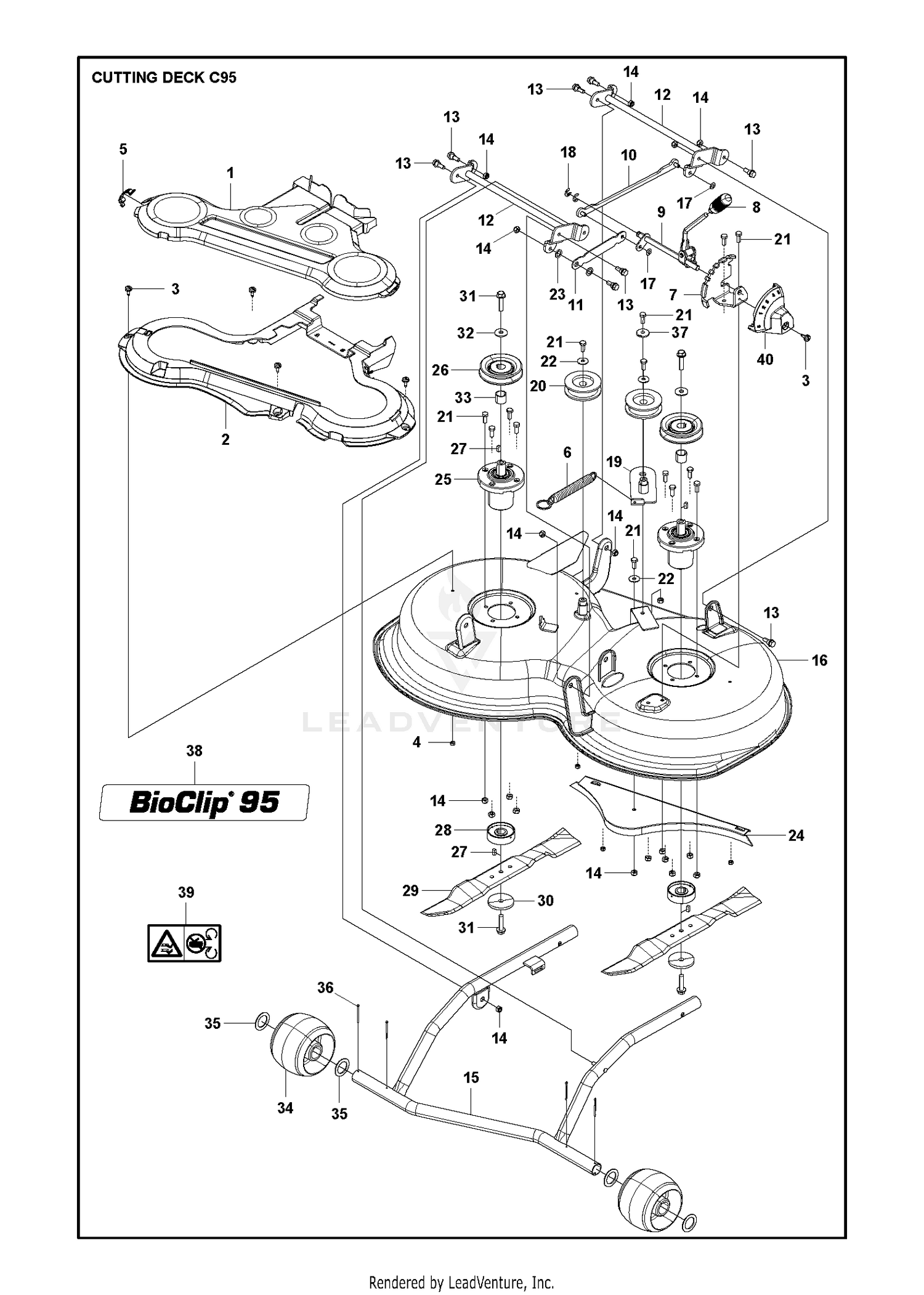

95CM CUTTING DECK
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-4752 | CASE-GEAR, BEVEL Price: $237.26 |
| 1 | 580526501 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 110-4754 | SEAL-OIL Price: $10.36 |
| 2 | 580526401 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 104-2378 | BUSHING Price: $40.73 |
| 3 | 544400501 | SCREW Price: $3.99 |
| 4 | 106-1069 | O-RING Price: $5.20 |
| 5 | 104-2373 | KNUCKLE Price: $58.69 |
| 6 | 104-2374 | BOLT Price: $6.33 |
| 6 | 584298801 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 100-3768 | LH STEERING ARM ASM Price: $207.28 |
| 7 | 522523201 | BRACKET Price: $22.99 |
| 8 | 100-3766 | RH STEERING ARM ASM Price: $207.28 |
| 10 | 586499001 | NEEDS DESCRIPTION Price: Call Us |
| 10 | 95-7547 | SHIM 0.1 Price: $2.53 |
| 10 | 95-7548 | SHIM 0.2 Price: $3.52 |
| 10 | 95-7549 | SHIM 0.3 Price: $3.82 |
| 11 | 581052601 | NEEDS DESCRIPTION Price: Call Us |
| 11 | 99-7597 | PIN-DOWEL Price: $3.74 |
| 12 | 104-2375 | BOLT Price: $18.54 |
| 12 | 522450901 | CROSS BAR Price: $24.99 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 13 | 99-7599 | BOLT Price: $3.17 |
| 14 | 99-7525 | STUD Price: $7.03 |
| 15 | 580396401 | NEEDS DESCRIPTION Price: Call Us |
| 15 | 99-7526 | NUT Price: $1.29 |
| 16 | 580390101 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 99-7527 | WASHER-SPRING Price: $1.02 |
| 17 | 735585201 | Price: $1.09 |
| 18 | 106-1141 | STEERING TIE ROD ASM Price: $642.02 |
| 18 | 735311520 | RETAINING RING Price: $2.99 |
| 19 | 580396901 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 586104302 | BELT TENSIONER WHEEL Price: $22.99 |
| 22 | 734116441 | SPACER Price: $3.99 |
| 23 | 734117771 | BUSHING Price: $3.99 |
| 24 | 580397101 | NEEDS DESCRIPTION Price: Call Us |
| 25 | 573968602 | NEEDS DESCRIPTION Price: Call Us |
| 26 | 506922101 | PULLEY Price: $29.99 |
| 27 | 506533501 | KEY Price: $3.99 |
| 28 | 573966101 | NEEDS DESCRIPTION Price: Call Us |
| 30 | 506792303 | NEEDS DESCRIPTION Price: Call Us |
| 31 | 506675402 | BOLT Price: $5.99 |
| 32 | 734117441 | WASHER Price: $3.99 |
| 33 | 580397501 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 522735901 | WHEEL Price: $27.99 |
| 35 | 574264501 | WASHER Price: $4.99 |
| 36 | 721618701 | COTTER PIN Price: $3.99 |
| 37 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 38 | 574849702 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 574510001 | DECAL Price: $2.99 |
| 40 | 573971801 | COVER Price: $9.99 |
