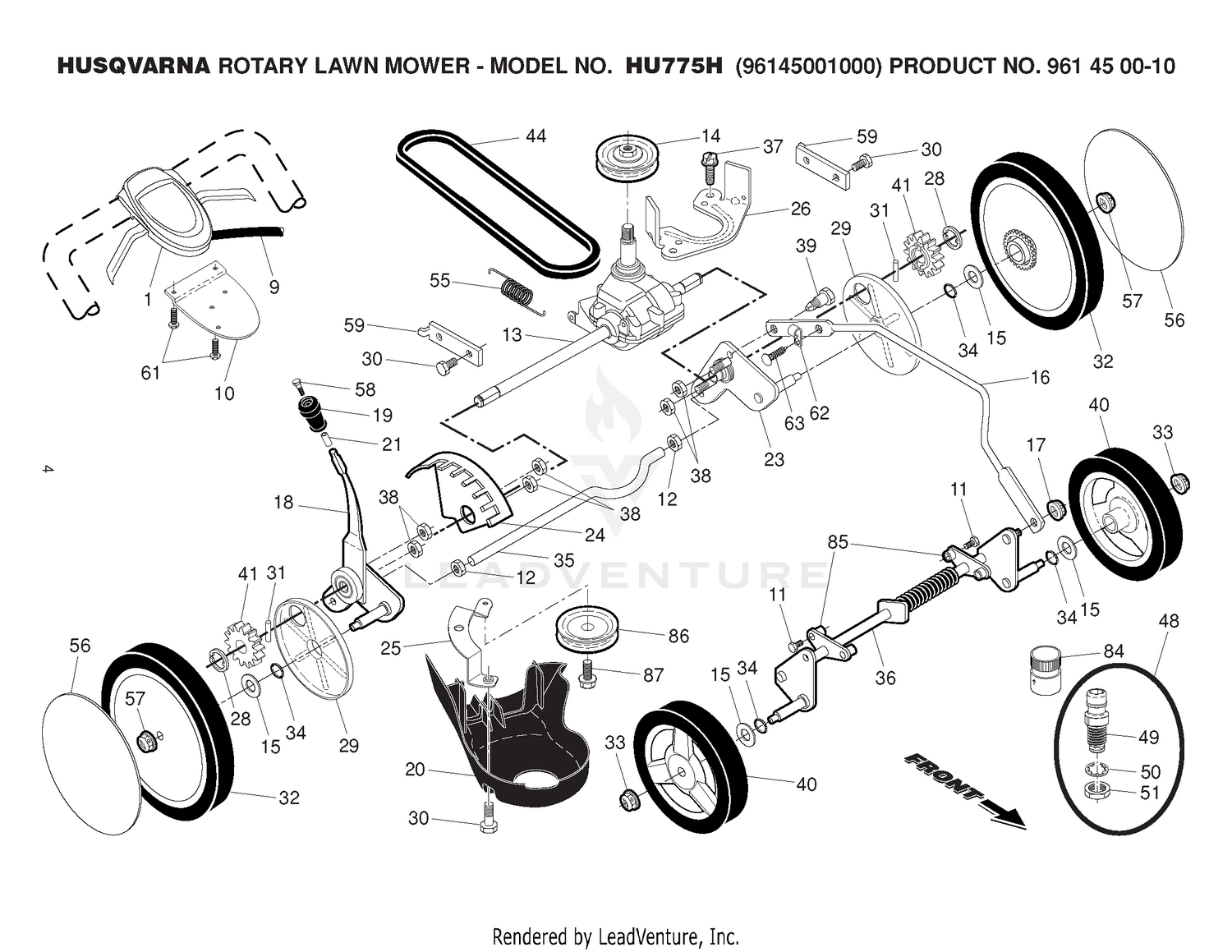

| Ref | Part Number | Description |
|---|
| 1 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 2 |
74-3190 |
LEVER-LIFT Price: $102.52 |
| 5 |
60-5690 |
CLIP Price: $3.58 |
| 6 |
58-1520 |
PIN Price: $12.55 |
| 7 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 9 |
532431650 |
CABLE.CONTROL.22RGD.GEN2 Price: $37.99 |
| 9 |
63-4800 |
MOTOR-SPOOL, VALVE Price: $2,291.65 |
| 10 |
340-88 |
FITTING-STRAIGHT Price: $11.24 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 12 |
58-7190 |
SPRING Price: $19.74 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
581680801 |
TRANSMISSION.22+AWD.WALK.MOWER Price: $129.99 |
| 14 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 15 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 16 |
532430030 |
ROD.CONNECTING.RGD.22+.HW.BLAC Price: $17.99 |
| 16 |
58-3830 |
PIN-CLEVIS Price: $1.84 |
| 17 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 17 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 18 |
58-4450 |
LEVER Price: $81.85 |
| 18 |
581901701 |
KIT.SEL.ASM.22+.HI-WHEEL.BLKNB Price: $19.99 |
| 19 |
233-10 |
KNOB-LEVER Price: $47.39 |
| 20 |
58-4460 |
CLEVIS Price: $112.62 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 Price: $19.99 |
| 21 |
532435242 |
SCREW.PLASTIC.ANCHOR.5/16 Price: $4.99 |
| 21 |
58-1570 |
LINK Price: $15.74 |
| 22 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 23 |
583449401 |
ADJUSTER.ARM.ASM.AX.LHS.SP.HW Price: $19.99 |
| 23 |
60-0550 |
BUSHING Price: $16.69 |
| 24 |
3217-6 |
NUT-HEX Price: $1.19 |
| 24 |
532433511 |
BRACKET.WHL.ADJ.9.POS.W/PAD Price: $9.99 |
| 25 |
581313802 |
BRACKET.DRIVE.COVER.RGD. Price: $9.99 |
| 26 |
32121-118 |
PIN-ROLL Price: $0.36 |
| 26 |
589318302 |
BRACKET.TRANS.BELTKEEP.21 RWD This part replaces 532426066. Price: $2.99 |
| 27 |
237-78 |
O-RING Price: $3.85 |
| 28 |
58-5520 |
VALVE-RELIEF, ADJUSTABLE Price: $410.76 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
322-9 |
SCREW-HH Price: $3.09 |
| 29 |
532428781 |
COVER.DUST.WHEEL.RGD.HW Price: $5.99 |
| 30 |
237-22 |
O-RING Price: $2.43 |
| 30 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 31 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
237-42 |
O-RING Price: $2.78 |
| 32 |
581336701 |
WHEEL.11X2.DRIVE.RAD2.BB.GREY Price: $49.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 33 |
59-7130 |
KNOB-CONTROL, SPEED Price: $25.40 |
| 34 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 34 |
58-1510 |
SHAFT Price: $74.91 |
| 35 |
532430598 |
AXLE.REAR.RGD Price: $39.99 |
| 35 |
59-7910 |
GROMMET Price: $2.07 |
| 36 |
583762601 |
AXLE.ASM.FRT.RGD.BLACK.ZINC This part replaces 532447189. Price: $44.99 |
| 36 |
60-2110 |
PIN Price: $1.42 |
| 37 |
340-64 |
O-RING Price: $4.22 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 38 |
340-80 |
FITTING-STR Price: $47.82 |
| 38 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 39 |
237-101 |
O-RING This part replaces 237-123. Price: $2.80 |
| 39 |
532407059 |
SHOULDER BOLT SEMI GIMLET PT. Price: $3.99 |
| 40 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 This part replaces 532410831. Price: $29.99 |
| 40 |
58-2150 |
BLOCK-MANIFOLD Price: $325.81 |
| 41 |
532428783 |
PINION.12.TEETH.RGD.22+HW Price: $6.99 |
| 41 |
66-5410 |
ORIFICE (.109) Price: $24.26 |
| 43 |
237-80 |
O-RING Price: $6.10 |
| 44 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 44 |
580364611 |
BELT V3L 35.42, CLUTCHING COVE This part replaces 532406557. Price: $8.99 |
| 45 |
237-65 |
O-RING Price: $2.50 |
| 46 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 47 |
33113-016 |
SCREW-HH Price: $0.34 |
| 48 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 48 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 49 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 49 |
58-3810 |
PIN-CLEVIS Price: $6.22 |
| 50 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 50 |
58-1560 |
LINK Price: $7.20 |
| 51 |
48-7890 |
NUT-HEX Price: $0.25 |
| 51 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 52 |
340-86 |
FITTING-TEE Price: $35.23 |
| 53 |
93-7768 |
COUPLING Price: $123.16 |
| 54 |
52-6430 |
WASHER Price: $0.25 |
| 55 |
581351301 |
SPRING.RETURN.AUTO. Price: $4.99 |
| 55 |
66-5860 |
FITTING-ELBOW, 45 DEG Price: $92.86 |
| 56 |
532441333 |
HUBCAP.H.3SPK.GREY Price: $9.99 |
| 56 |
58-5490 |
VALVE-CONTROL, FLOW Price: $1,092.55 |
| 57 |
340-3 |
FITTING-STRAIGHT Price: $10.42 |
| 57 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 58 |
237-79 |
O-RING Price: $5.46 |
| 58 |
532435241 |
SCREW.12-14X1.500 Price: $3.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 59 |
58-1540 |
SPACER-NYLON Price: $11.85 |
| 60 |
33113-050 |
SCREW-HH Price: $0.62 |
| 61 |
237-42 |
O-RING Price: $2.78 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 62 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 62 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 63 |
353-947 |
CAP-DUST, RUBBER Price: $7.73 |
| 63 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 68 |
3296-8 |
NUT-HEX Price: $1.29 |
| 69 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 70 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 71 |
321-11 |
SCREW-HH Price: $0.36 |
| 72 |
63-4700 |
VALVE-FLOW, REGULATOR Price: $295.76 |
| 73 |
321-3 |
SCREW-HH Price: $0.28 |
| 74 |
63-4690-01 |
Bracket-Valve Price: Call Us |
| 75 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 76 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 77 |
92-9258 |
ADAPTER-CHECK Price: $125.92 |
| 78 |
3217-5 |
NUT-HEX Price: $0.25 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 85 |
532439077 |
BRACKET.FRT.AXLE.SUPPORT Price: $19.99 |
| 86 |
587969201 |
PULLEY.RWD.IDLER.DBL SEAL This part replaces 580364301. Price: $12.99 |
| 87 |
581127601 |
SCREW Price: $6.99 |
