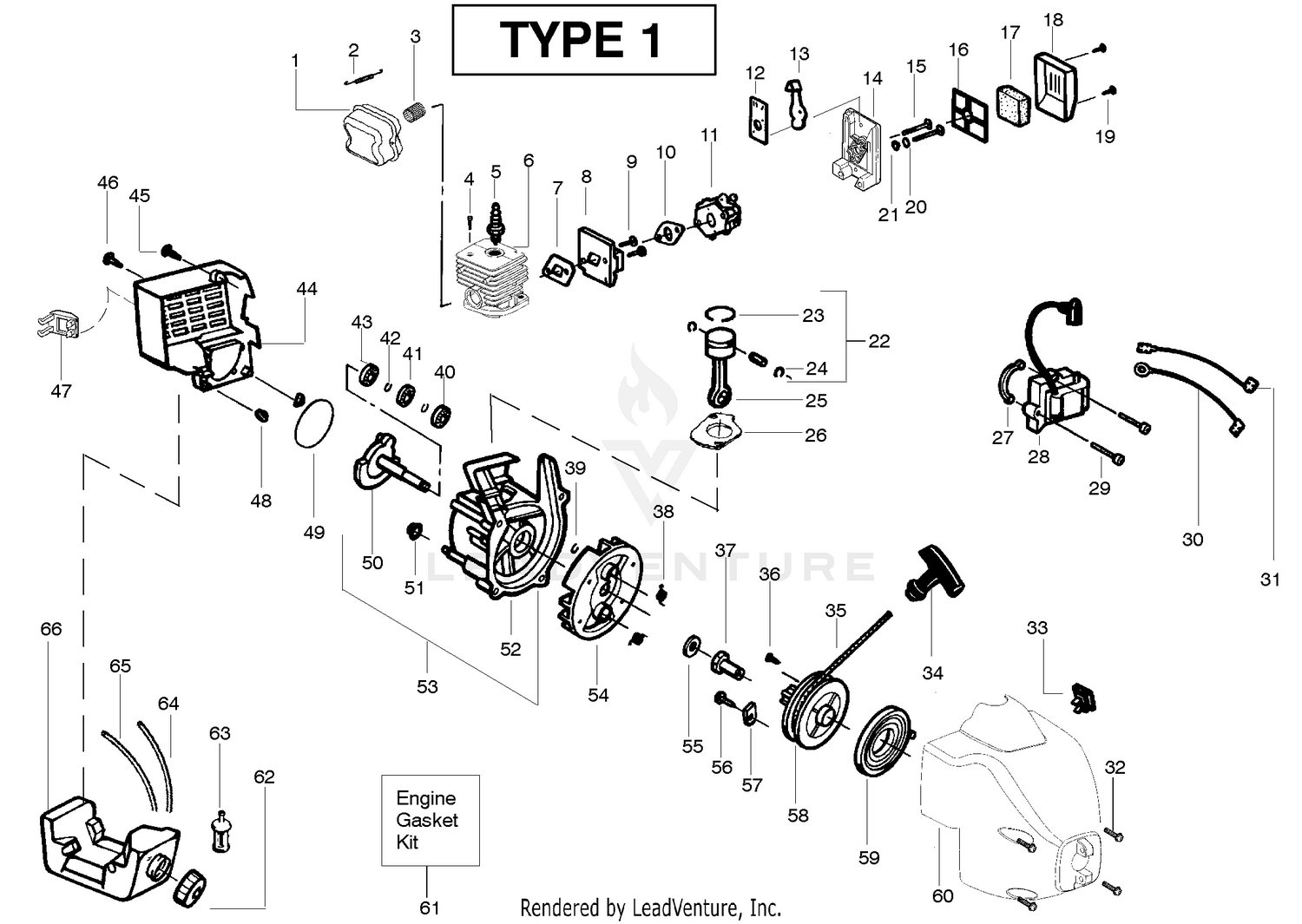

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 2 |
530042088 |
Muffler Spring Price: $1.99 |
| 2 |
94-2703 |
PLUG Price: $1.86 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 3 |
530071391 |
Screen-Spark Arrestor Price: $7.99 |
| 4 |
106-5363 |
SHAFT-ADJUSTER Price: $41.05 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
503235112 |
Spark Plug This part replaces 952030201. Price: $5.99 |
| 6 |
114-9396 |
CAPSCREW-HH Price: $2.22 |
| 6 |
530012416 |
Cylinder This part replaces 530069757. Price: $17.99 |
| 7 |
530071329 |
Gasket-Cylind./Carb. Price: $4.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
119-4164 |
WASHER-WAVE This part replaces 106-5335. Price: $2.73 |
| 8 |
530069758 |
Kit - Carb. Adaptor Price: $8.99 |
| 9 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 9 |
530015849 |
Screw Price: $1.99 |
| 10 |
137-6132 |
SCREW-ADJUSTER, BEDBAR This part replaces 99-2096. Price: $32.54 |
| 10 |
530071329 |
Gasket-Carb. Price: $4.99 |
| 11 |
99-2098 |
WASHER Price: $7.01 |
| 12 |
119-4156 |
SPRING-COMPRESSION This part replaces 99-3755. Price: $0.91 |
| 12 |
530038747 |
Choke Plate Mounting Price: $1.99 |
| 13 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 13 |
530035499 |
Choke Shutter Price: $1.99 |
| 14 |
530052431 |
Air Box Price: $1.99 |
| 15 |
107-3273-01 |
BEDBAR Price: $303.02 |
| 15 |
530015887 |
Screw Price: $1.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 16 |
530036569 |
Plate - Filter Support Price: $1.99 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 |
530036575 |
Air Filter Foam Price: $1.99 |
| 18 |
530036568 |
Air Filter Cover Price: $1.99 |
| 19 |
530015957 |
Screw Price: $1.99 |
| 20 |
530015852 |
Spacer-Choke Price: $1.99 |
| 21 |
530015254 |
Washer Price: $1.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
545154009 |
PISTON RING This part replaces 530012472. Price: $1.99 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 24 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 25 |
530069615 |
Connecting Rod Ass'y. Price: $14.99 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 26 |
530071329 |
Gasket-Cylinder Price: $4.99 |
| 27 |
108-4269-01 |
WEIGHT Price: $146.07 |
| 27 |
530036145 |
Spacer-Module Price: $1.99 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 28 |
545081826 |
Kit - Ignition Module This part replaces 530039211. Price: $32.99 |
| 29 |
530015954 |
Screw Price: $1.99 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 30 |
530054448 |
Ground Wire Ass'y. Price: $1.99 |
| 31 |
530054449 |
Lead Wire Ass'y. Price: $1.99 |
| 32 |
137-8433 |
REEL+,7IN FWY(22)11 BLD This part replaces 108-9074. Price: $671.21 |
| 32 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 33 |
530069572 |
Kit - Switch Price: $4.99 |
| 34 |
530027569 |
Starter Handle Price: $1.99 |
| 35 |
530071325 |
Kit - Rope Price: $3.99 |
| 36 |
530016326 |
Screw Price: $1.99 |
| 37 |
530027953 |
Drive Coupling Price: $1.99 |
| 38 |
530023817 |
Starter Dog Spring Price: $1.99 |
| 39 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 40 |
530032124 |
Outer Bearing Price: $4.99 |
| 41 |
530019179 |
C'case Seal Price: $2.99 |
| 42 |
530015945 |
Retainer Ring-C'case Price: $1.99 |
| 43 |
530032125 |
Inner Bearing Price: $11.99 |
| 44 |
530049233 |
Rear Shroud Price: $3.33 |
| 45 |
530015934 |
Screw Price: $1.99 |
| 46 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 47 |
530054536 |
Guard-Muffler Price: $1.99 |
| 48 |
530036793 |
Isolator-Shroud Price: $5.99 |
| 49 |
530071329 |
O-Ring-C'case/Shrd Price: $4.99 |
| 50 |
530012413 |
Crankshaft Ass'y. Price: $14.99 |
| 51 |
530036792 |
Isolator-Crankcase Price: $4.99 |
| 54 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 55 |
530015828 |
Washer-Flat Price: $1.99 |
| 56 |
530016224 |
Screw Price: $1.99 |
| 57 |
530053985 |
Retainer-Can Price: $0.99 |
| 59 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 60 |
530071415 |
Assy. - Fan Housing Price: $14.99 |
| 62 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 63 |
530095646 |
Fuel Pickup Ass'y. Price: $2.99 |
| 64 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 65 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
