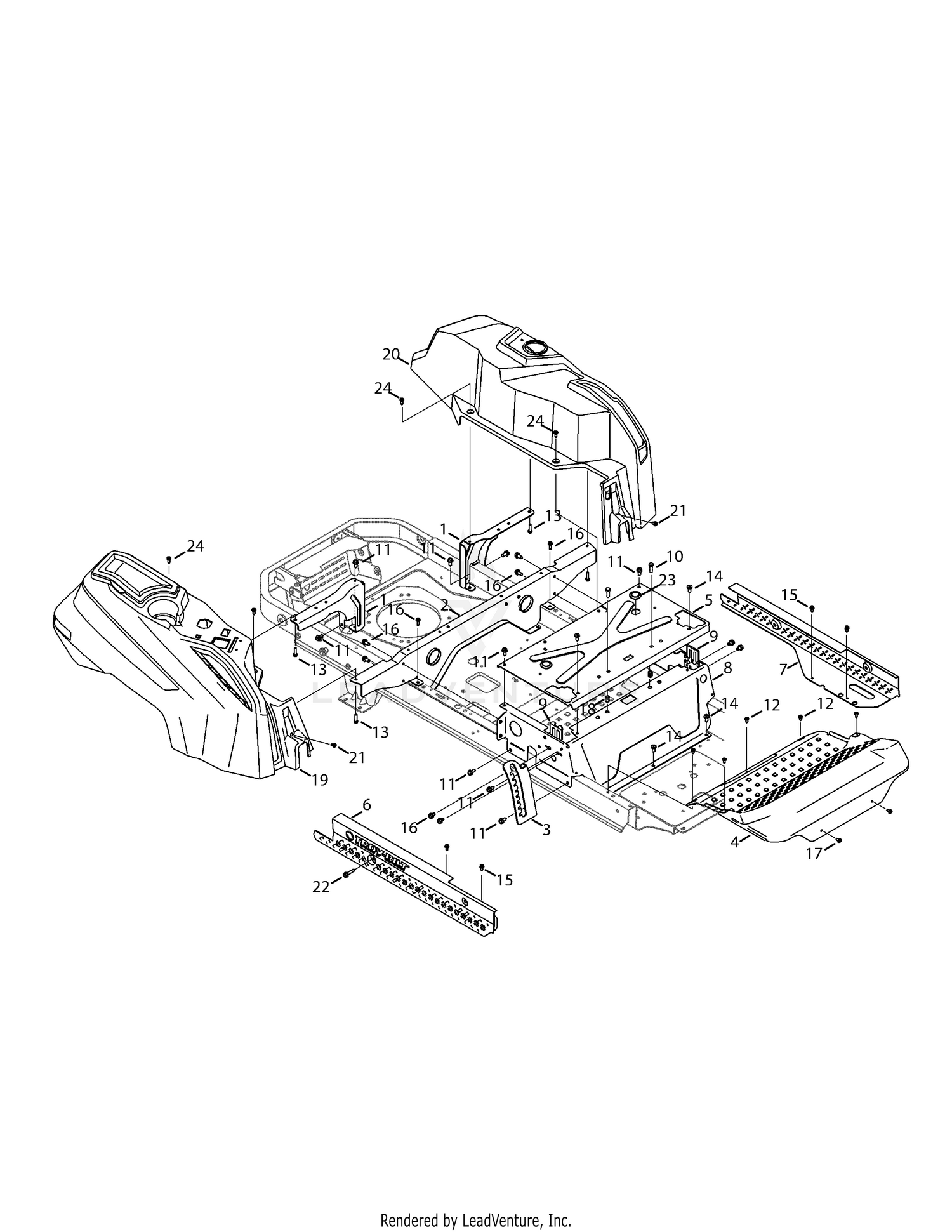

| Ref | Part Number | Description |
|---|
| 1 |
703-08720C-0638 |
REAR TANK BRACKET (MTD RED) This part replaces 703-08720A-0638. Price: $23.37 |
| 2 |
703-11179-0638 |
REAR SEATBOX BRACKET (MTD RED) This part replaces 703-09332A-0638. Price: $41.32 |
| 3 |
703-08762C |
Height Index Bracket Price: $14.87 |
| 4 |
703-08902A-0637 |
Floor Board Price: $147.33 |
| 5 |
703-09045J-0637 |
SEATBOX TOP PLATE (POWDER BLACK) This part replaces 703-09045D-0638. Price: $39.76 |
| 6 |
703-09119B-0638 |
FRAME SUPPORT (RH) This part replaces 703-09119-0638. Price: $43.30 |
| 7 |
703-09139C-0638 |
FRAME SUPPORT (LH) (MTD RED) This part replaces 703-09139-0638. Price: $37.66 |
| 8 |
703-09320 |
Seat Frame Price: $67.85 |
| 9 |
703-09211A-0637 |
Lapbar Brace Bracket Price: $6.97 |
| 10 |
710-0643 |
Hex Cap Screw, 5/16-18 x 1.00 Price: $5.99 |
| 11 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 12 |
710-05070A |
Self Tapping Screw, 1/4-20 x .50 Price: $6.01 |
| 13 |
710-05109 |
Hex Washer Screw, 5/16-14 x 1.00 Price: $3.17 |
| 14 |
710-05424 |
Self Tapping Screw, 5/16-18 x .750 Price: $2.94 |
| 15 |
710-0599 |
Hex Washer Screw, 1/4-20 x .500 Price: $3.86 |
| 16 |
710-0607 |
Hex Washer Screw, 5/16-18 x .50 Price: $6.06 |
| 17 |
710-06096 |
Screw, Self-Tapping, 5/16-18, 0.750 Price: $5.94 |
| 18 |
728-04068 |
Nut, 5/16-18 Price: $3.86 |
| 19 |
931-09040 |
RH Console Price: $102.47 |
| 20 |
931-10106 |
LH Console Price: $102.47 |
| 21 |
738-04549A |
TORX SHOULDER SCREW 1/4-20 Price: $6.28 |
| 22 |
710-1315 |
Hex Washer Screw, 3/8-16 x 1.25 Price: $3.90 |
| 23 |
726-3045A |
Button Plug Price: $4.09 |
