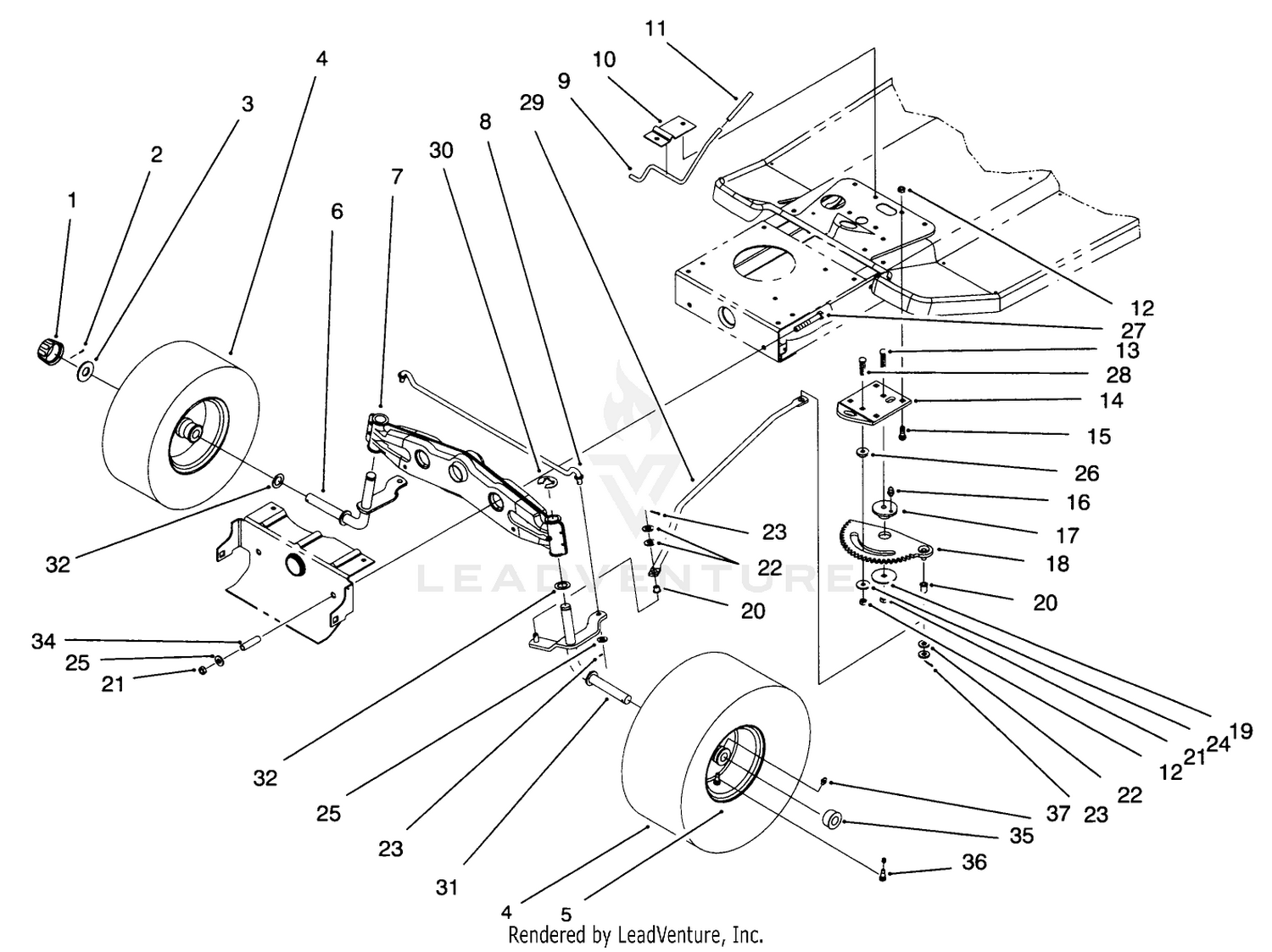

| Ref | Part Number | Description |
|---|
| 1 |
61-9780 |
CAP-HUB Price: $7.29 |
| 2 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 3 |
28-2480 |
WASHER-PLAIN Price: $3.99 |
| 4 |
88-4060 |
TIRE 13 X 5.00 X 6 Price: $56.86 |
| 5 |
88-4360 |
RIM ASM Price: $122.18 |
| 6 |
92-7889-03 |
RH SPINDLE ASM This part replaces 92-7889. Price: $83.63 |
| 7 |
94-1962-03 |
FRONT AXLE ASM This part replaces 94-1962. Price: $164.80 |
| 8 |
88-5380 |
TIE ROD-STEERING Price: $33.29 |
| 9 |
88-5510 |
ROD-BRAKE, PARKING Price: $12.06 |
| 10 |
88-5520-03 |
BRACKET-PARKING BRAKE This part replaces 88-5520. Price: $5.88 |
| 11 |
88-0890 |
GRIP-BRAKE, PARKING Price: $3.06 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
3231-4 |
SCREW-CARR Price: $3.59 |
| 14 |
88-5130-03 |
BRACKET-RACK, STEERING This part replaces 88-5130. Price: $31.57 |
| 15 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 16 |
302-26 |
FITTING-GREASE Price: $5.79 |
| 17 |
88-4670 |
BUSHING-ECCENTRIC Price: $14.34 |
| 18 |
88-5200 |
RACK-STEERING Price: $52.83 |
| 19 |
111419 |
WASHER-BEARING Price: $29.40 |
| 20 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 21 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 22 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 23 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 24 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 25 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
88-5010 |
SPACER-RACK, STEERING Price: $1.99 |
| 27 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 28 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 29 |
88-4830 |
LINK-DRAG Price: $37.50 |
| 30 |
32151-48 |
E-RING Price: $1.41 |
| 31 |
92-7890-03 |
LH SPINDLE ASM This part replaces 92-7890. Price: $113.26 |
| 32 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 34 |
88-5470 |
SPACER Price: $12.99 |
| 35 |
110513 |
BEARING-WHEEL This part replaces 88-4400. Price: $20.99 |
| 36 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 37 |
302-5 |
FITTING-GREASE Price: $0.59 |
