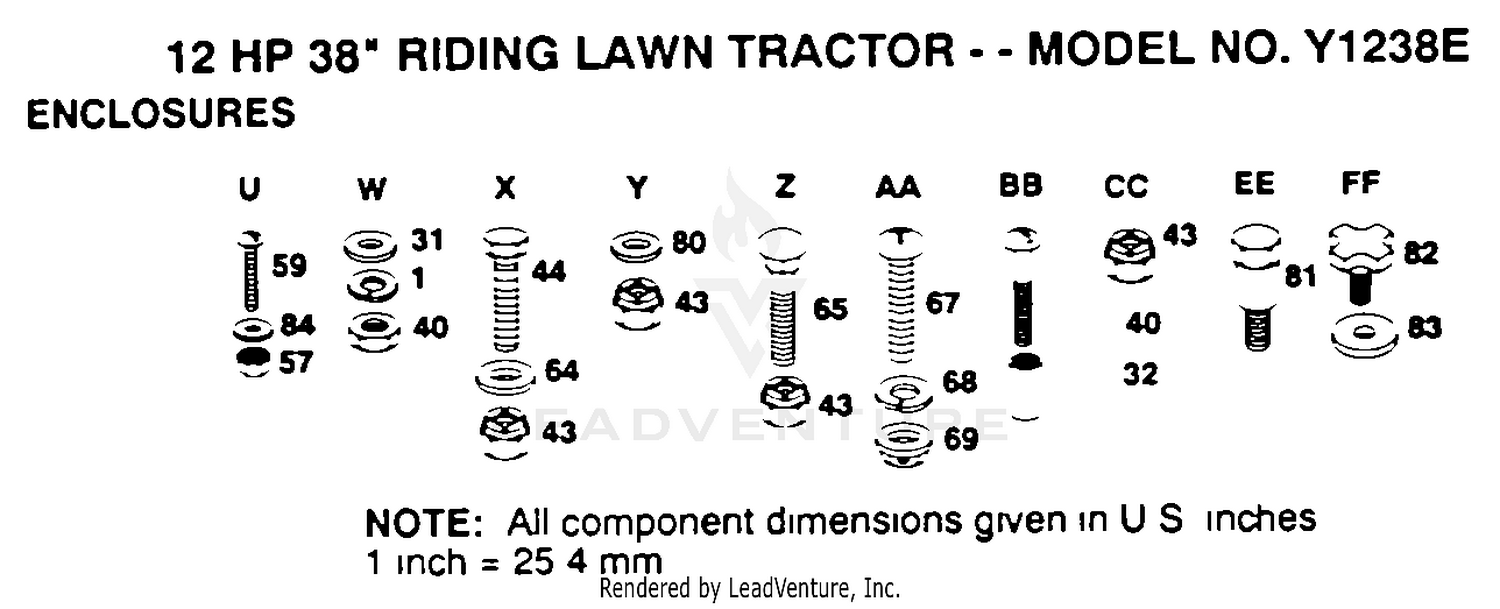

| Ref | Part Number | Description |
|---|
| 1 |
10040400 |
LOCKWASHER Price: Call Us |
| 1 |
108-2017-03 |
PLATE-PANEL, CONTROL Price: $54.58 |
| 2 |
108-2018 |
DECAL-PANEL, CONTROL Price: $36.89 |
| 3 |
3256-77 |
WASHER-FLAT Price: $1.60 |
| 4 |
9601404 |
SCREW-HEX, MACHINE Price: $1.28 |
| 5 |
100-8070 |
LAMP-WARNING Price: $38.50 |
| 6 |
108-6581 |
COVER ASM Price: $97.98 |
| 7 |
108-2024 |
HINGE Price: $54.81 |
| 8 |
32149-8 |
NUT-KEPS Price: $0.88 |
| 9 |
100-8071 |
LAMP-WARNING Price: $38.50 |
| 10 |
93-9999 |
SWITCH-PTO Price: $42.99 |
| 11 |
161-7350 |
IGNITION SWITCH ASM This part replaces 106-5269. Price: $56.32 |
| 16 |
98-9321 |
RING-KEY Price: $1.80 |
| 17 |
108-8657 |
HARNESS-WIRE, SEAT Price: $19.96 |
| 18 |
108-2013 |
PAD-RUBBER Price: $8.15 |
| 19 |
108-6580 |
SEAT PLATE ASM Price: $230.31 |
| 20 |
108-6596 |
FUEL TANK ASM Price: $921.72 |
| 21 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 22 |
233-70 |
KNOB-STAR, THREE Price: $22.14 |
| 23 |
108-2027-03 |
COVER-BYPASS Price: $16.62 |
| 24 |
240-5 |
GROMMET Price: $13.66 |
| 25 |
105-2511 |
DECAL-INSTRUCTIONS, STARTING Price: $49.24 |
| 26 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 27 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 28 |
2412-133 |
CLAMP-R Price: $3.19 |
| 29 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 30 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 31 |
19091216 |
WASHER PM Price: Call Us |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 32 |
121440X |
BELT GUIDE Price: Call Us |
| 33 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 34 |
32128-20 |
NUT-HF Price: $0.99 |
| 35 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 36 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 37 |
3212-4 |
SCREW-HH Price: $2.73 |
| 38 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 39 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 40 |
120-6555 |
SCREW-THUMB This part replaces 108-8689. Price: $10.99 |
| 40 |
73220400 |
SUB= 50675 Price: Call Us |
| 41 |
321-9 |
SCREW-HH Price: $0.27 |
| 42 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 43 |
108-9688 |
SPACER Price: $5.63 |
| 43 |
73680600 |
SUB= 73690600 Price: Call Us |
| 44 |
74760616 |
BOLT Price: Call Us |
| 57 |
73510500 |
NUT Price: Call Us |
| 59 |
74180512 |
SCREW Price: Call Us |
| 64 |
19132012 |
WASHER Price: Call Us |
| 65 |
72110606 |
BOLT Price: Call Us |
| 67 |
74191008 |
SCREW Price: Call Us |
| 68 |
10071000 |
LOCKWASHER Price: Call Us |
| 69 |
2029J |
WELDNUT Price: Call Us |
| 80 |
19131614 |
WASHER Price: Call Us |
| 83 |
19171912 |
WASHER Price: Call Us |
| 84 |
19111116 |
WASHER Price: Call Us |
| 101892X |
DECAL |
T Price: Call Us 101892X |
| 120822X |
DECAL |
Price: Call Us 120822X |
| 123965X |
DECAL |
HOOD LH Price: Call Us 123965X |
| 123966X |
NLA |
Price: Call Us 123966X |
| 124051X |
DECAL.HOOD.LOGO. |
Price: Call Us 124051X |
| 124580X |
NLA |
Price: Call Us 124580X |
