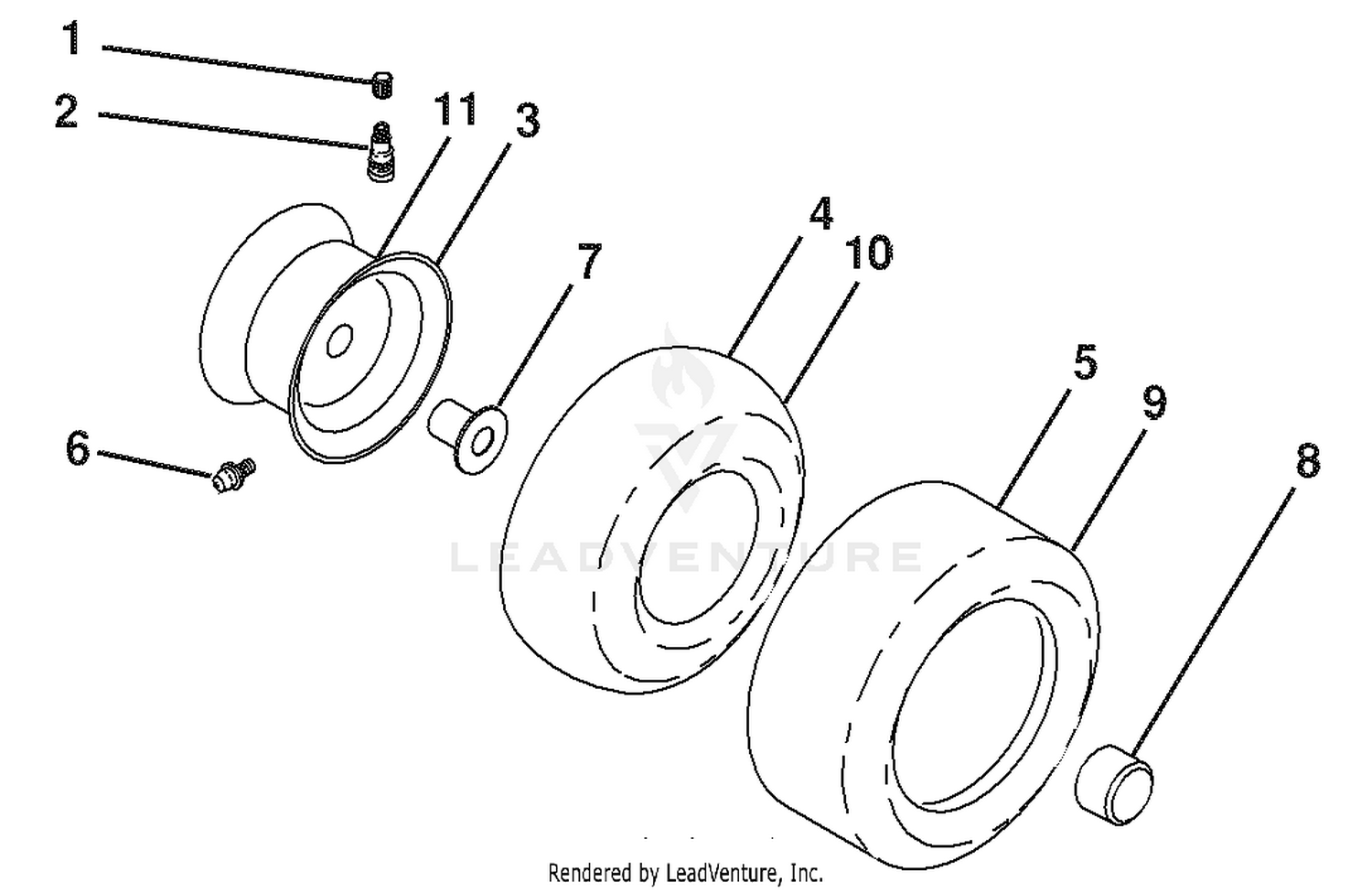

| Ref | Part Number | Description |
|---|
| 1 |
322-2 |
SCREW-HH Price: $0.69 |
| 1 |
532059192 |
VALVE CAP Price: $4.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
532065139 |
VALVE STEM LT Price: $5.99 |
| 3 |
532106732 |
RIM.ASM.6X4.5.FRONT.SILVER This part replaces 532138336. Price: $79.99 |
| 3 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 4 |
2412-133 |
CLAMP-R Price: $3.19 |
| 5 |
104-4620 |
SEAT This part replaces 75-9190. Price: $273.15 |
| 5 |
532122073 |
TIRE.15X6-6.TURF.SAVER.FRONT This part replaces 532106222. Price: $59.99 |
| 6 |
51-0790 |
ADJUSTER-SEAT, LH Price: $127.92 |
| 7 |
83-1270 |
SEAT SUPPORT ASM Price: $350.78 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 8 |
532104757 |
CAP.HUB.FRONT.LT.BLACK This part replaces 532175039. Price: $3.99 |
| 9 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 9 |
532138468 |
TIRE.20X8-8.TURF.SAVER Price: $99.99 |
| 10 |
68-5100 |
ROD-SEAT, PROP Price: $32.13 |
| 11 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 11 |
532106108 |
RIM.ASM.8X7.REAR.SILVER This part replaces 532138337. Price: $99.99 |
| 12 |
68-5310 |
CLIP-ROD, PROP Price: $6.35 |
| 13 |
321-3 |
SCREW-HH Price: $0.28 |
| 14 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 15 |
3284-3 |
PIN-GROOVED Price: $2.24 |
| 16 |
51-0350 |
PIN-SPRING, SEAT Price: $11.90 |
| 17 |
3-6685 |
SPRING Price: $10.99 |
| 18 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 19 |
237-30 |
O-RING Price: $2.50 |
| 20 |
43-8610 |
GUIDE Price: $23.35 |
| 21 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 22 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 23 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 24 |
237-7 |
O-RING Price: $8.82 |
| 25 |
218-461 |
NUT-HH Price: $2.50 |
| 26 |
43-8870 |
BOOT-SWITCH Price: $47.92 |
| 27 |
49-5880 |
SHAFT-SUPPORT, SEAT Price: $17.88 |
| 28 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 29 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 30 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
51-0780 |
SLIDER-SEAT Price: $116.02 |
| 32 |
83-1840-01 |
COVER-VALVE, RH This part replaces 83-1840. Price: $27.61 |
| 35 |
75-9720 |
SEAT CUSHION Price: $375.63 |
| 36 |
351-81 |
DISCONTINUED Price: Call Us |
| 37 |
75-9810 |
DISCONTINUED Price: Call Us |
| 38 |
351-79 |
CLIP Price: $5.69 |
| 39 |
351-80 |
CLIP Price: $8.87 |
| 40 |
351-78 |
EDGING Price: $60.98 |
