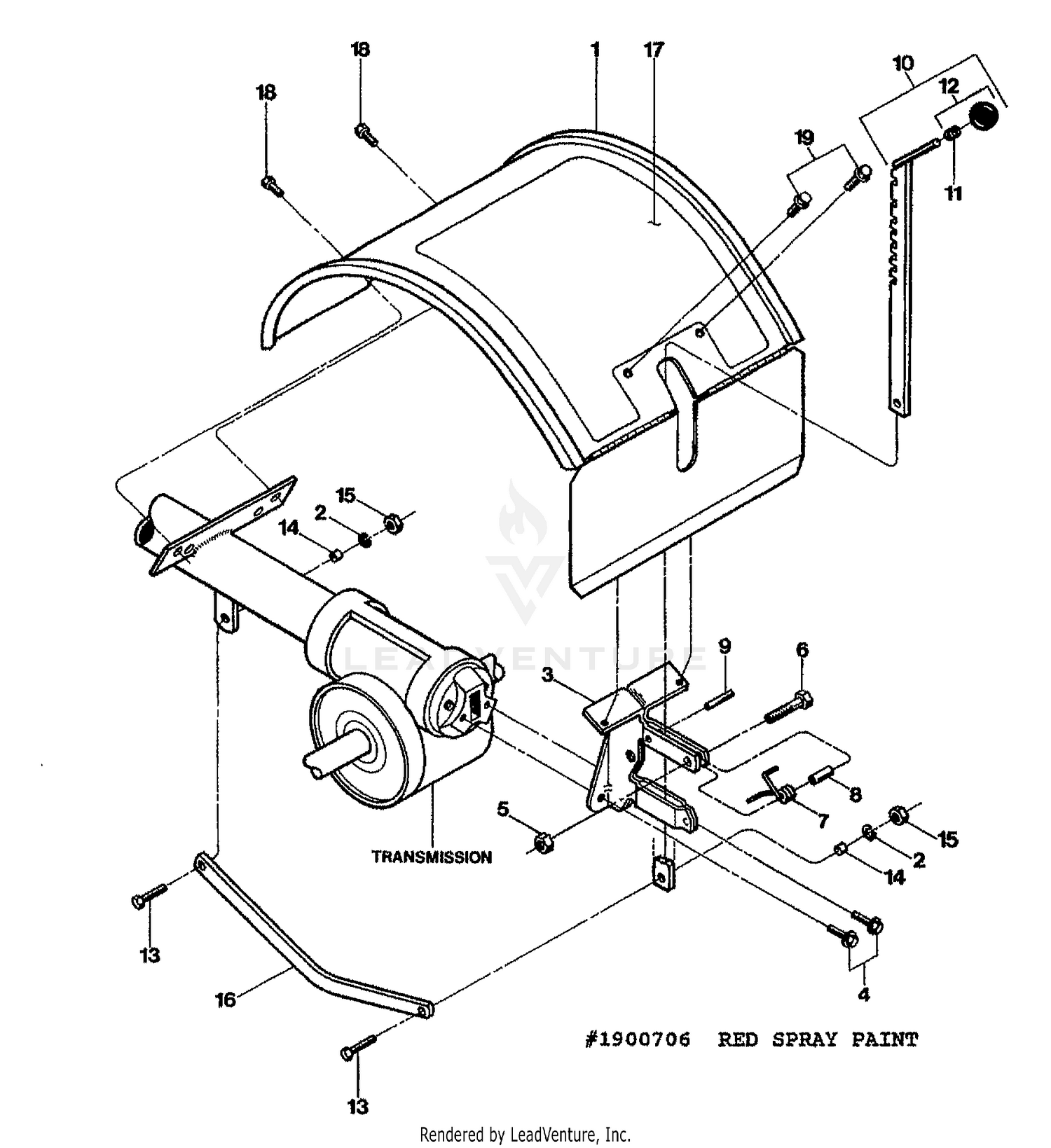

| Ref | Part Number | Description |
|---|
| 1 |
686-04078-0638 |
TINE SHIELD ASSEMBLY (MTD RED) Not Available This part replaces 20861. Price: |
| 2 |
686-04078-0638 |
TINE SHIELD ASSEMBLY (MTD RED) Not Available This part replaces 1904568. Price: |
| 2 |
9913 |
WASHER-LK .375 @ DEPL Price: $1.89 |
| 3 |
GW-2527 |
Bracket-Hood & Depth Regulator This part replaces 2527. Price: $139.01 |
| 4 |
90038 |
SCR-HFLK 5/16-18X.62 G5ZP Price: Call Us |
| 5 |
9811 |
NUT-LK 1/4-20 Price: Call Us |
| 6 |
9734 |
SCR-HH 1/4-20X1.0 Price: Call Us |
| 7 |
732-04320 |
Torsion Spring This part replaces 9384. Price: $3.85 |
| 8 |
9438 |
SPACER-.250X.343X.375 Price: Call Us |
| 9 |
715-0108 |
Pin, Sprg, 1/4 Dia x 1.00 This part replaces 9308. Price: $4.38 |
| 10 |
1900864 |
Depth Regulator This part replaces 1117A. Price: $75.79 |
| 11 |
GW-9120 |
RING- retaining (tolerance ring) This part replaces 9120. Price: $5.94 |
| 12 |
GW-9119 |
KNOB -handlebar height adjustment This part replaces 9119. Price: $10.22 |
| 13 |
9712 |
SCR-HH 3/8-16X1.25 Price: Call Us |
| 14 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces 1113-1. Price: $4.53 |
| 15 |
9802 |
NUT-HEX 3/8-16 ZP Price: Call Us |
| 16 |
1916185001 |
DRAG BAR Not Available This part replaces 20775. Price: |
| 17 |
1904545 |
DECAL-TINE HOOD Not Available Price: |
| 17 |
777S30649 |
Decal, operating instructions This part replaces 20925. Price: $23.84 |
| 18 |
710-0607 |
SCREW 5/16-18 x .500 This part replaces 9553. Price: $6.06 |
| 19 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 9552. Price: $3.86 |
