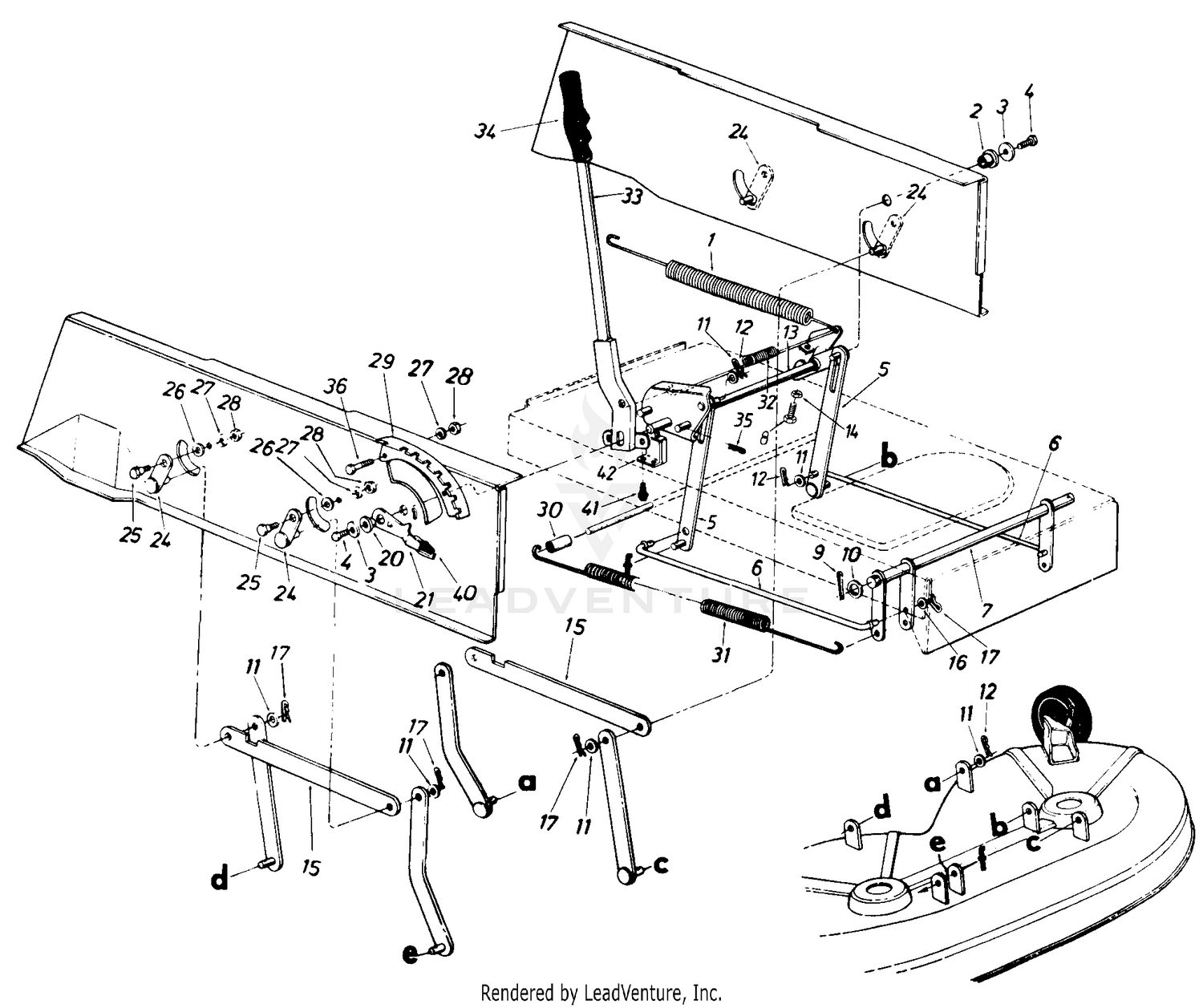

| Ref | Part Number | Description |
|---|
| 1 |
932-0307A |
EXTENSION SPRING Not Available This part replaces 732-0307. Price: |
| 2 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0313. Price: $6.87 |
| 3 |
736-0231 |
Fl-Wash. .344" I.D. x 1.125" Price: $4.02 |
| 4 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 5 |
14802A-0637 |
DECK LIFT LINK (POWDER BLACK) Not Available This part replaces 14802. Price: |
| 6 |
711-0738 |
ROD-STABILIZER Not Available Price: |
| 7 |
16234 |
STABILIZER SHAFT ASS'Y Not Available Price: |
| 8 |
710-0602 |
Hex Tap Scr. 5/16-18 x 1 Price: $4.05 |
| 9 |
714-0470 |
Cotter Pin 1/8" Dia. x 11/4" Price: $3.90 |
| 10 |
736-0156 |
Fl-Wash. .635" I.D. x 1.12 Price: $3.95 |
| 11 |
736-0160 |
Fl-Wash. .531" I.D. x .940" Price: $3.90 |
| 12 |
714-0111 |
Inter. Cotter Pin Price: $4.20 |
| 13 |
17154 |
LIFT SHAFT ASS'Y. Not Available Price: |
| 14 |
712-3007 |
Hex Jam Nut 5/16-18 Thd. Price: $6.06 |
| 15 |
09735 |
CONNECTING ROD Not Available Price: |
| 16 |
736-0300 |
Fl-Wash. .40" I.D. x .88" Price: $3.93 |
| 17 |
714-0104 |
Inter. Cotter Pin-3/8" Rod Price: $3.90 |
| 20 |
748-0176 |
Flange Brg. .630" I.D. Price: $8.54 |
| 21 |
732-0412 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 24 |
09721 |
LINK ASSEMBLY- Not Available Price: |
| 25 |
738-0140 |
Shld. Bolt .437" Dia. x .180" Lg. (5/16-18) Price: $4.93 |
| 26 |
736-0264 |
Fl-Wash. .344" I.D. x .62" Price: $5.99 |
| 27 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 28 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 29 |
16462 |
Index Brkt. Price: Call Us |
| 30 |
711-0425 |
Spacer .523" I.D. x .640" O.D. x 1.95" Lg. Price: Call Us |
| 31 |
732-0530 |
EXTENSION SPRING Not Available Price: |
| 32 |
932-0498 |
EXTENSION SPRING Not Available This part replaces 732-0498. Price: |
| 33 |
16465 |
KIT-DECK LIFT Not Available Price: |
| 35 |
714-0145 |
Intern. Cotter Pin 1/2" Dia. Price: $4.42 |
| 36 |
710-0118 |
Hex Bolt 5/16-18 x .75 Price: $3.76 |
| 40 |
08540 |
KNOB-HGT ADJ-BLACK Not Available Price: |
| 41 |
710-0351 |
Hex AB-Tap Scr. #10 x .50" Price: $3.90 |
