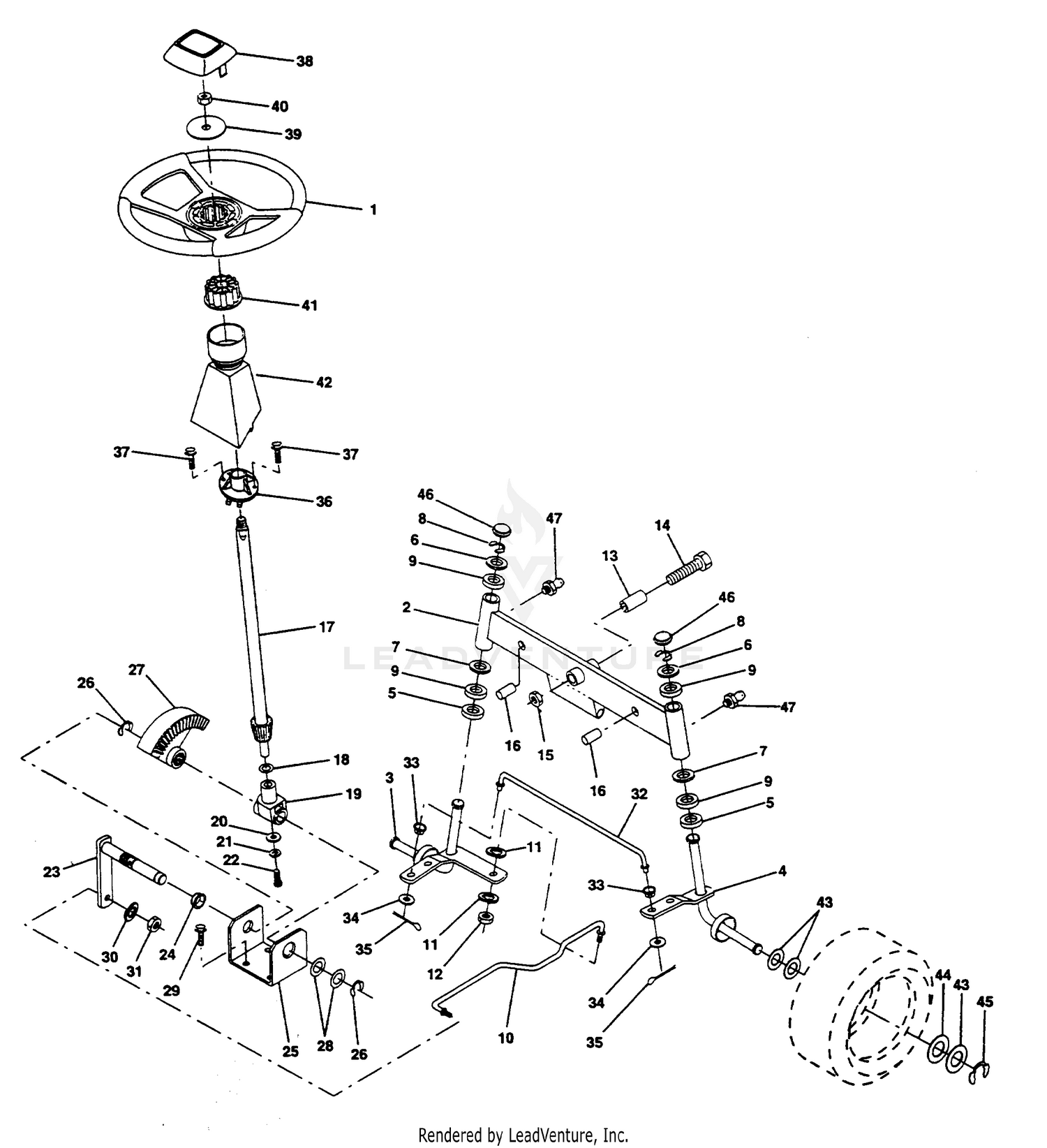

STEERING ASSEMBLY

STEERING ASSEMBLY

Parts (58)

RefPart NumberDescription
1 532150546 STEERING WHEEL NLA This part replaces 532121472. Price: $55.99
2 532142033 Axle Asm Fr LT W/gzks 38/42 This part replaces 532133988. Price: $55.99
3 532135227 Spindle Asm LH Price: $15.39
4 532135228 Spindle Asm RH Price: $12.97
5 532006266 WASHER THRUST This part replaces 532124931. Price: $5.99
6 532121748 Washer 25/32 X 1-5/8 X 16 Ga Price: $1.99
7 819272016 Washer 27/32 X 1-1/4 X 16 Ga Price: $2.99
8 812000029 Ring Klip #t5304-75 Price: $1.99
9 532003366 BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99
10 532130468 Link Drag Sol Ball Jt 20 064 Price: $45.99
10 98-7520 PAN-OIL Price: $443.57
11 539990118 WASHER.3/8 This part replaces 810040600. Price: $1.49
12 873680600 Nut This part replaces 873610600. Price: $1.99
13 532155134 KIT-AXLE This part replaces 532110438. Price: $13.26
14 874011056 Bolt Hex 5/8-11 Unc X 3-1/2 Price: $4.99
15 873681000 Nut, Crownlock This part replaces 873901000. Price: $3.99
16 532132624 Pin Axle 5/8 X 1 55/1 54 Lg Price: $2.42
17 532132614 Shaft Asm Strg 5/8 X 15 19 LT Price: Call Us
18 532057079 Washer Thrust 515x 750x 033 Price: $2.99
19 532160395 SUPPORT SHAFT This part replaces 532124035. Price: $6.99
20 108-7053 GASKET-PAN, OIL Price: $51.05
20 819091016 Washer 9/32 x 5/8 x 16 Ga This part replaces 532126684. Price: $2.99
21 810040400 Washer Lock Hvy Helical 1/4 Price: $3.99
22 532165857 SCREW This part replaces 871070410. Price: $2.99
23 532156365 PITMAN SHAFT ASSY This part replaces 532127501. Price: $26.99
24 532109816 Nyliner Snap In Price: $2.99
25 532124036 Bracket Steering Price: $4.99
26 812000029 Ring Klip #t5304-75 Price: $1.99
27 532136874 Gear Sector Price: $45.99
28 532006266 WASHER THRUST This part replaces 532124931. Price: $5.99
29 874780612 Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99
30 110-6194 BOLT-FLANGE This part replaces 98-7522. Price: $3.22
30 539990118 WASHER.3/8 This part replaces 810040600. Price: $1.49
31 873680600 Nut This part replaces 873610600. Price: $1.99
32 532192757 ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $12.99
33 532126847 Bushing Link Drag Blk LR Price: $2.49
34 819131414 Washer Flat 13/32 x 7/8 x 14 Ga. This part replaces 819131416. Price: $3.99
35 876020412 Pin Cotter 1/8 X 3/4 Cad Price: $3.99
36 532132196 Bushing Strg 5/8 Id Dash Price: Call Us
37 817211008 Screw, Hex Wsh. Tap #10-16 x 1/2 This part replaces 817431008. Price: $2.99
38 532150546 STEERING WHEEL NLA This part replaces 532126805. Price: $55.99
39 819133812 Washer 13/32 x 2 3/8 x 12 Ga. This part replaces 819133808. Price: $9.99
40 873680600 Nut This part replaces 532124701. Price: $1.99
40 98-9386 PLUG Price: $8.24
41 532104820 Adaptor Wheel Strg 640/ 635id Price: $9.99
42 532124418 Boot Shaft Steering Blk Price: $3.33
43 532121749 Washer 25/32 X 1 1/4 X 16 Ga Price: $1.99
44 532121748 Washer 25/32 X 1-5/8 X 16 Ga Price: $1.99
45 812000029 Ring Klip #t5304-75 Price: $1.99
46 532121232 Cap Spindle Fr Top Blk Price: $1.99
50 98-7524 GASKET Price: $5.09
60 98-7529 PLUG-DRAIN Price: $16.47
70 98-7528 O RING-COPPER Price: $1.79
80 98-7525 FILTER-SCREEN Price: $37.40
90 98-7526 BOLT Price: $0.80
100 108-7054 O-RING Price: $2.02
110 105-4579 GAUGE-OIL Price: $58.87
120 110-3720 PLUG-GAUGE, OIL This part replaces 100-9169. Price: $18.99
