Home / OPE / Riding Products / 30651, Groundsmaster 3400 4-Wheel Drive Traction Unit, (SN 405093936-999999999) / Engine Mounting Assembly

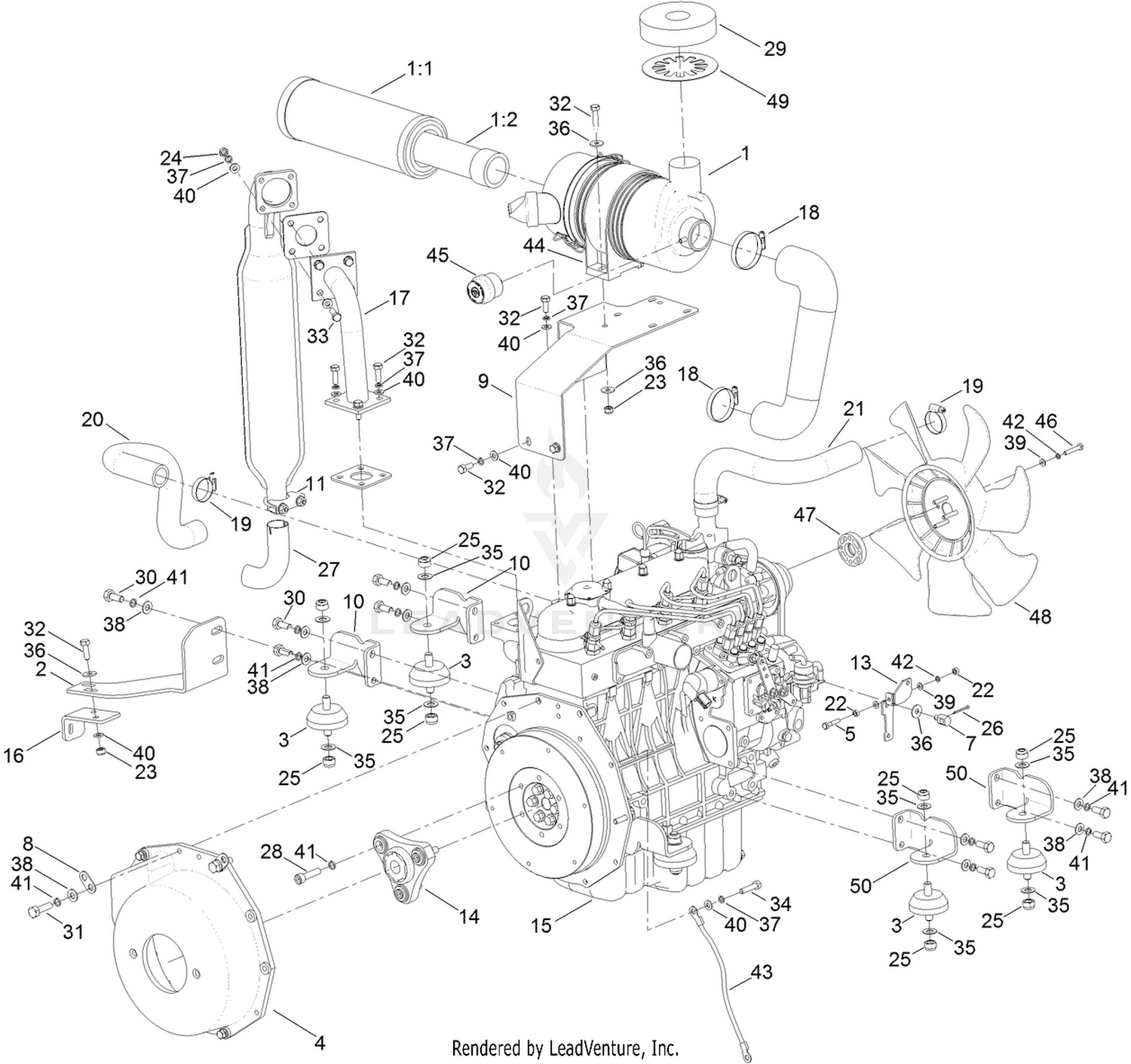

Engine Mounting Assembly

Engine Mounting Assembly

Parts (47)

RefPart NumberDescription
1 111-3805 AIR FILTER ASM Price: $167.60
2 111-9824-03 BRACKET-EXHAUST, LOWER Price: $33.60
3 910816 ISOMOUNT - ENGINE Price: $54.56
4 922851 HOUSING-BELL Price: $469.01
5 09547 BOLT M6 X 30 HEX HEAD Price: $1.40
7 111-3298 BOSS THROTTLE PIVOT Price: $25.34
8 74-01-327 BRACKET LOOM TIE Price: $10.83
9 111-2588-03 BRACKET AIR CLEANER Price: $49.44
10 111-3043-03 BRACKET ENGINE MOUNT Price: $21.30
11 111-9717 CLAMP-EXHAUST Price: $6.30
13 111-3299-03 BRACKET THROTTLE Price: $26.15
14 111-2556 COUPLING Price: $77.40
15 111-1290 ENGINE - KUBOTA V1505-E2B-HAYTER-1 Price: $3,715.61
16 111-9825-03 BRACKET-EXHAUST, LOWER Price: $8.37
17 111-4012 FLANGE EXHAUST Price: $167.78
18 910936 JUBILEE CLIP 45-60MM 102010 Price: $2.97
19 924438 CLAMP-HOSE Price: $3.14
20 111-2567 HOSE RADIATOR BOTTOM Price: $58.04
21 910921 HOSE - UPPER RADIATOR Price: $71.50
22 09437 NUT M6 PLAIN Price: $1.40
23 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
24 ZNH1H000U HEX.NUT M8 Price: $1.40
25 09231 NUT-HEX Price: $3.07
26 70-11-005 SPLIT PIN 3 DIA*30 Price: $1.42
27 940213 PIPE - EXHAUST TAIL Price: $48.27
28 111-3806 SCREW-HSH Price: $2.81
29 111-3555 SEAL AIR INTAKE Price: $7.07
30 50-11-005 SET SCW.M10*1.25P*25LG Price: $3.19
31 111-0597 SETSCREW M10*35*1.25 FINEPITCH Price: $1.41
32 03162 STEEL BOLT Price: $1.39
33 09369 SETSCREW M8 X 30 Price: $1.40
34 ZDH1H035U SETSCREW HEX HD M8X35 Price: $1.36
35 09283 WASHER Price: $1.40
36 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
37 03469 WASHER M8 SC SPRING Price: $1.40
38 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
39 ZWP1F000U PLAIN WASHER M6 Price: $1.40
40 ZWP1H000U WASHER (M8) Price: $1.40
41 09480 WASHER M10 SC SPRING Price: $1.36
42 09474 WASHER M6 SC SPRING Price: $1.34
43 70-09-023 EARTH CABLE Price: $10.21
44 111-3807 BRACKET-MOUNTING, AIR FILTER Price: $29.54
45 953870 INDICATOR FILTER BLOCKAGE Price: $29.54
46 09645 M6 X 35 HEX.HD.SETSCREW Price: $1.40
47 108-2872 COLLAR-FAN This part replaces 104-4247. Price: $21.29
48 110-0966 FAN-COOLING Price: $176.79
49 111-6937-03 WASHER-PAD, INTAKE AIR Price: $2.43
