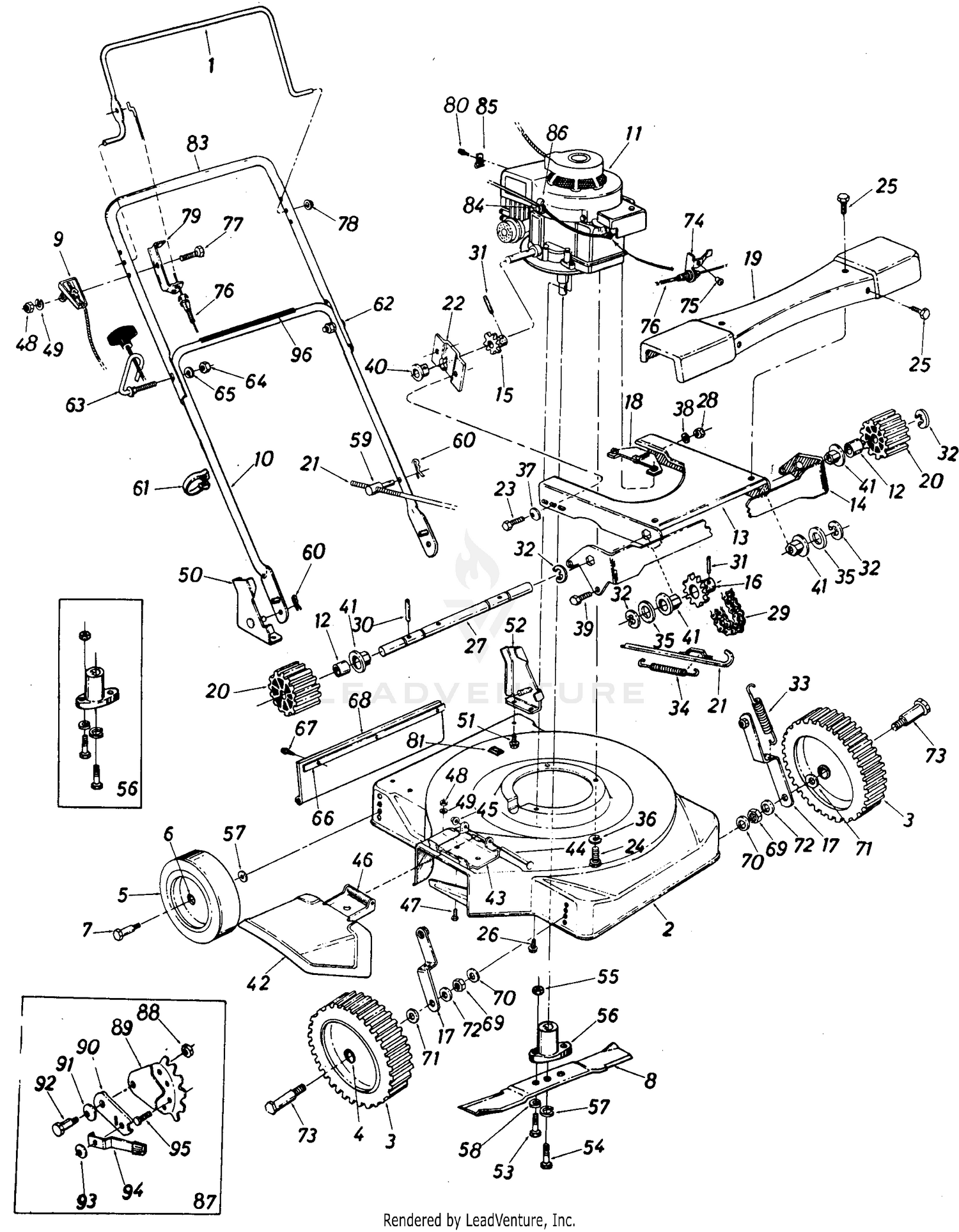

| Ref | Part Number | Description |
|---|
| 1 |
747-0500 |
HANDLE-CONTROL Not Available Price: |
| 2 |
14918 |
DECK ASSEM Not Available Price: |
| 3 |
734-1026 |
ASS'Y. COMP. (GEAR TREAD) Not Available Price: |
| 4 |
941-0180 |
BALL BEARING Not Available This part replaces 741-0180. Price: |
| 5 |
N/A |
Wheel Ass'y.-Rear 8 x 1.75 |
| 6 |
741-0262 |
Flange Brg. (Plastic) Price: $7.26 |
| 9 |
746-0800A |
Throttle Control This part replaces 746-0560. Price: $53.89 |
| 10 |
749-0392 |
LOWER HANDLE Not Available Price: |
| 11 |
N/A |
Engine |
| 12 |
02265 |
Crank Spacer .632" I.D. x .75" O.D. x .442 Price: Call Us |
| 13 |
10370 |
PLATE-PIVO Not Available Price: |
| 14 |
10372 |
Drive Support Price: Call Us |
| 15 |
10377 |
SPROCKET A Not Available Price: |
| 16 |
10378 |
SPROCKET A Not Available Price: |
| 18 |
10381 |
BRACKET AS Not Available Price: |
| 19 |
10913 |
Drive Cover Price: Call Us |
| 20 |
10914 |
PINION-DRI Not Available Price: |
| 21 |
12613 |
ROD ASSEMBLY-C Not Available Price: |
| 22 |
13708 |
SUPPORT-BE Not Available Price: |
| 23 |
710-0352 |
Hex "B"-Tap Scr. 1/4 x .38" Lg. Price: $4.05 |
| 24 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 25 |
710-0599 |
Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 26 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 27 |
711-0435 |
SHAFT Not Available Price: |
| 28 |
712-0116 |
Hex Ins. L-Nut 3/8-24 Thd. Price: $3.95 |
| 30 |
915-0246 |
Roll Pin 3/16 x 1.25" Not Available This part replaces 715-0246. Price: |
| 31 |
715-0247 |
SPRING PIN Not Available Price: |
| 33 |
932-0209 |
Spring This part replaces 732-0209. Price: $7.01 |
| 34 |
732-0433 |
TENSION SPRING Not Available Price: |
| 35 |
736-0116 |
Fl-Wash. .635" I.D. x .93" O.D. x .060 Price: $5.65 |
| 36 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 37 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 38 |
736-0300 |
Fl-Wash. .385" I.D. x .87" O.D. x .06 Price: $3.93 |
| 39 |
738-0147 |
SHOULDER SCREW .500 DIA x .170 Not Available Price: |
| 40 |
748-0142 |
FLANGE BEARING Not Available Price: |
| 41 |
948-0227A |
Hex Flange Bearing Bronze .625" I.D. This part replaces 748-0227. Price: $7.61 |
| 42 |
11679 |
DEFLECTOR Not Available Price: |
| 43 |
11130 |
ADAPTER PLATE Not Available Price: |
| 44 |
711-0555 |
PIVOT PIN Not Available Price: |
| 45 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 46 |
732-0253 |
TORSION SPRING Not Available Price: |
| 47 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 48 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 49 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 50 |
14164 |
Handle Brkt. Ass'y.-R.H. Price: Call Us |
| 51 |
710-0603 |
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. Price: $4.19 |
| 52 |
14165 |
BRACKET-HA Not Available Price: |
| 54 |
710-0331 |
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) Price: $6.01 |
| 55 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 56 |
753-0348 |
Blade Adapter Kit Price: Call Us |
| 57 |
736-0217 |
Bell-Wash. .400" I.D. x .88" O.D. Price: $3.86 |
| 58 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 59 |
711-0570 |
ENGINE FERRULE Not Available Price: |
| 60 |
714-0104 |
Intern. Cot. Pin 5/16" Dia. Price: $3.90 |
| 61 |
726-0192 |
CABLE TIE Not Available Price: |
| 62 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 63 |
710-0842 |
OPE GUIDE BOLT Not Available Price: |
| 64 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 65 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 66 |
14836 |
STRIP-RETA Not Available Price: |
| 67 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 68 |
731-0667 |
FLAP-RR Not Available Price: |
| 70 |
736-0105 |
Bell-Wash. .400" I.D. x .88" O.D. Price: $3.96 |
| 71 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. Price: $3.90 |
| 74 |
14924 |
BRACKET-CA Not Available Price: |
| 75 |
726-0171 |
Pop Rivet .156" Dia. x .379 Price: Call Us |
| 76 |
946-0552 |
Control Cable - 49" This part replaces 746-0552. Price: $38.32 |
| 77 |
710-0106 |
Hex Bolt 1/4-20 x 1.25" Lg.* Price: $3.66 |
| 78 |
726-0135 |
Cap Speed Nut 5/16" Rod Price: $5.94 |
| 79 |
16201 |
BRACKET-CA Not Available Price: |
| 80 |
710-0227 |
Hex Wash. Hd. Self-Tap Scr. #8 x .38" Lg. Price: $3.90 |
| 81 |
731-0564 |
PLUG Not Available Price: |
| 83 |
749-0536 |
UPPER HANDLE Not Available Price: |
| 84 |
910-0429 |
Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20 |
| 85 |
751-0369 |
CLAMP-CONDUIT Not Available Price: |
| 86 |
12894 |
CABLE CLAMP Not Available Price: |
| 93 |
736-0105 |
Belleville Wash. 3/8" I.D. Price: $3.96 |
| 96 |
777-3455 |
LABEL-10/2 Not Available Price: |
