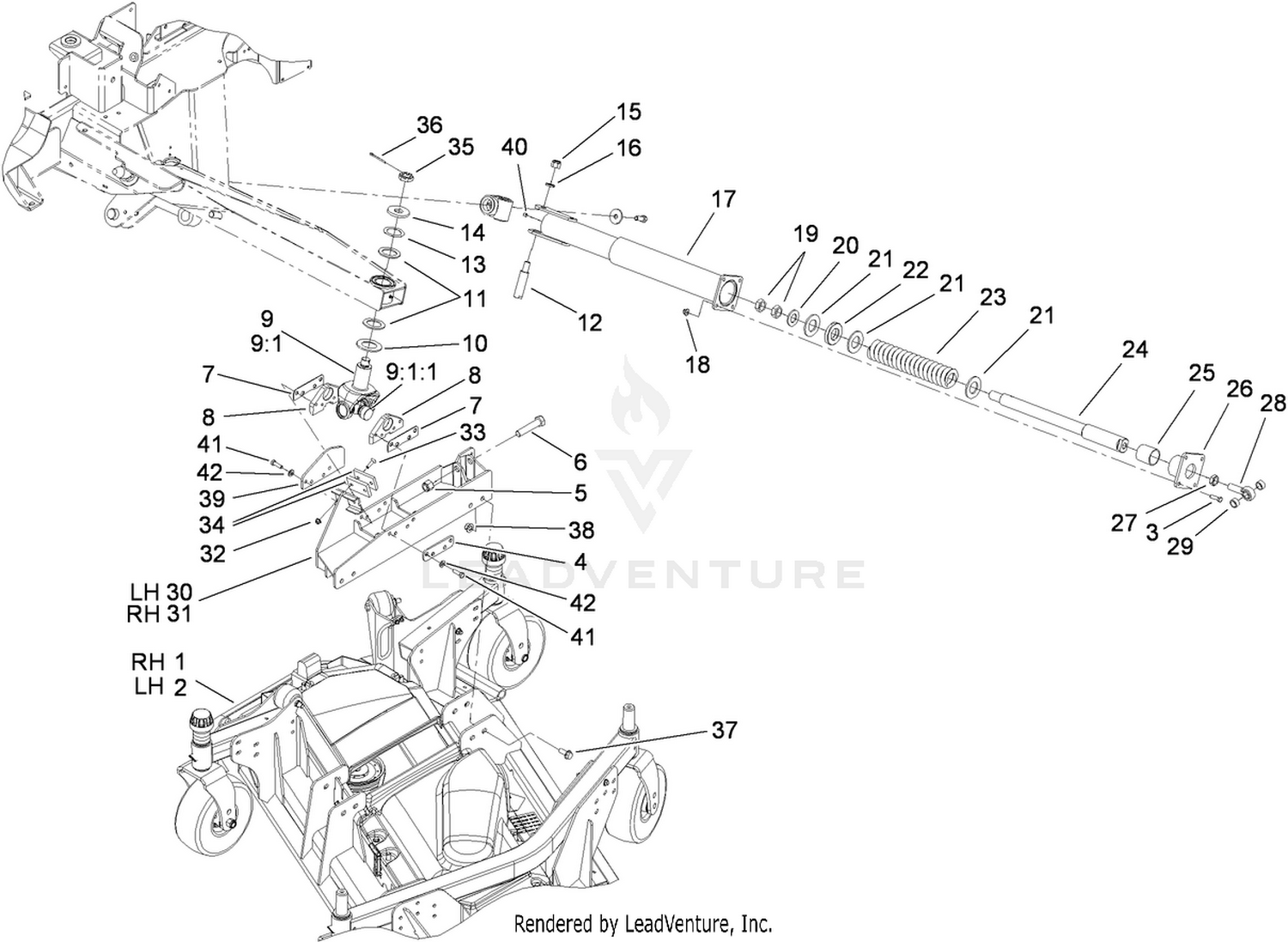

| Ref | Part Number | Description |
|---|
| 3 |
323-7 |
SCREW-HH Price: $0.65 |
| 4 |
117-9419 |
PLATE-SPACER Price: $12.61 |
| 5 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 6 |
328-5 |
SCREW-HH Price: $3.60 |
| 7 |
104-0731 |
SHIM Price: $4.64 |
| 8 |
115-8870-03 |
MOUNT-BASE Price: $108.66 |
| 9 |
114-5640-03 |
JOINT YOKE ASM Price: $448.74 |
| 10 |
104-0720 |
SPACER Price: $35.75 |
| 11 |
104-0721 |
WASHER-THRUST Price: $4.00 |
| 12 |
104-2281 |
SHAFT-PIVOT Price: $131.91 |
| 13 |
114-5641 |
WASHER-THRUST Price: $12.21 |
| 14 |
104-0719 |
WASHER-HARDENED Price: $9.34 |
| 15 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 16 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 17 |
137-5596 |
ARM-IMPACT, REAR This part replaces 112-7330-03. Price: $272.93 |
| 18 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 19 |
3220-9 |
NUT-JAM Price: $11.71 |
| 20 |
3256-62 |
WASHER-FLAT Price: $0.75 |
| 21 |
114-5986 |
WASHER-PLAIN Price: $18.02 |
| 22 |
114-5992 |
BEARING-PLASTIC Price: $53.92 |
| 23 |
114-5993 |
SPRING-COMPRESSION Price: $264.02 |
| 24 |
117-9404 |
SHAFT-SPRING Price: $293.95 |
| 25 |
114-5989 |
BUSHING-PLAIN Price: $11.20 |
| 26 |
114-5677-03 |
HOUSING Price: $199.61 |
| 27 |
3220-7 |
NUT-JAM Price: $4.09 |
| 28 |
105-2806 |
END-ROD Price: $98.92 |
| 29 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 30 |
136-0060 |
DECK CONNECTION KIT This part replaces 114-0925-01. Price: $1,434.92 |
| 31 |
136-0060 |
DECK CONNECTION KIT This part replaces 114-0926-01. Price: $1,434.92 |
| 32 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 33 |
32108-103 |
SCREW-FH Price: $0.68 |
| 34 |
69-9290 |
PAD-BUMPER Price: $9.52 |
| 35 |
99-3139 |
NUT Price: $16.11 |
| 36 |
3272-25 |
PIN-COTTER Price: $0.89 |
| 37 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 38 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 39 |
119-7700 |
DECK STOP REPLACEMENT KIT This part replaces 117-5498. Price: $169.05 |
| 40 |
285-17 |
PLUG-PIPE Price: $2.59 |
