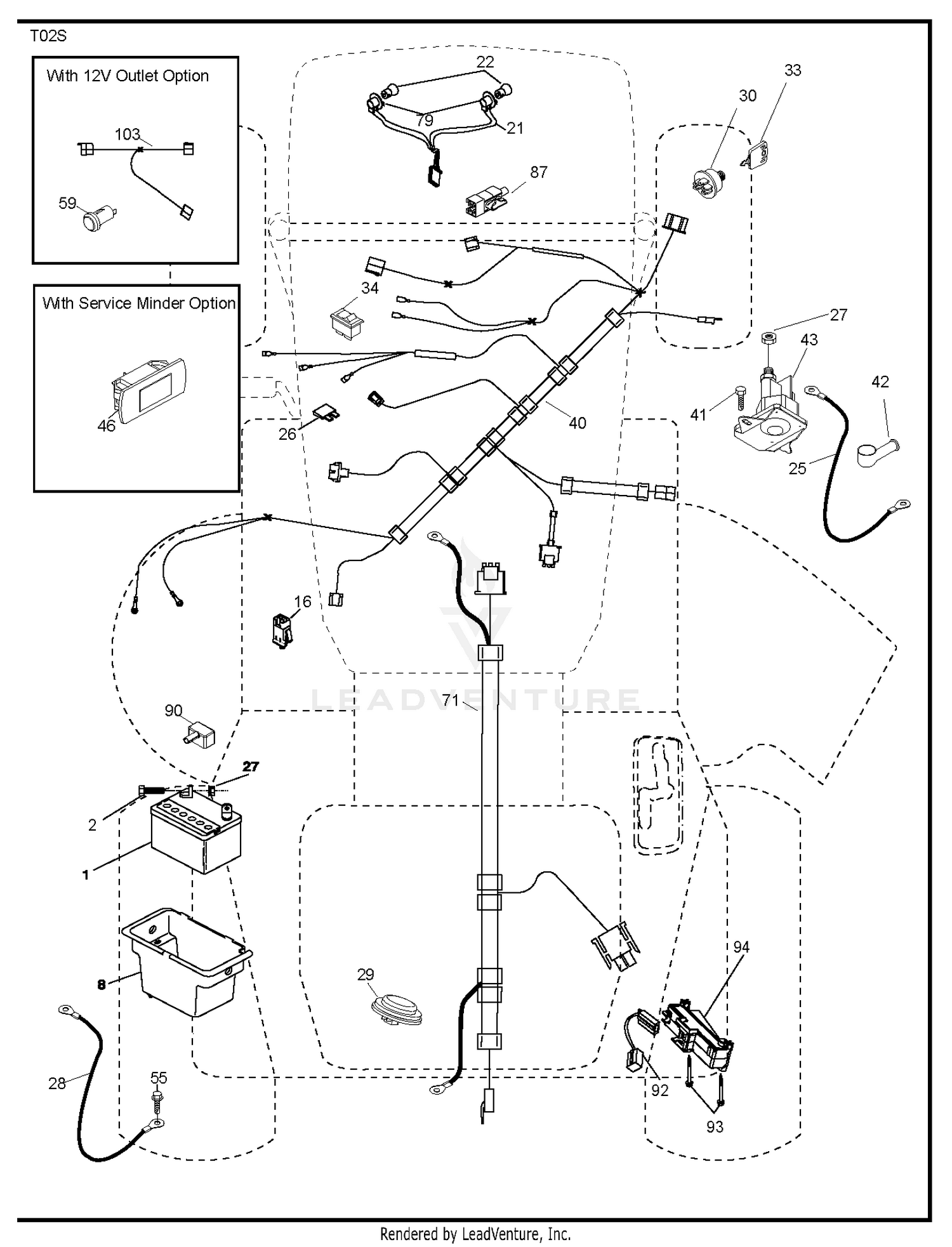

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 1 |
98-7485 |
CRANKSHAFT-COMPLETE Price: $2,665.17 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
98-7486 |
PLUG Price: $1.11 |
| 3 |
98-7487 |
PLUG Price: $3.18 |
| 4 |
98-7488 |
PLUG Price: $2.74 |
| 5 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 6 |
98-7490 |
PLUG Price: $0.60 |
| 7 |
98-7500 |
CAP-SEALING Price: $7.89 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 8 |
98-7501 |
CAP-SEALING Price: $4.84 |
| 9 |
98-7502 |
PIN-STRAIGHT Price: $0.24 |
| 10 |
98-7503 |
PIN-STRAIGHT Price: $0.42 |
| 11 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 12 |
98-7505 |
PIN-STRAIGHT Price: $0.66 |
| 13 |
98-7506 |
PIN-PIPE Price: $3.62 |
| 14 |
98-7507 |
PLUG Price: $2.64 |
| 15 |
98-7428 |
GASKET Price: $0.68 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
98-7509 |
O-RING Price: $4.31 |
| 17 |
98-7510 |
COCK-DRAIN Price: $16.83 |
| 18 |
98-7511 |
JOINT-COCK, DRAIN Price: $10.95 |
| 19 |
98-7512 |
OIL PUMP ASM Price: $153.92 |
| 20 |
115-8648 |
GASKET-PUMP, OIL This part replaces 98-7513. Price: $1.95 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 21 |
98-7514 |
BOLT Price: $0.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
98-7699 |
WASHER-SPRING This part replaces 98-7515. Price: $0.44 |
| 23 |
98-7516 |
GEAR-DRIVE, OIL PUMP Price: $82.70 |
| 24 |
98-7517 |
KEY-FEATHER Price: $0.57 |
| 25 |
532412894 |
CABLE.STARTER.6GA.BL/RED.14. Price: $12.99 |
| 25 |
98-7518 |
NUT-FLANGE Price: $1.83 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401098 |
HARNESS IGN. DASH Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532400449 |
HARNESS.IGN.CHASS.TEX.REAR.BAT Price: $32.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532400725. Price: $4.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
