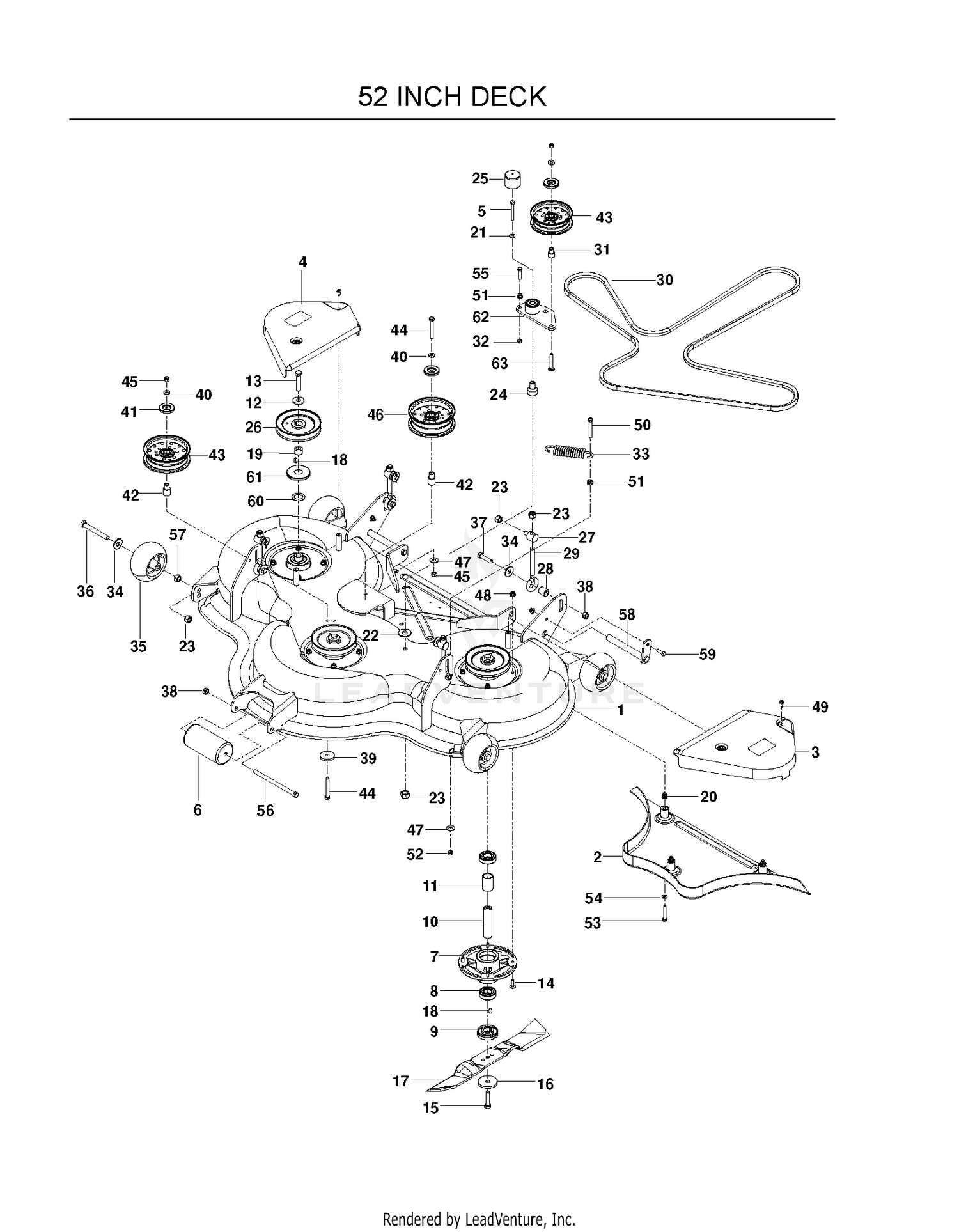

| Ref | Part Number | Description |
|---|
| 1 |
539133056 |
DECK W/DECALS, 52L HUS Price: $2,065.99 |
| 2 |
544166201 |
PLUG Price: $285.99 |
| 3 |
539112508 |
BELT SHIELD LT Price: $19.99 |
| 4 |
539112509 |
BELT SHIELD RT Price: $27.99 |
| 5 |
539101572 |
SCREW, 1/2C X 3 HEX CAP Price: $4.99 |
| 6 |
539002472 |
ROLLER This part replaces 544185401. Price: $77.99 |
| 7 |
535428901 |
BEARING HOUSING Price: $119.99 |
| 8 |
738220519 |
BALL BEARING Price: $6.99 |
| 9 |
539132778 |
BUSHING, BLADE Price: $69.99 |
| 10 |
535428702 |
AXLE Price: $49.99 |
| 11 |
535428801 |
SPACER Price: $7.99 |
| 12 |
539115550 |
WASHER-.533IDX1.37OD Price: $3.99 |
| 13 |
539132479 |
HCS M12 X 1.75 X 60 GR5 ZD Price: $2.99 |
| 14 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 15 |
539132480 |
HCS M12 X 1.75 X 50 GR8.8 ZD Price: $2.99 |
| 16 |
506792302 |
WASHER Price: $12.99 |
| 17 |
586198810 |
BLADE REAR DISCHARGE/MULCH C13 Price: $34.99 |
| 18 |
506533501 |
KEY Price: $3.99 |
| 19 |
539112609 |
KEY RETAINER Price: $8.99 |
| 20 |
506916203 |
BLIND RIVET NUT Price: $7.99 |
| 21 |
596581701 |
Washers This part replaces 539115528. Price: $2.99 |
| 22 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 23 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 24 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 25 |
539114823 |
CAP, VINYL Price: $2.99 |
| 26 |
539112506 |
PULLEY, 52 Price: $99.99 |
| 27 |
539114405 |
SWIVEL Price: $14.99 |
| 28 |
539114404 |
SPACER Price: $6.99 |
| 29 |
539119227 |
BOLT, EYE Price: $14.99 |
| 30 |
539112529 |
BELT, DECK 52 COMBI/60 GRIZZY Price: $109.99 |
| 31 |
539130242 |
BUSHING, IDLER Price: $2.99 |
| 32 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99 |
| 33 |
539103256 |
SPRING Price: $9.99 |
| 34 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 35 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 36 |
539108366 |
HCS 1/2-13 X 4 GR 5 ZD Price: $5.99 |
| 37 |
596438501 |
Bolts This part replaces 539108073. Price: $2.99 |
| 39 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 40 |
522023401 |
WASHER, 3/8 THICK Price: $2.99 |
| 41 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 42 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 43 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 44 |
539102612 |
SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99 |
| 45 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 46 |
539103258 |
IDLER PULLEY (TALL) Price: $44.99 |
| 47 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 48 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 49 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 50 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 51 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 52 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 53 |
539132494 |
HCS M8 X 1.25 X 50 GR8.8 ZD Price: $2.99 |
| 54 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 55 |
539107042 |
HCS 3/8-16 X 1-1/2 Price: $2.99 |
| 56 |
539132470 |
HCS 7/16-14 X 7 GR5 ZD Price: $3.99 |
| 57 |
539990258 |
NUT HEX 1/2 Price: $3.99 |
| 58 |
539132498 |
PIN, STRUT, WELDMENT Price: $109.99 |
| 59 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 60 |
539127099 |
WASHER-1.06IDX1.63ODX.06 Price: $4.99 |
| 61 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 62 |
539130391 |
ARM-IDLER W/BRG Price: $37.99 |
| 63 |
596337801 |
Bolts This part replaces 539128101. Price: $4.99 |
