Home / OPE / Sno-Thros And Brushes / 921 Series Sno-Thro / 921057 (200000 - ) Platinum SHO 28 RapidTrack / Discharge Chute

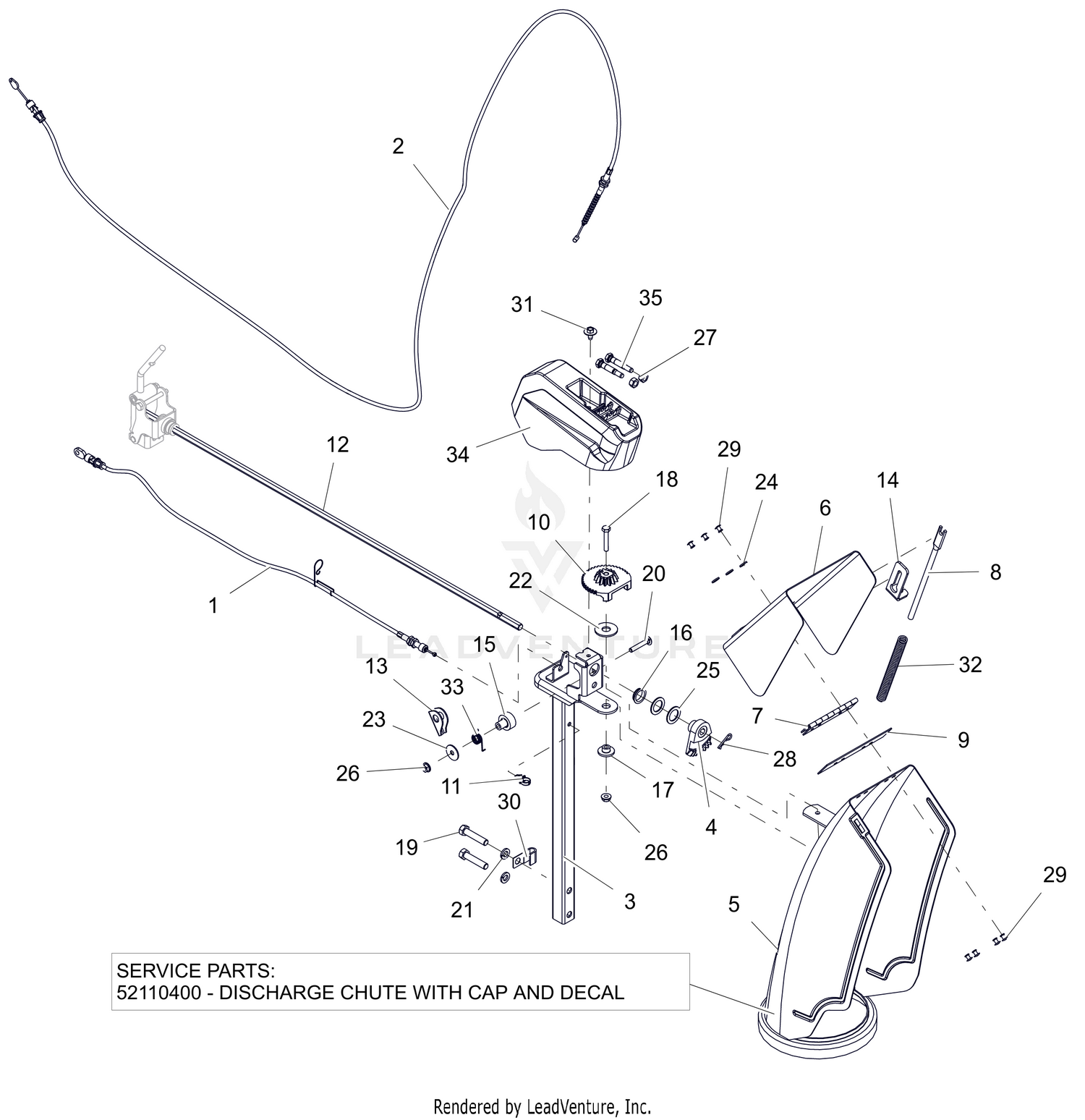

Discharge Chute

Discharge Chute

Parts (34)

RefPart NumberDescription
1 06900615 CABLE, CHUTE LOCK, PRO Price: $38.45
2 06900614 CABLE, DEFLECTOR - DELUXE Price: $49.45
3 03897451 PEDESTAL, CHUTE - QUICK STICK Price: $36.95
4 09478700 GEAR- CHUTE-ACTUATION This part replaces 00184300. Price: $7.45
5 52110400 CHUTE, DISCHARGE W/CAP This part replaces 04753259. Price: $142.95
6 52110100 CAP, LARGE REMOTE W/DECAL Price: $40.95
7 00170100 HINGE Price: $10.45
8 00389000 ROD, DEFLECTOR CAP Price: $13.45
9 00628400 CAP SEAL 5.50 Price: $4.45
10 09478600 GEAR- CHUTE-LOCKING This part replaces 03898700. Price: $12.45
11 04451600 CLIP, CABLE GUIDE Price: $1.95
12 04507700 ROD, HEX - CHUTE ROTATION Price: $22.45
13 05081900 ARM, LOCKING Price: $4.95
14 05108300 BRKT, ANCHOR - CABLE This part replaces 05108359. Price: $3.45
15 05500024 BUSHING, LOCK ARM Price: $3.45
16 05500027 BUSHING, POLYLINER-.75 SNAPIN Price: $1.95
17 05500920 BSHG-FLG .265X.477X.375X1.00 Price: $3.45
18 05901739 BLT, HEX .25-20X1.50 G5 ZCC Price: $1.45
19 05901809 BLT, HEX .38-16X1.75 G5 ZCC Price: $1.45
20 06200331 BLT, RHSN .25-20X1.50 G5 ZCC Price: $1.45
21 06300116 WSHR,LK-REG .375X.094 ZCC Price: $0.95
22 06400904 WSHR-FLT-NYL .515X1.375X.093 Price: $2.45
23 06401020 WSHR,FLT .281X1.000X.063 ZCC Price: $0.95
24 06401029 WSHR,FLT .196X.500X.066 ZCC Price: $1.95
25 06401119 WSHR, FLT .754X1.125X.062 ZCC Price: $0.95
26 06500821 NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45
27 06500826 NUT,LK-CTR .31-18 GA ZCC Price: $1.45
28 06700222 PIN, HAIR #213 .08X1.19 ZCC Price: $0.45
29 06800140 RVT, POP .1875 ZCC Price: $0.95
30 06909400 J-CLAMP Price: $3.45
31 07400138 SCR, TAP .25-20X.50 LG HWH ZCC Price: $1.45
32 08300013 SG-COMP .08X.40X6.50 14#/IN Price: $8.45
33 08300014 SG-TORS Price: $0.95
34 09382200 COVER, CHUTE PEDESTAL Price: $10.45
