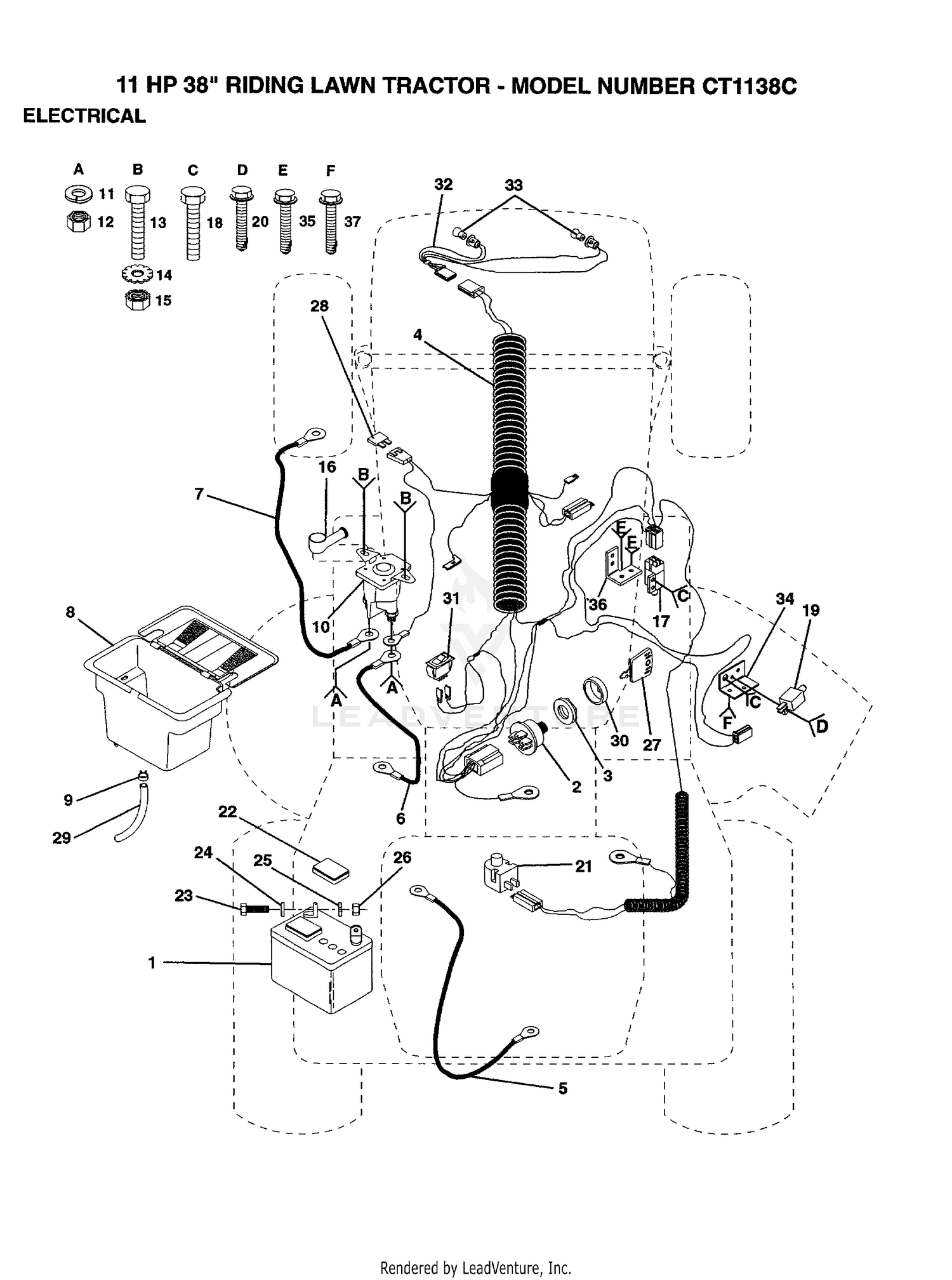

| Ref | Part Number | Description |
|---|
| 1 |
133909 |
SUB= 123899X Price: Call Us |
| 1 |
95-0564 |
TUBE-RH, FRONT Price: $46.46 |
| 2 |
4406R |
SUB= STD365402 Price: Call Us |
| 2 |
95-0559 |
TUBE-RH, REAR Price: $46.46 |
| 3 |
124211X |
NUT IGNITION Price: Call Us |
| 3 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 4 |
132017 |
IGN HARNESS Price: Call Us |
| 4 |
75-6200 |
HOSE Price: $66.62 |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 5 |
4207J |
CABLE T Price: Call Us |
| 6 |
132202 |
SUB= 146147 Price: Call Us |
| 6 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 7 |
83-7000 |
HYD CYLINDER ASM Price: $363.59 |
| 8 |
129965 |
SUB= 156417 Price: Call Us |
| 8 |
18-7310 |
PIN-CYLINDER Price: $32.29 |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 9 |
95-0560 |
TUBE-LH, FRONT Price: $109.53 |
| 10 |
109081X |
SUB= 146154 Price: Call Us |
| 10 |
95-0567 |
TUBE-LH, REAR Price: $109.53 |
| 11 |
10090400 |
SUB= 10040400 Price: Call Us |
| 11 |
353-426 |
FITTING-90 DEG Price: $29.88 |
| 12 |
73350400 |
NUT Price: Call Us |
| 12 |
75-9831 |
HYD MOTOR ASM Price: $1,646.04 |
| 13 |
18-7160 |
PIN-CYLINDER Price: $52.01 |
| 13 |
74780408 |
BOLT Price: Call Us |
| 14 |
11050400 |
LOCKWASHER Price: Call Us |
| 14 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 15 |
353-212 |
FITTING-ELBOW, 45 DEG Price: $22.12 |
| 15 |
73510400 |
NUT Price: Call Us |
| 16 |
131563 |
SUB= 154336 Price: Call Us |
| 16 |
75-9840 |
HYD MOTOR ASM Price: $2,000.57 |
| 17 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 17 |
95-0575 |
TUBE-VALVE, SHUTTLE Price: $45.57 |
| 18 |
17021008 |
SCREW Price: Call Us |
| 19 |
104445X |
SWITCH-INTER. GT Price: Call Us |
| 19 |
325-5 |
SCREW-HH Price: $1.20 |
| 20 |
17021008 |
SCREW Price: Call Us |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 21 |
121305X |
SWITCH SEAT Price: Call Us |
| 21 |
69-8930 |
WASHER Price: $0.81 |
| 22 |
69-8960 |
SPACER Price: $5.29 |
| 23 |
240-5 |
GROMMET Price: $13.66 |
| 23 |
74760412 |
BOLT LT Price: Call Us |
| 24 |
116-4367 |
NUT-HEX This part replaces 95-0642. Price: $6.51 |
| 24 |
19091016 |
WASHER Price: Call Us |
| 25 |
10040400 |
LOCKWASHER Price: Call Us |
| 25 |
95-0577 |
FITTING-BULKHEAD Price: $53.24 |
| 26 |
73220400 |
SUB= 50675 Price: Call Us |
| 26 |
95-0568-01 |
BRACKET-BULKHEAD Price: $16.21 |
| 27 |
7552H |
SUB= STD365410 Price: Call Us |
| 27 |
95-0562 |
DISCONTINUED Price: Call Us |
| 28 |
108824X |
FUSE HYT Price: Call Us |
| 28 |
95-0563 |
TUBE-LH Price: $68.75 |
| 29 |
105687X |
SUB= 109238X Price: Call Us |
| 29 |
321-18 |
SCREW-HH Price: $1.89 |
| 30 |
123620X |
SUB= 141226 Price: Call Us |
| 30 |
51-0600 |
HOSE ASM Price: $68.83 |
| 31 |
110712X |
SWITCH LT Price: Call Us |
| 31 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 32 |
110859X |
HARNESS T Price: Call Us |
| 32 |
69-9760 |
COVERPLATE Price: $5.38 |
| 33 |
3296-8 |
NUT-HEX Price: $1.29 |
| 33 |
7662J |
SUB= 4152J Price: Call Us |
| 34 |
130890 |
SWITCH BRACKET Price: Call Us |
| 34 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 35 |
17021008 |
SCREW Price: Call Us |
| 35 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 36 |
108236X |
BRACKET LT Price: Call Us |
