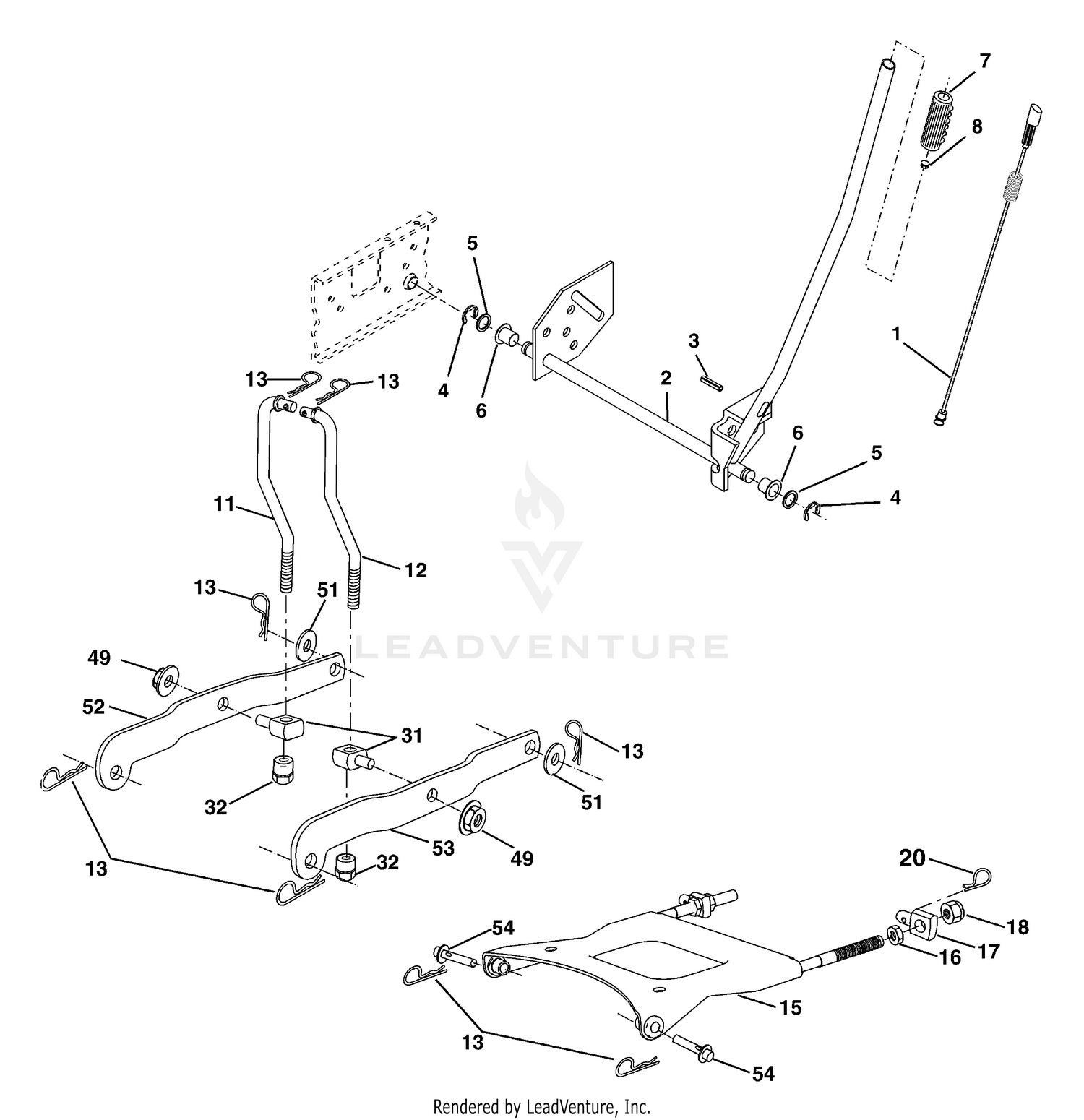

| Ref | Part Number | Description |
|---|
| 1 |
532159460 |
Wire Asm Inner W/plunger 17 32 Price: $8.99 |
| 2 |
532159471 |
Shaft Asm Lift LH Inf Hgt P/L Price: $39.99 |
| 3 |
532105767 |
Pin Groove 1 500 Zinc Price: $2.99 |
| 4 |
812000002 |
E Ring #5133-62 Price: $3.99 |
| 5 |
819211621 |
Washer 21/32 x 1 x 21 Ga. Price: $3.99 |
| 6 |
532120183 |
Bearing Nylon Blk 629 Id Price: $2.99 |
| 7 |
532125631 |
Grip Handle Price: $3.99 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 010 |
98-7693 |
ALTERNATOR ASM Price: $511.95 |
| 11 |
532175370 |
Link Lift LH Price: $9.99 |
| 12 |
532175371 |
Link Lift RH Price: $9.99 |
| 13 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 15 |
532175562 |
Plate Asm Suspension Front Price: $76.99 |
| 16 |
873350800 |
Nut Jam Hex 1/2-13 unc Price: $1.99 |
| 17 |
532175689 |
Trunnion Blk Zinc Price: $2.99 |
| 18 |
539101331 |
NUT.1/2C.NYLOC This part replaces 873800800. Price: $1.99 |
| 020 |
98-7707 |
PULLEY-ALTERNATOR Price: $64.31 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $1.99 |
| 030 |
98-7708 |
NUT Price: $7.76 |
| 31 |
532176205 |
Trunnion Suspension Arm Price: $3.99 |
| 32 |
532175994 |
Nut Lift Link 7/16-20 Price: $3.99 |
| 040 |
98-7709 |
COLLAR Price: $8.79 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49 |
| 050 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 51 |
819171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: $2.99 |
| 52 |
532175378 |
Arm Suspension Rear LH Price: $38.99 |
| 53 |
532175802 |
Arm Suspension Rear RH Price: $68.99 |
| 060 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 070 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 080 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 090 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 140 |
98-7719 |
FRAME-END Price: $88.65 |
| 150 |
98-7720 |
COVER-END Price: $39.58 |
| 160 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
