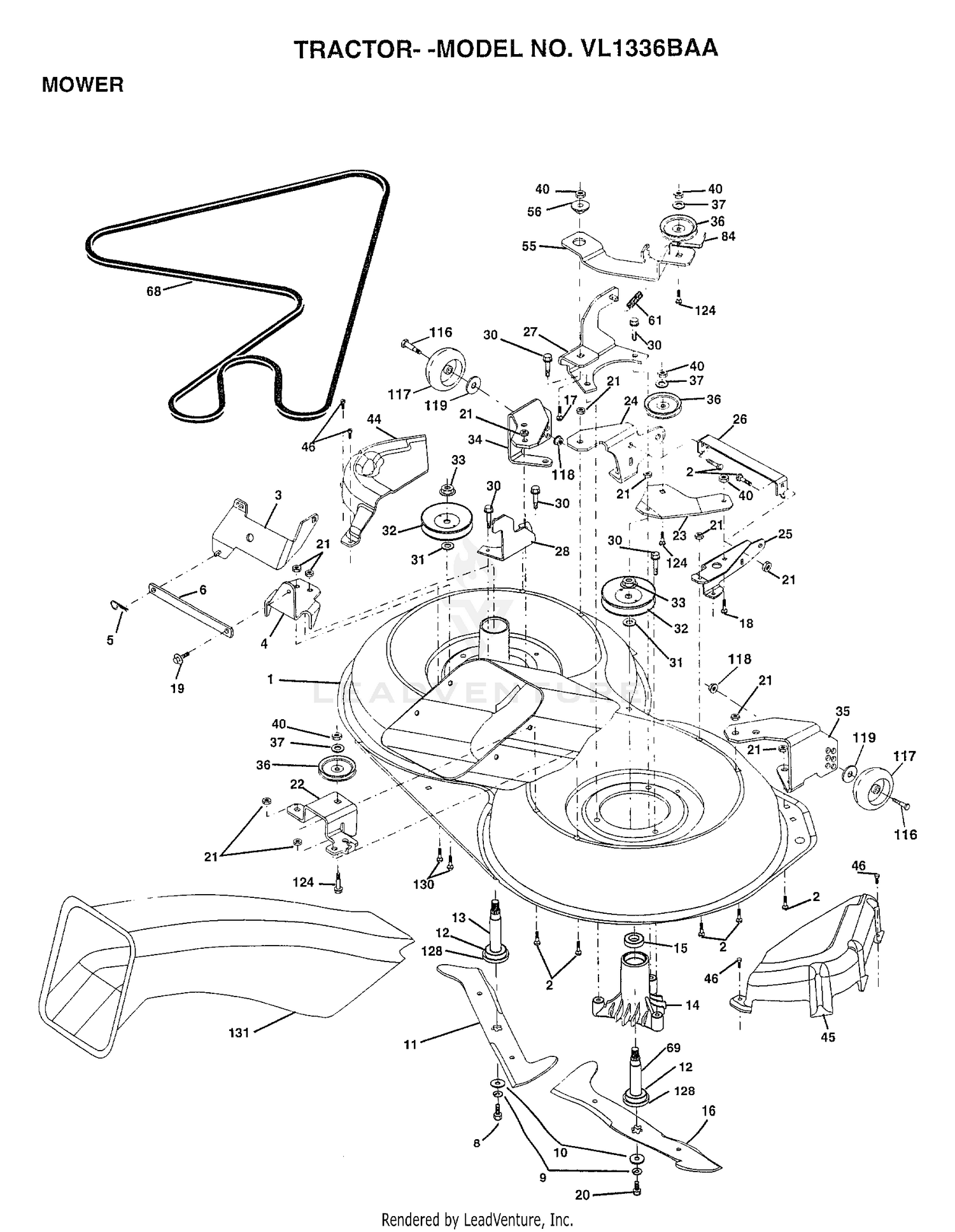

| Ref | Part Number | Description |
|---|
| 1 |
165552 |
HOUSING.ASM.MOWER Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
165569 |
BRKT.ASM.S-BAR.CHASSIS Price: Call Us |
| 4 |
165558 |
BRKT.BAR.SWAY.DECK Price: Call Us |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
165557 |
BAR.SWAY.92.CRD Price: Call Us |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 11 |
165560 |
BLADE.3-1.LH.92.CRD Price: Call Us |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
165561 |
BLADE.3-1.RH.CRD.92 Price: Call Us |
| 17 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 18 |
72110608 |
BOLT D Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 20 |
165484 |
BOLT.3/8-24X1.25 Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
165243 |
BRKT.IDLER.SPRT.CRD Price: Call Us |
| 24 |
165242 |
BRKT.SUSP.LF.92.CRD Price: Call Us |
| 25 |
165244 |
BRKT.SUSP.RF.92.CRD Price: Call Us |
| 26 |
165237 |
BRACE.SUPT.SUSP.FRT.CRD Price: Call Us |
| 27 |
165568 |
BRKT.ASM.SUSP.RR.92.CRD Price: Call Us |
| 28 |
165567 |
BRKT.ASM.SUSP.LR.92.CRD Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
165239 |
BRKT.GUAGE.WHL.LF.92.CRD Price: Call Us |
| 35 |
165238 |
BRKT.GUAGE.WHL.RF.92.CRD Price: Call Us |
| 36 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 44 |
165724 |
COVER.MANDREL.LH.92.CRD Price: Call Us |
| 45 |
165556 |
COVER.MANDREL.RH.92.CRD Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 55 |
165445 |
ARM.IDLER.92.CRD Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 61 |
165945 |
SPRING.TENSION.BELT Price: Call Us |
| 68 |
165555 |
HEX-BELT.92.MWR.105AA Price: Call Us |
| 69 |
165482 |
SHAFT.ASM.W/LWR.BRG.RH.THD Price: Call Us |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 116 |
137644 |
BOLT.SHOULDER Price: Call Us |
| 117 |
133957 |
WHEEL GAGE DONUT Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 124 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 130 |
72110506 |
SUB= 72270506 Price: Call Us |
| 131 |
165661 |
CHUTE.BAGGER.CRD Price: Call Us |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
| 165579 |
MANDREL.ASM.CRD.LH.THREADS |
Price: Call Us 165579 |
